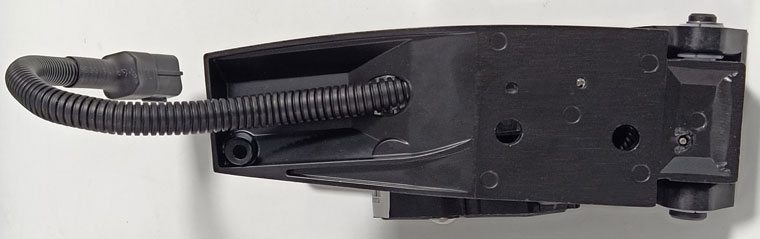

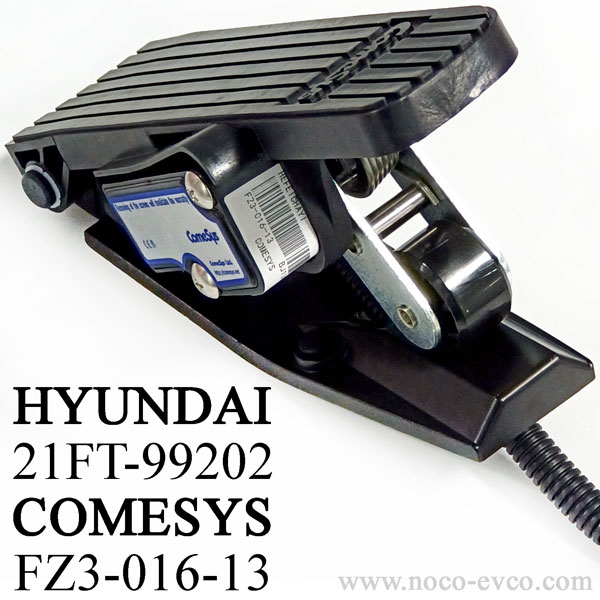

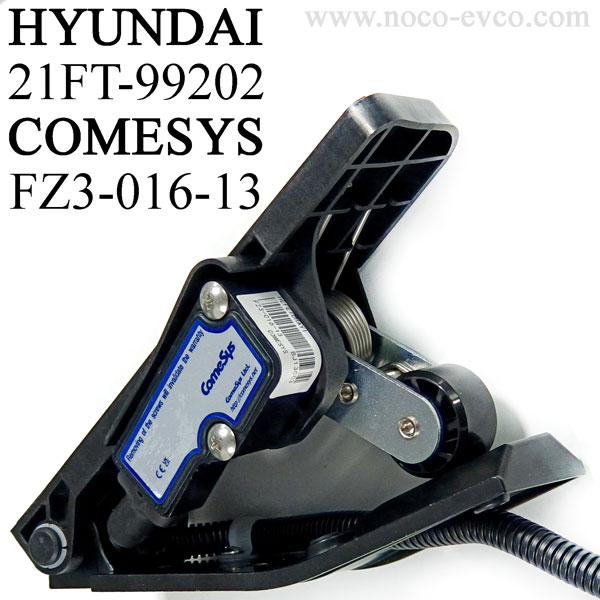

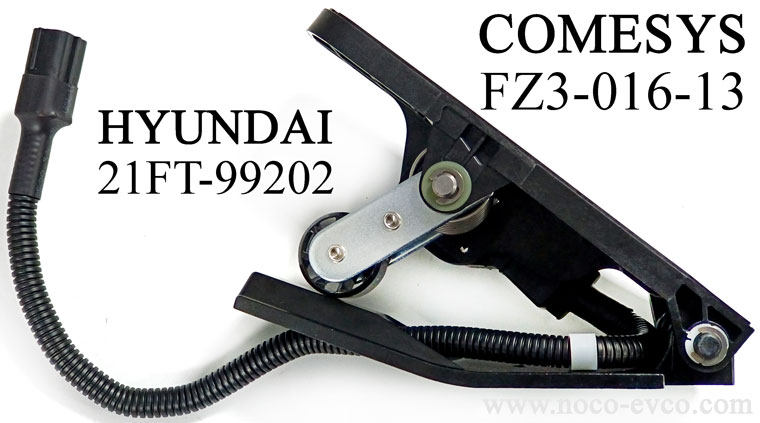

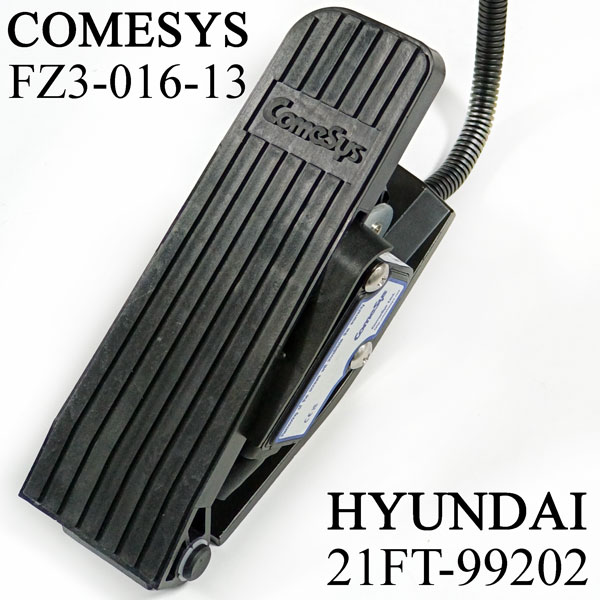

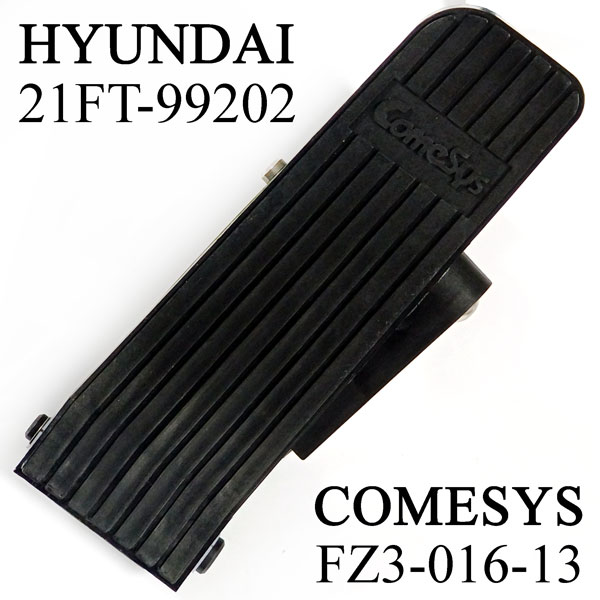

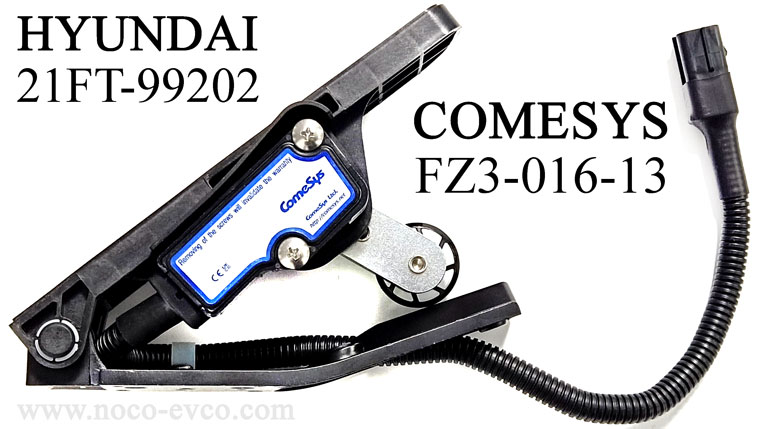

HYUNDAI Forklift Electric Accelerator Assembly

COMESYS FZ3-016-13, HYUNDAI Part Number 21FT-99202

Description:

Designed for HYUNDAI Heavy Industry forklifts and logistic vehicles with Cummins Engines, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by high perfomance stainless steel return springs, the COMESYS Electric Accelerator Assembly model FZ3-016-13 is featured with its compact size and stable output.

Specifications:

• Model: FZ3-016-13
• HYUNDAI part number: 21FT-99202
• Product life: 10,000,000 cycles (full travel sycle)
• Non - Contact Sensing Technology
• End-Break force : 160kgf ± 5kgf will not damage any pedal parts
• Mating connector & installation kit are included
• ESD: tested in accordance with IEC 61000-4-2
• EMS: as per ISO 11452-2 (2004E)

Application:

COMESYS FZ3-016-13 is an OEM product for HYUNDAI Heavy Industry (HHI) forklifts (diesel) & wheel loaders, powered by Cummins Engines.

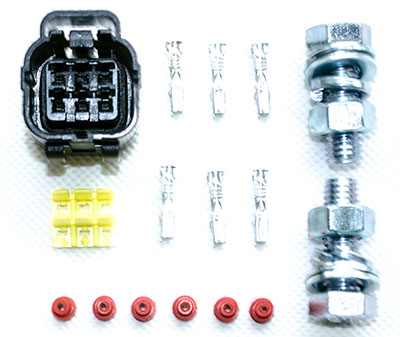

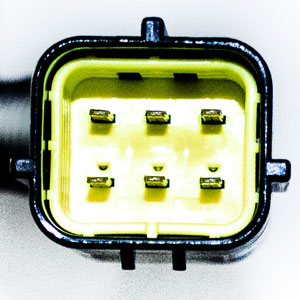

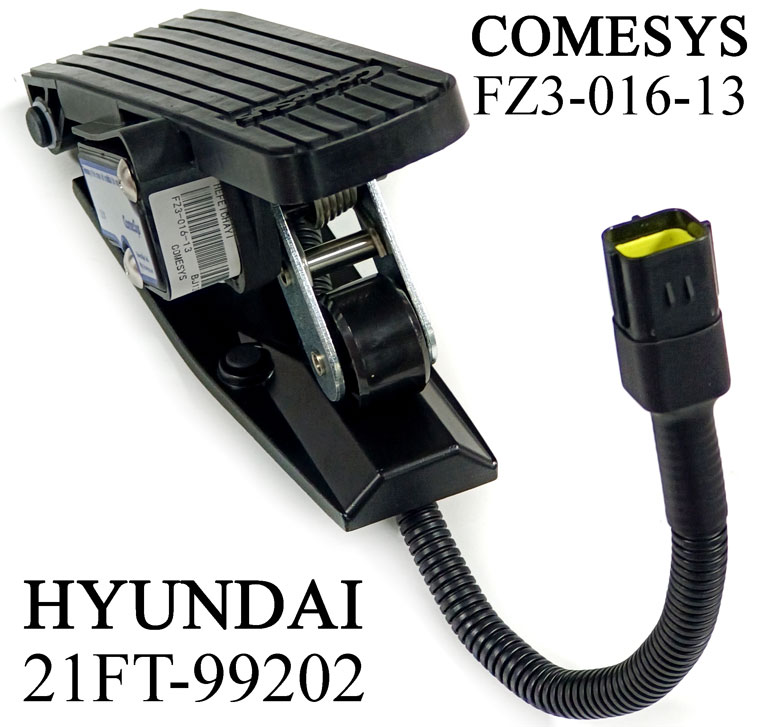

Connector, mating connector & installation kit:

Characteristics:

1. Input Voltage(Vcc) : 5Vdc ± 2%
2. Signal voltage:
   • Signal 1: 1.1±0.15 - 4.2±0.25Vdc
   • Signal 2: 0.55±0.15 - 2.1±0.25Vdc
3. Operation Current(Iop): 8mA (Normal), 10mA (Max) per channel
4. Working temperature.: -40 - 85 °C
5. Storage temperature.: -40 - 105 °C
6. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis

We supply also other COMESYS electric accelerator assemblies for HYUNDAI forklifts, wheel loaders and contruction machines.

• COMESYS FY3-016-13, HYUNDAI part number 21FT-99201
• COMESYS FY7-312-13A, HYUNDAI part number 21FT-15190
• COMESYS FY10-016-13, HYUNDAI part number 21LL-01570
