COMESYS Foot Pedal Throttle

Model: FY3-016-13, Hyundai forklift accelerator, part number 21FT-99201

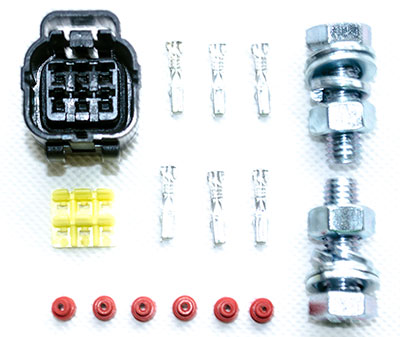

Mating Connector & Installation Kit

Description:

Installed on the aluminum die-casted bottom plate, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by dual stainless steel return springs, the COMESYS foot pedal throttle model FY3-016-13 is used as the accelerator for Hyundai forklifts.

Specifications:

• Model: FY3-016-13 (compatible with F03-016-013 / F03-016-13)
• Hyundai Part Number: 21FT-99201
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Application:

Applied as accelerator of Hyundai forklifts, COMESYS foot pedal throttle FY3-016-13 is ideal for both indoor and outdoor material handling operations.

Characteristics:

1. Pedal travel : 17.5 +/- 2deg
2. Pedal resistant force (measured at the point of 150 mm from the pedal pivot axis): initial load: 30N min; full load: 60N max.
3. Working temperature. : -40 - 85 °C
4. Storage temperature. : -40 - 105 °C
5. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis

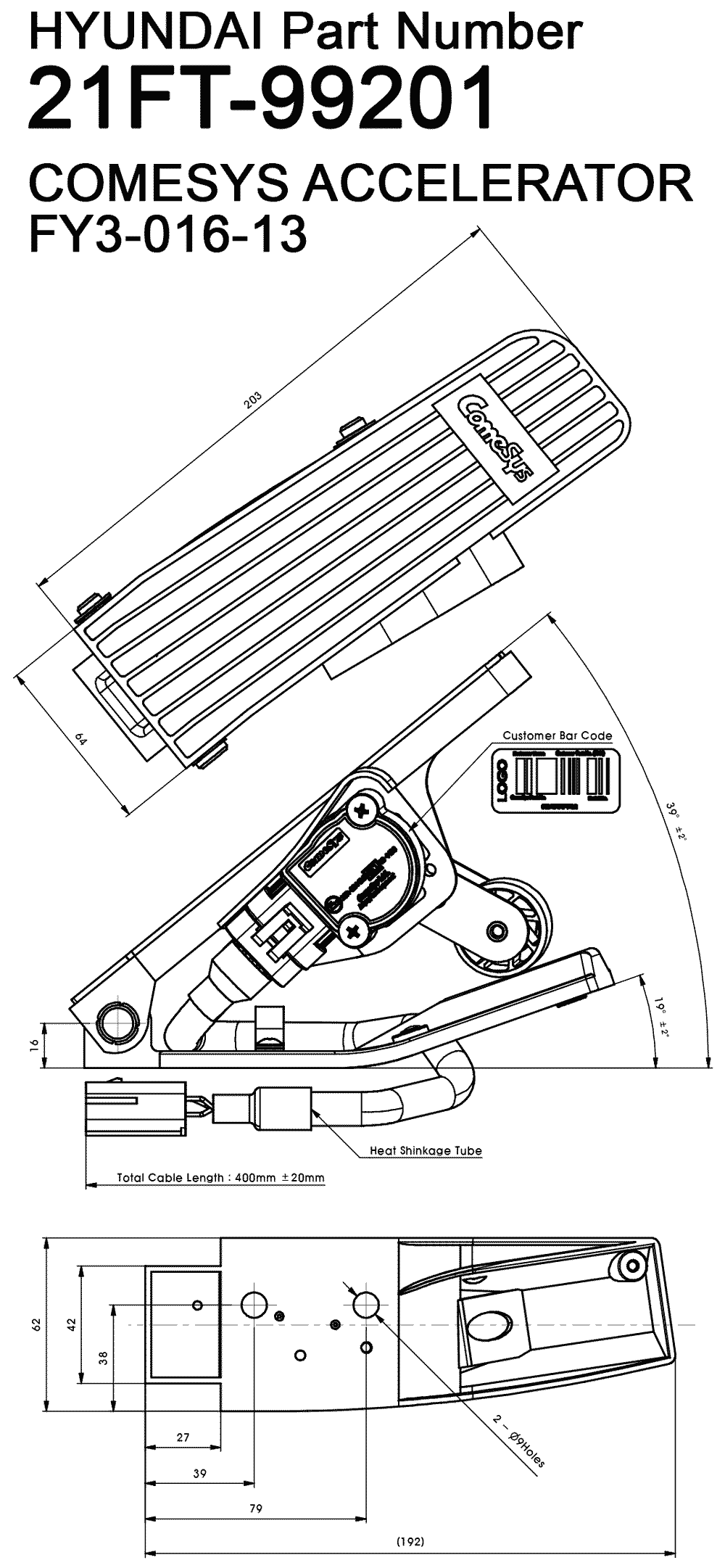

Dimensions:

We supply also other COMESYS electric accelerator assemblies for HYUNDAI forklifts, wheel loaders and contruction machines.

• COMESYS FZ3-016-13, HYUNDAI part number 21FT-99202
• COMESYS FY7-312-13A, HYUNDAI part number 21FT-15190
• COMESYS FY10-016-13, HYUNDAI part number 21LL-01570

COMESYS Foot Pedal Throttle

Model: FY3-016-13, Hyundai forklift accelerator，part number 21FT-99201

Description:

Installed on the aluminum die-casted bottom plate, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by dual stainless steel return springs, the COMESYS foot pedal throttle model FY3-016-13 is used as the accelerator for Hyundai forklifts.

Specifications:

• Model: FY3-016-13 (compatible with F03-016-013 / F03-016-13)
• Hyundai Part Number: 21FT-99201
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Mating Connector & Installation Kit

Application:

Applied as accelerator of Hyundai forklifts, COMESYS foot pedal throttle FY3-016-13 is ideal for both indoor and outdoor material handling operations.

Characteristics:

1. Pedal travel : 17.5 +/- 2deg
2. Pedal resistant force (measured at the point of 150 mm from the pedal pivot axis): initial load: 30N min; full load: 60N max.
3. Working temperature. : -40 - 85 °C
4. Storage temperature. : -40 - 105 °C
5. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis

Dimensions:

We supply also other COMESYS electric accelerator assemblies for HYUNDAI forklifts, wheel loaders and contruction machines.

• COMESYS FZ3-016-13, HYUNDAI part number 21FT-99202
• COMESYS FY7-312-13A, HYUNDAI part number 21FT-15190
• COMESYS FY10-016-13, HYUNDAI part number 21LL-01570
