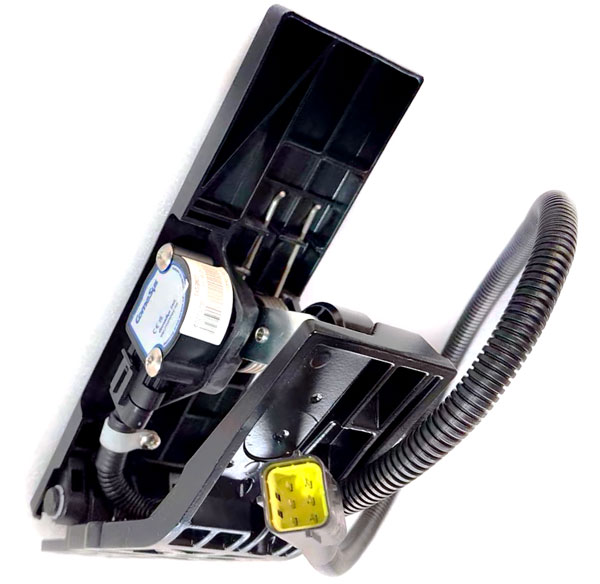

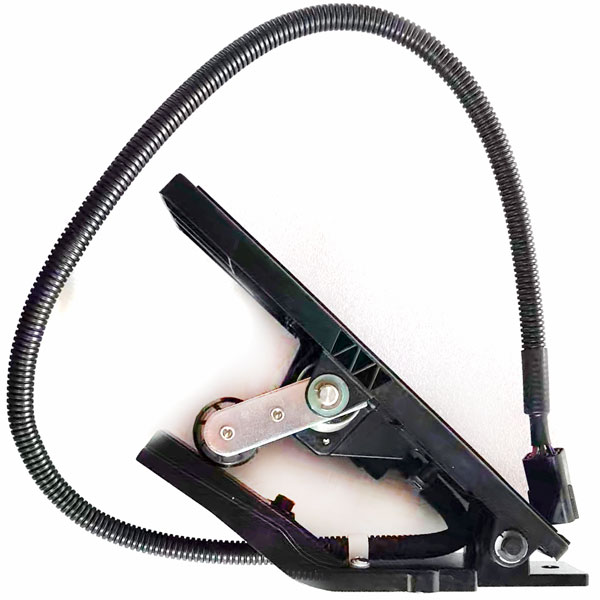

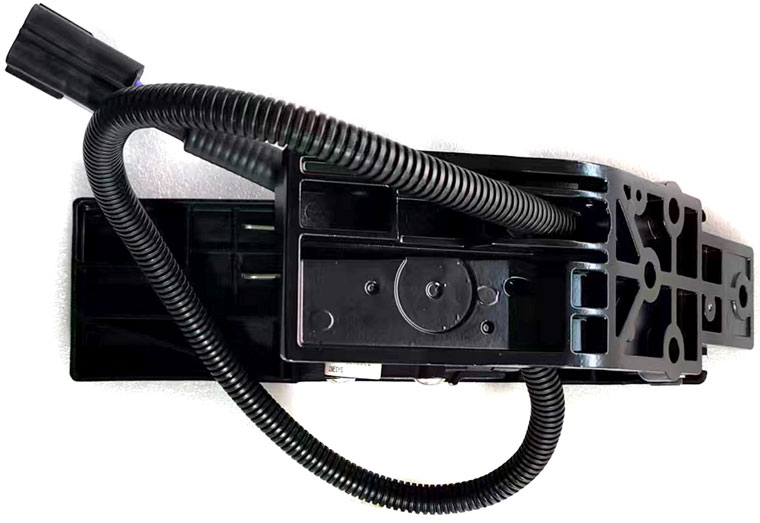

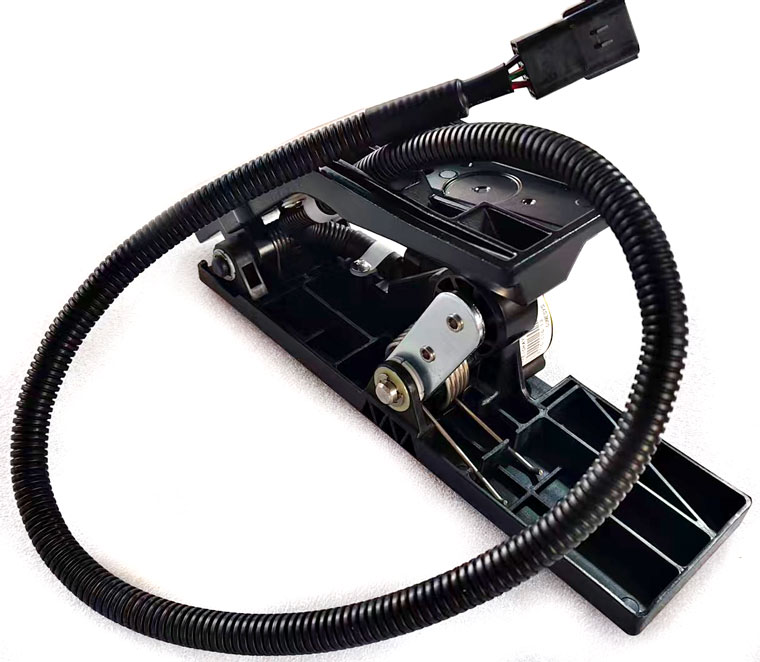

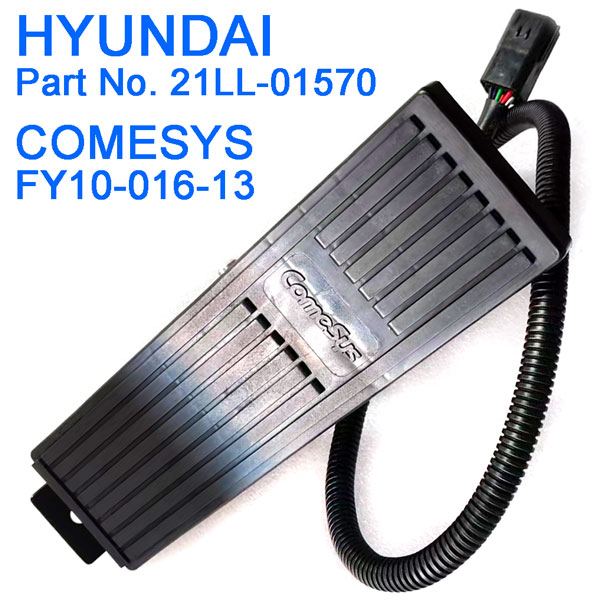

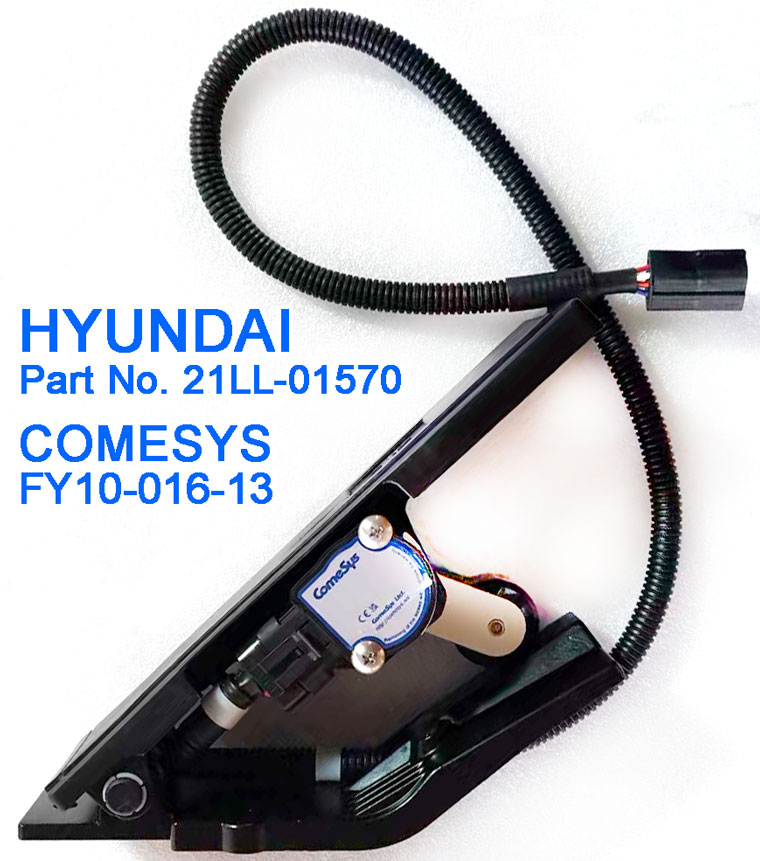

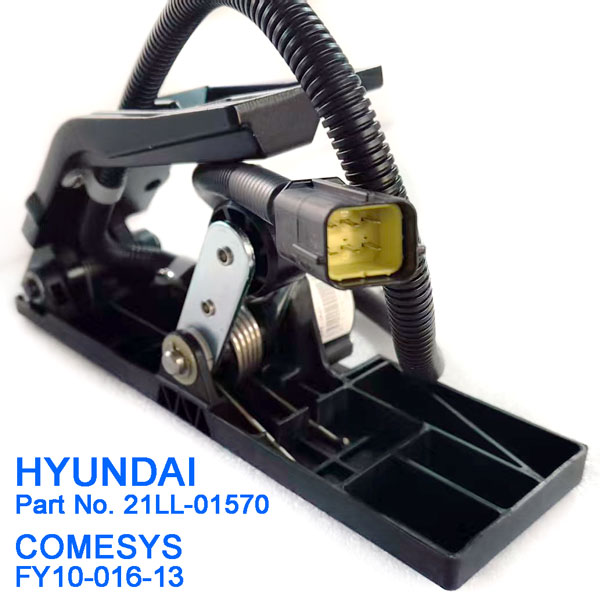

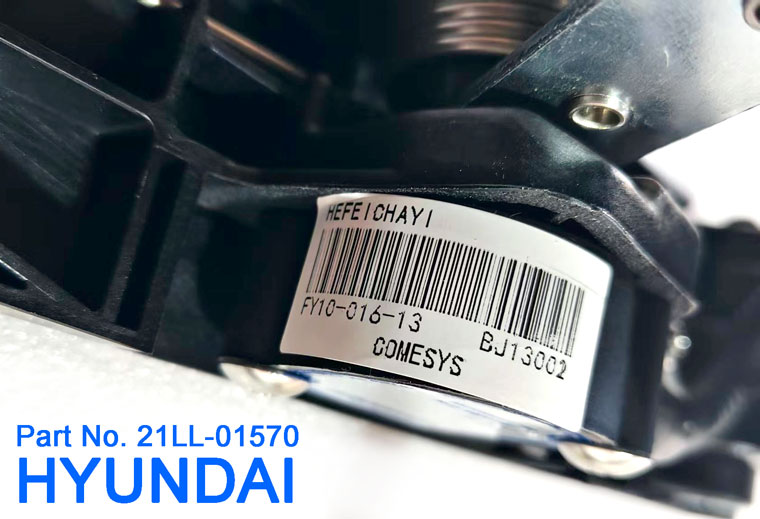

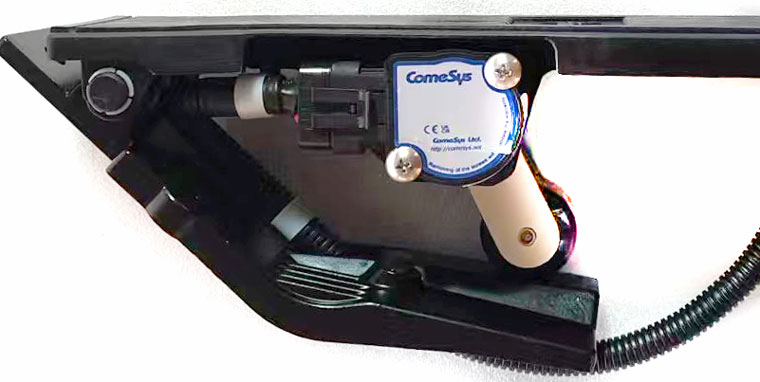

HYUNDAI Wheel Loader Electric Accelerator Assembly

COMESYS FY10-016-13, HYUNDAI Part Number 21LL-01570

Description:

Designed for HYUNDAI Wheel Loader, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by high perfomance stainless steel return springs, the COMESYS Electric Accelerator Assembly model FY10-016-13 is featured with its compact size and stable output.

Specifications:

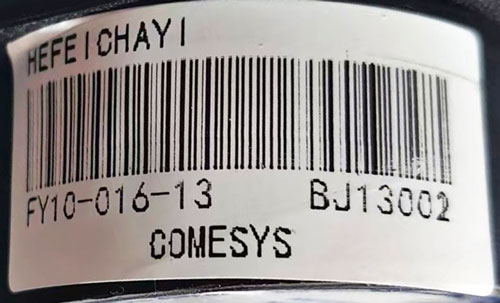

• Model: FY10-016-13
• HYUNDAI part number: 21LL-01570
• Product life: 10,000,000 cycles (full travel sycle)
• Non - Contact Sensing Technology
• End-Break force : 160kgf ± 5kgf will not damage any pedal parts
• Mating connector & installation kit are included
• ESD: tested in accordance with IEC 61000-4-2
• EMS: as per ISO 11452-2 (2004E)

Application:

COMESYS FY10-016-13 is an OEM product for HYUNDAI Construction 9 series forklifts wheel loaders. Typical applications include:

• HL730-9A
• HL730TM-9A
• HL740-9A
• HL740-F
• HL740TM-9A
• HL740TM-F
• HL757-9A
• HL757-F
• HL757TM-9A
• HL760-9A
• HL760-9AW
• HL760-F
• HL770-9A
• HL770-F
• HL780-9A
• HL780-F
• Etc.

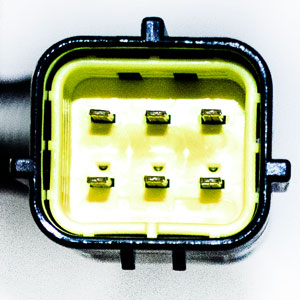

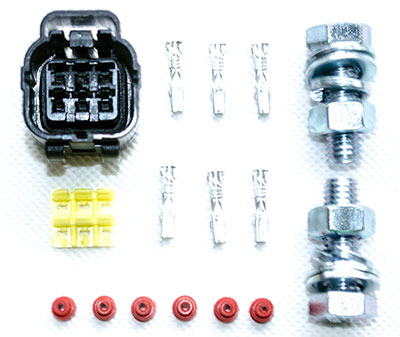

Connector, mating connector & installation kit:

Characteristics:

1. Input Voltage(Vcc) : 5Vdc ± 2%
2. Signal voltage:
   • Signal 1: 1.1±0.15 - 4.2±0.25Vdc
   • Signal 2: 0.55±0.15 - 2.1±0.25Vdc
3. Operation Current(Iop): 16mA (Normal), 20mA (Max)
4. Working temperature.: -40 - 85 °C
5. Storage temperature.: -40 - 105 °C
6. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis
