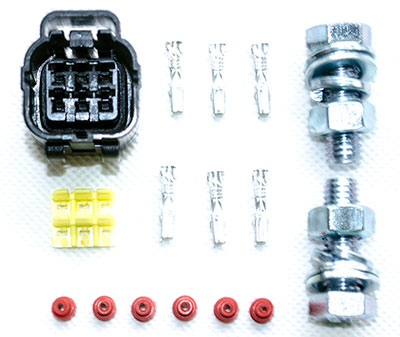

Installation Kit & AMP Mating Connector

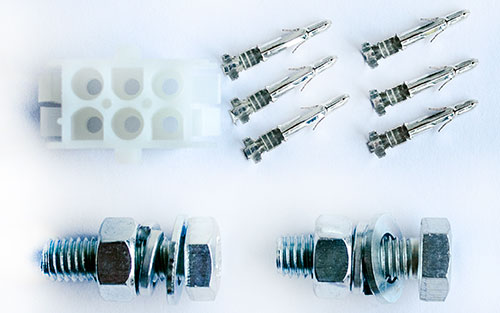

Installation Kit & TE Mating Connector

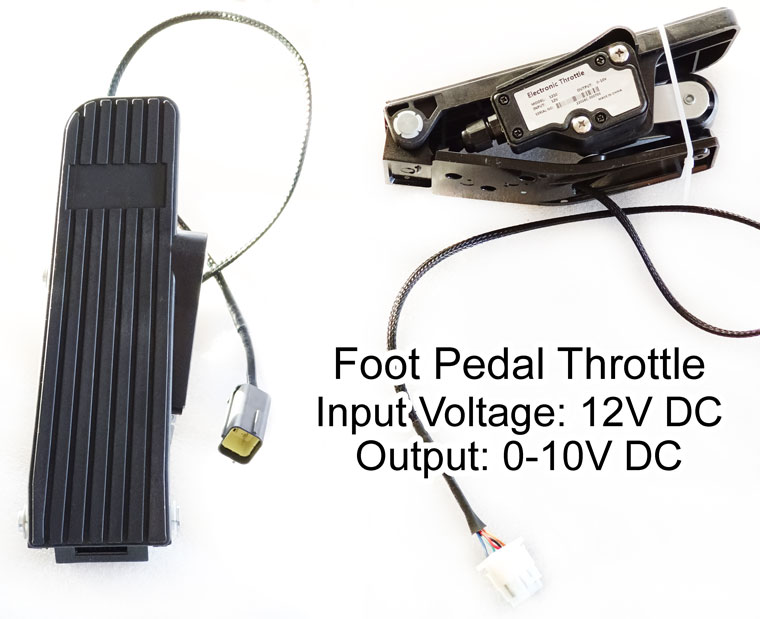

0-10V Voltage Throttle, Input Voltage 12V DC

Forklift accelerator, working with ZAPI / SME controller

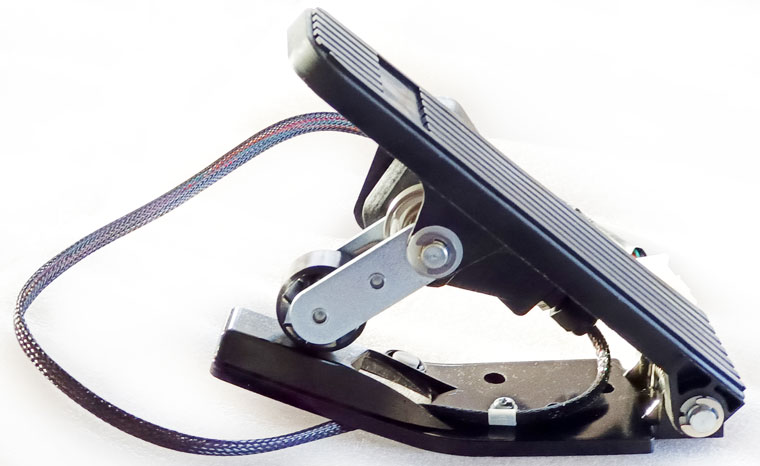

Overview:

The foot pedal throttles NOCO-FT-1210 are accelerators of forklifts, equipped with a mating connector, working with ZAPI controller.

Equipped with a non-contact technology sensor, the foot pedal throttle NOCO-FT-1210 feeds 0-10V speed signal to motor speed controller (ZAPI / SME, or other brands).

Typical application: DALIAN 3 Ton forklift, HELI, HANGCHA, etc.

Specifications:

• Product Name: electric vehicle accelerator assembly
• Model: NOCO-FT-1210
• Input voltage (Vcc):12VDC
• Throttle type: 0-10V voltage throttle, working with ZAPI controller
• Installation kit is included: bolts, nuts and washes
• Two connector options:
  • 6-Pin AMP water proof connector (compatible with COMESYS FZ3-152-341 / FZ3-152-343), HELI / HANGCHA / DALIAN forklift accelerator
  • 6-Pin TE connector, DALIAN forklift accelerator
• Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis
• Net weight: 1.10 kg (with installation kit and mating connector)
• Package weight: about 1.45 kg

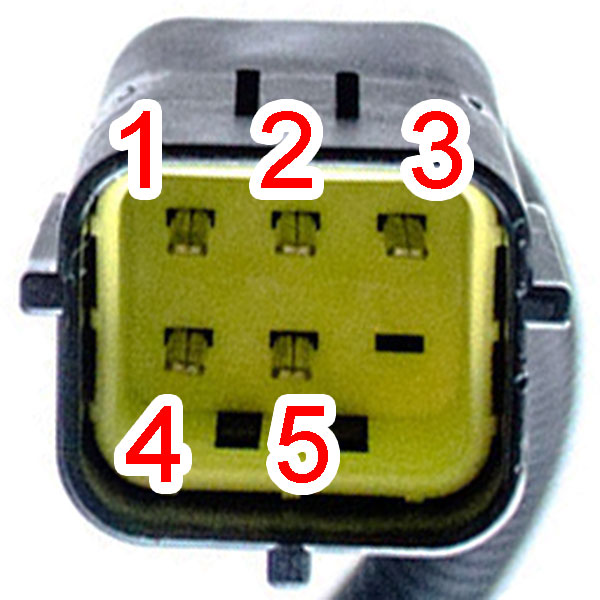

Wiring:

	No.	Wire Color	Function
	1	Black	B-
	2	Green	Throttle Signal (0-10V)
	3	Blue	Throttle Switch Out
	4	Yellow	Throttle Switch In
	5	Red	B+
	No.	Wire Color	Function
	1	Red	B+
	2	Green	Throttle Signal (0-10V)
	3	Black	B-
	4	Yellow	Throttle Switch In
	5	Blue	Throttle Switch Out

Wiring diagram:

0-10V Voltage Throttle, Input Voltage 12V DC

Forklift accelerator, working with ZAPI / SME controller

Overview:

The foot pedal throttles NOCO-FT-1210 are accelerators of forklifts, equipped with a mating connector, working with ZAPI controller.

Equipped with a non-contact technology sensor, the foot pedal throttle NOCO-FT-1210 feeds 0-10V speed signal to motor speed controller (ZAPI / SME, or other brands).

Typical application: DALIAN 3 Ton forklift, HELI, HANGCHA, etc.

Installation Kit & AMP Mating Connector

Installation Kit & TE Mating Connector

Specifications:

• Product Name: electric vehicle accelerator assembly
• Model: NOCO-FT-1210
• Input voltage (Vcc):12VDC
• Throttle type: 0-10V voltage throttle, working with ZAPI controller
• Installation kit is included: bolts, nuts and washes
• Two connector options:
  • 6-Pin AMP water proof connector (compatible with COMESYS FZ3-152-341 / FZ3-152-343), HELI / HANGCHA / DALIAN forklift accelerator
  • 6-Pin TE connector, DALIAN forklift accelerator
• Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis
• Net weight: 1.10 kg (with installation kit and mating connector)
• Package weight: about 1.45 kg

Wiring:

	No.	Wire Color	Function
	1	Black	B-
	2	Green	Throttle Signal (0-10V)
	3	Blue	Throttle Switch Out
	4	Yellow	Throttle Switch In
	5	Red	B+
	No.	Wire Color	Function
	1	Red	B+
	2	Green	Throttle Signal (0-10V)
	3	Black	B-
	4	Yellow	Throttle Switch In
	5	Blue	Throttle Switch Out

Wiring diagram:
