Hyundai / Maximal Forklift Electric Accelerator Assembly

FZ3-152-343, working with SME controller

Description:

Designed for Hyundai / Maximal forklift, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by high perfomance stainless steel return springs, the COMESYS Electric Accelerator Assembly model FZ3-152-343 is featured with its compact size and stable output.

Specifications:

• Model: FZ3-152-343, Hyundai / Maximal (Maxforkilift) forklift foot pedal throttle
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Application:

COMESYS FZ3-152-343 is an OEM product for Hyundai / Maximal forklifts, working with SME controller.

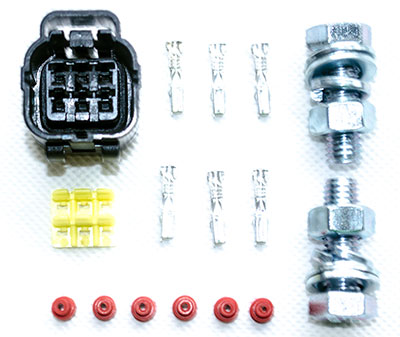

Connector, mating connector & installation kit:

Characteristics:

1. Input voltage (Vcc):12VDC (8-15VDC)
2. Signal voltage: 0.3±0.1 to 9.1±0.3VDC
3. Operation Current(Iop): 20mA (Normal), 25mA (Max)
4. Working temperature. : -40 - 85 °C
5. Storage temperature. : -40 - 105 °C
6. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis
