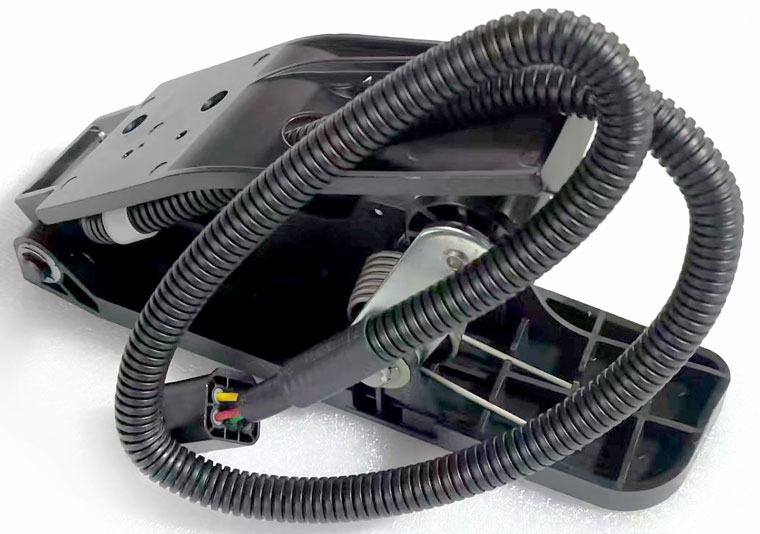

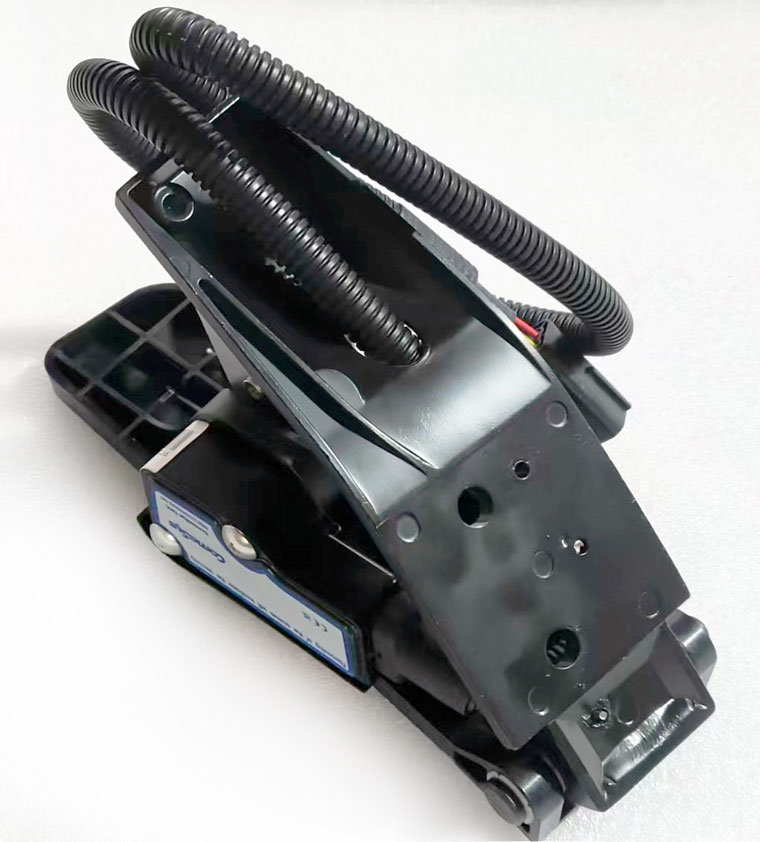

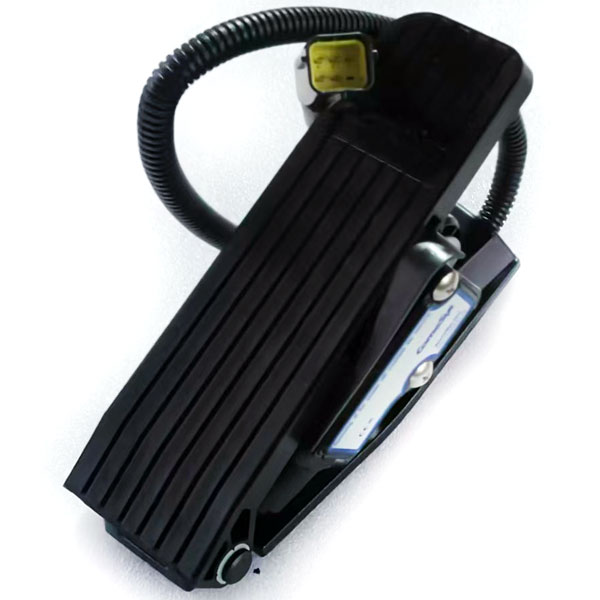

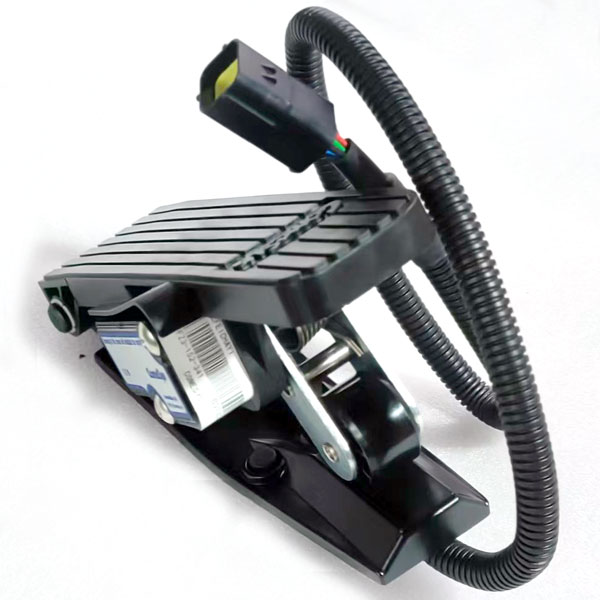

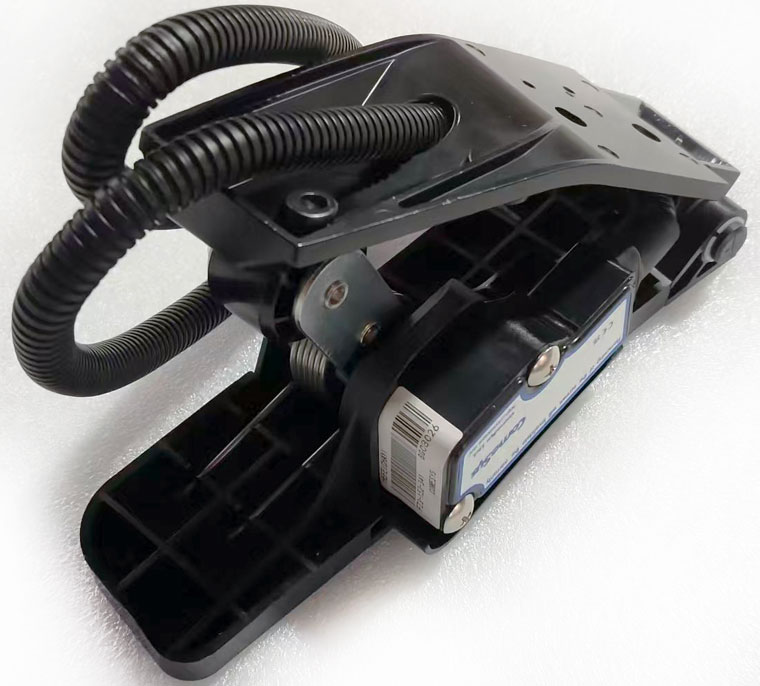

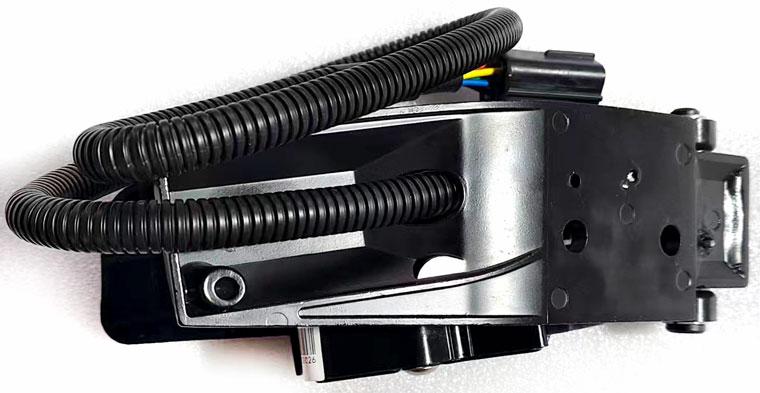

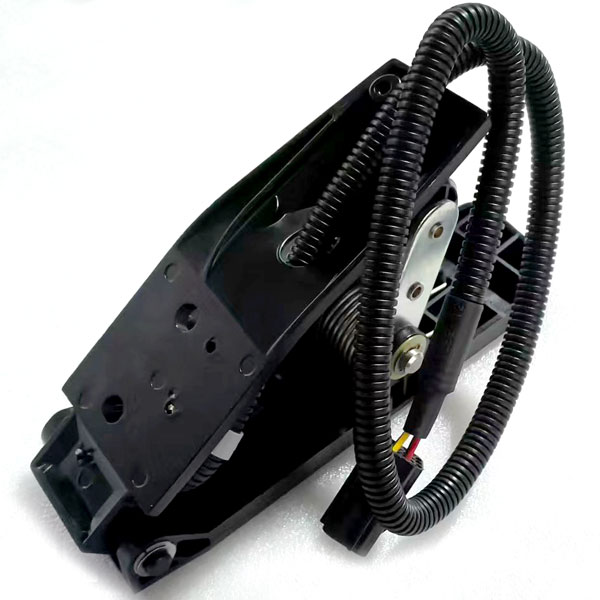

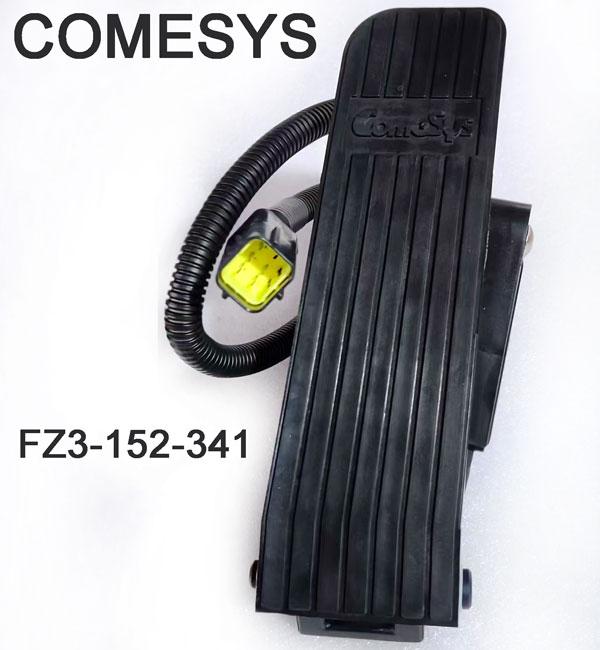

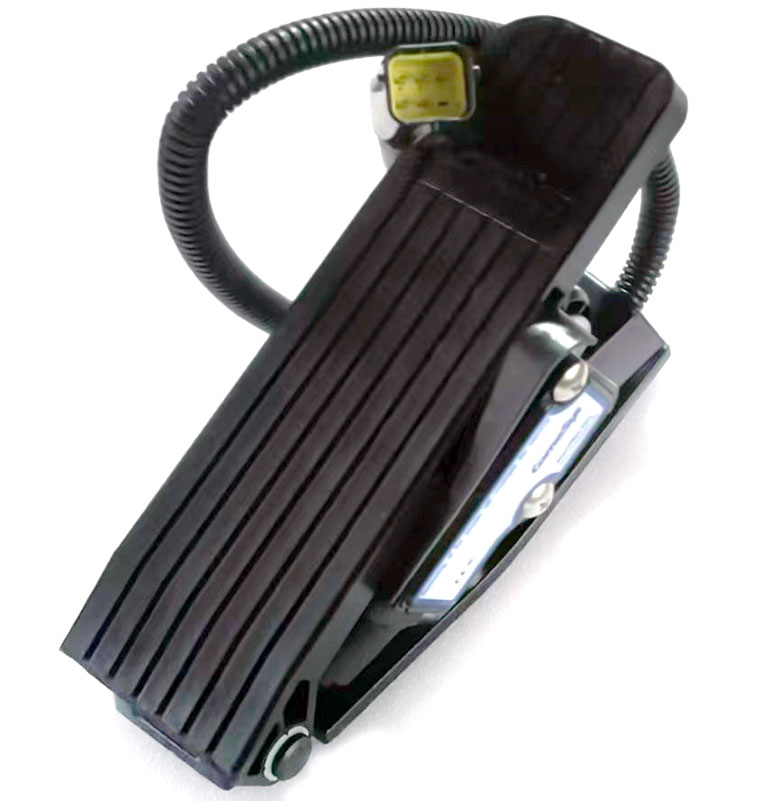

COMESYS Electric Pedal Accelerator Assembly

FZ3-152-341, working with ZAPI controller

Description:

Widely used as the accelerator (gas pedal / throttle) in forklifts from BAOLI, HELI, EP, HANGCHA, LINDE, STILL, and HYSTER, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by high perfomance stainless steel return springs, the COMESYS Electric Accelerator Assembly model FZ3-152-341 is featured with its compact size and stable output.

Specifications:

• Model: FZ3-152-341
• Customer part number: 60915205600 (common part number for BAOLI, LINDE, STILL)
• HELI part number: A63K2-40501
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Application:

The COMESYS FZ3-152-341 accelerator is a universal fit for leading forklift brands, including BAOLI, HELI, EP, HANGCHA, LINDE, STILL, and Hyster. FZ3-152-341 works with ZAPI DC & AC controllers. Applications include:

• BAOLI / LINDE / STILL part number 60915205600, typical forklift models:
  • CPDS15
  • CPDS18
  • Etc.
• HELI part number A63K2-40501, HELI G2 series 3-wheel Lithium battery forklift trucks (front drive), typical forklift models:
  • CPD15SQ-GB2Li
  • CPD16SQ-GB2Li
  • CPD18SQ-GB2Li
  • CPD20SQ-GB2Li
  • CPD25-GB2Li-M
  • CPD25-GB2Li-M
  • CPD30-GB2Li-M
  • CPD35-GB2Li-M
  • Etc.
• HANGCHA XC series three fulcrum lithium battery forklift trucks:
  • CPDS13/15/16/18/20-XCD4-SI
  • CPDS13/15/16/18/20-XCD6-SI
  • CPDS13/15/16/18/20-XCD8B-SI
  • CPDS13/15/16/18/20-XCD8G-SI
  • CPDS13/15/16/18/20-XCC2G-SI
  • Etc.

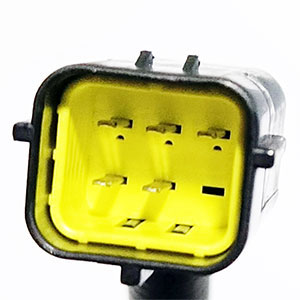

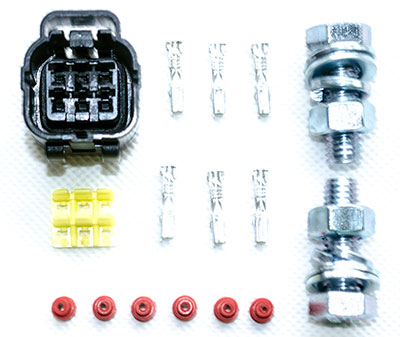

Connector, mating connector & installation kit:

Characteristics:

1. Input voltage (Vcc):13.5VDC (10-15VDC)
2. Signal voltage: 0.3±0.1 to 9.1±0.3VDC
3. Operation Current(Iop): 20mA (Normal), 30mA (Max)
4. Working temperature. : -40 - 85 °C
5. Storage temperature. : -40 - 120 °C
6. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis

COMESYS Electric Pedal Accelerator Assembly

FZ3-152-341, working with ZAPI controller

Description:

Widely used as the accelerator (gas pedal / throttle) in forklifts from BAOLI, HELI, EP, HANGCHA, LINDE, STILL, and HYSTER, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by high perfomance stainless steel return springs, the COMESYS Electric Accelerator Assembly model FZ3-152-341 is featured with its compact size and stable output.

Specifications:

• Model: FZ3-152-341
• Customer part number: 60915205600 (common part number for BAOLI, LINDE, STILL)
• HELI part number: A63K2-40501
• Compatible with:
  • JSQD-1230-002A
  • JIACHEN JCTH-1201
  • YSJSQ Accelerator YSJS1210 / YSJS-1210
  • Big Joe 3218-680000-00
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Application:

The COMESYS FZ3-152-341 accelerator is a universal fit for leading forklift brands, including BAOLI, HELI, EP, HANGCHA, LINDE, STILL, and Hyster. FZ3-152-341 works with ZAPI DC & AC controllers. Applications include:

• BAOLI / LINDE / STILL part number 60915205600, typical forklift models:
  • CPDS15
  • CPDS18
  • Etc.
• HELI part number A63K2-40501, HELI G2 series 3-wheel Lithium battery forklift trucks (front drive), typical forklift models:
  • CPD15SQ-GB2Li
  • CPD16SQ-GB2Li
  • CPD18SQ-GB2Li
  • CPD20SQ-GB2Li
  • CPD25-GB2Li-M
  • CPD25-GB2Li-M
  • CPD30-GB2Li-M
  • CPD35-GB2Li-M
  • Etc.
• HANGCHA XC series three fulcrum lithium battery forklift trucks:
  • CPDS13/15/16/18/20-XCD4-SI
  • CPDS13/15/16/18/20-XCD6-SI
  • CPDS13/15/16/18/20-XCD8B-SI
  • CPDS13/15/16/18/20-XCD8G-SI
  • CPDS13/15/16/18/20-XCC2G-SI
  • Etc.

Connector, mating connector & installation kit:

Characteristics:

1. Input voltage (Vcc):13.5VDC (10-15VDC)
2. Signal voltage: 0.3±0.1 to 9.1±0.3VDC
3. Operation Current(Iop): 20mA (Normal), 30mA (Max)
4. Working temperature. : -40 - 85 °C
5. Storage temperature. : -40 - 120 °C
6. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis
