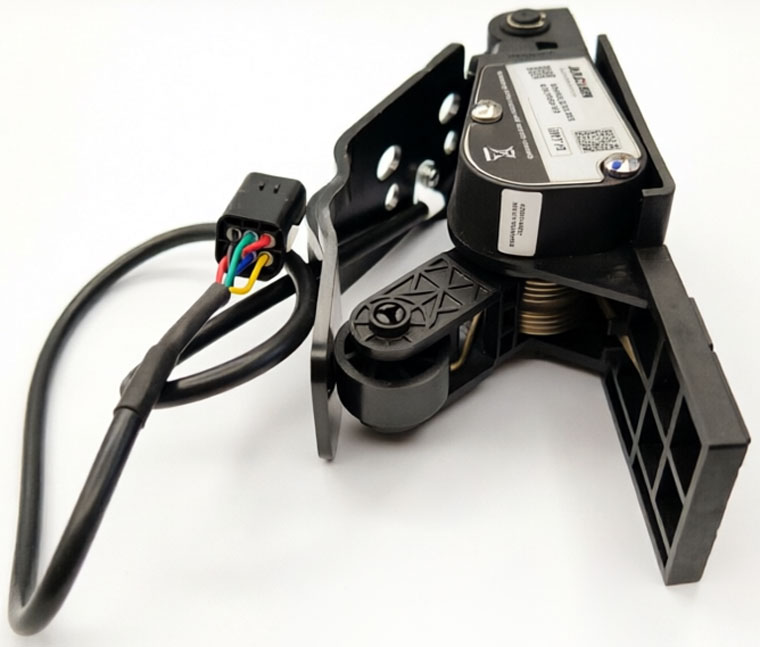

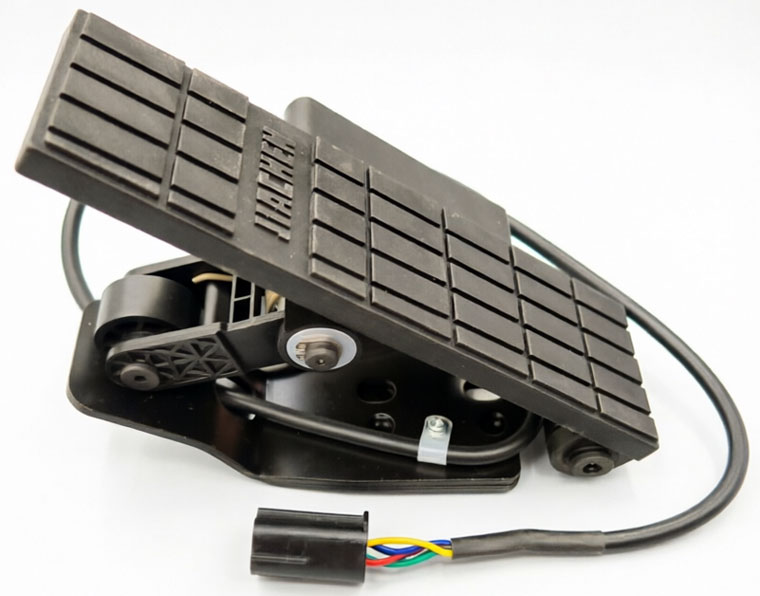

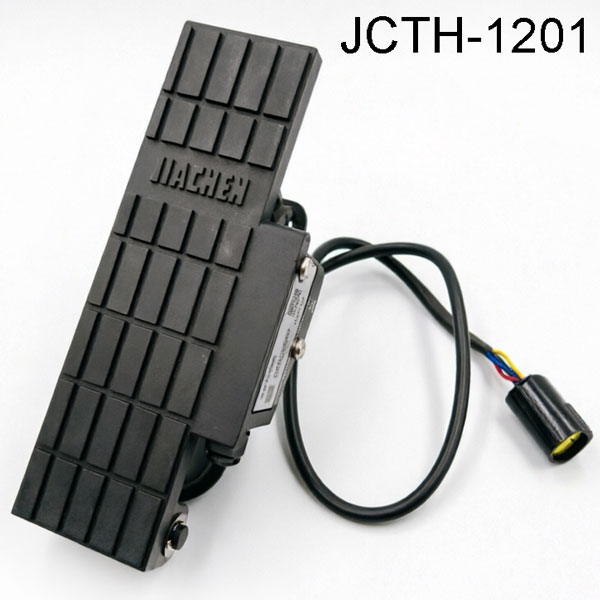

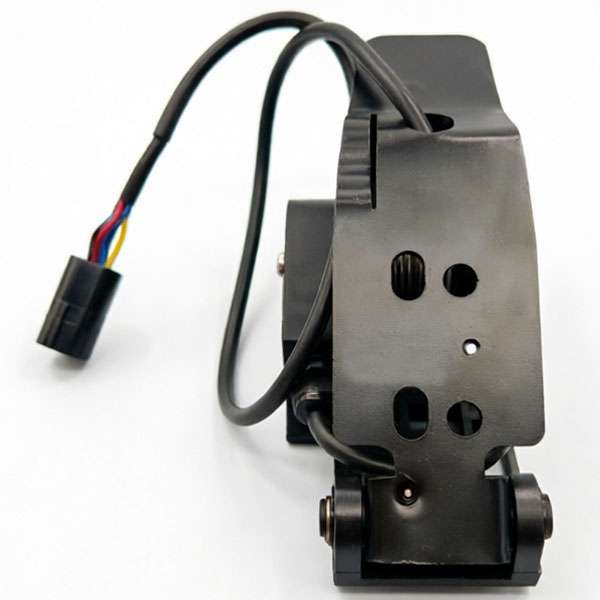

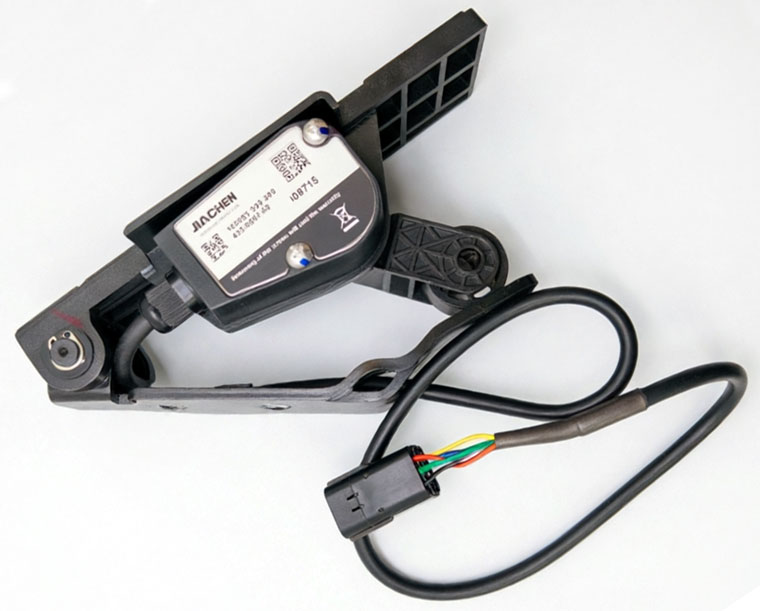

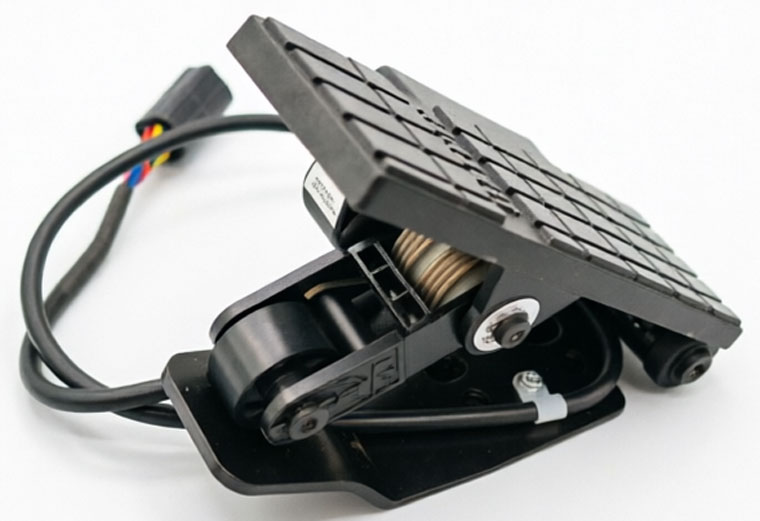

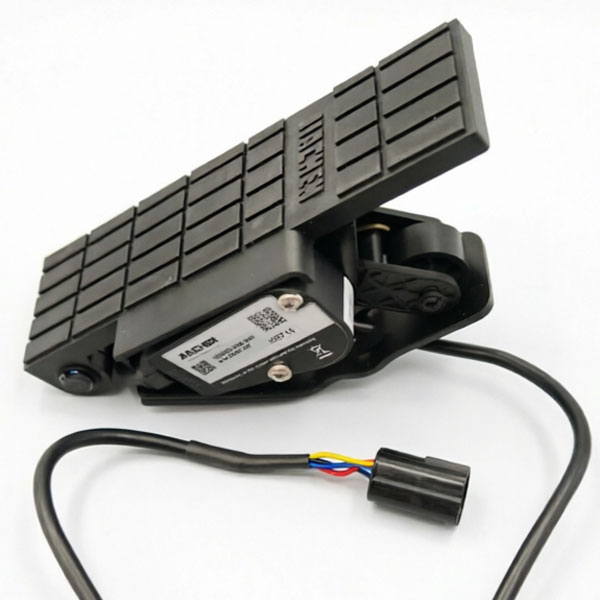

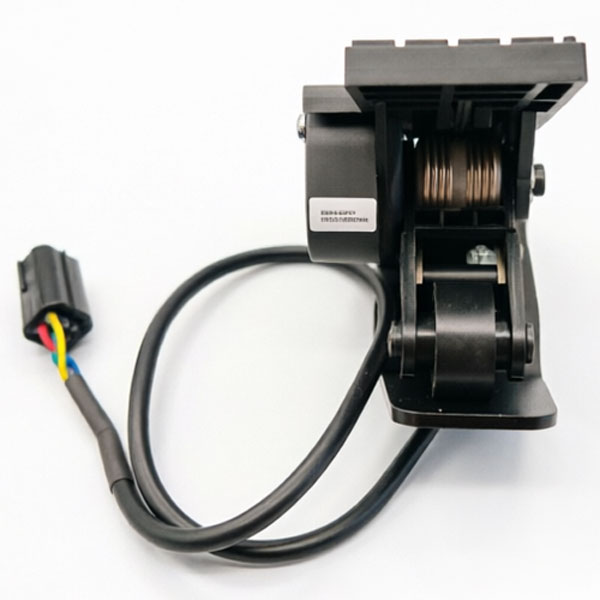

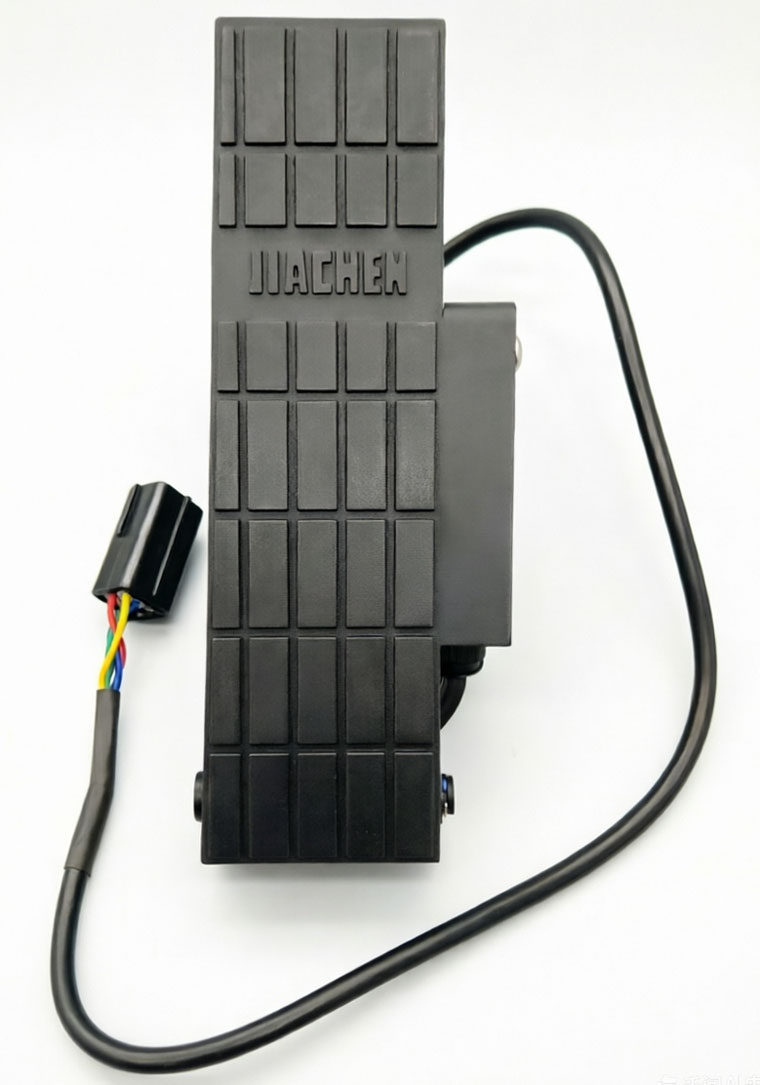

JIACHEN Foot Pedal Accelerator JCTH-1201

0.1-9.1V electric vehicle throttle, input 11-13VDC

JIACHEN foot pedal accelerator JCTH-1201 uses the technology of non-contact sensor, is widely applied as the electric throttle for electric forklift. Typical application is HELI K2 series 3-3.8T forklift (part number A63K2-40501).

KEY FEATURES

• Model: JCTH-1201 (HELI part number A63K2-40501)
  • Compatible with JSQD-1230-002A
  • Compatible with COMESYS electric accelerator assembly FZ3-152-341
• Input voltage (volt): 11-13 VDC
• Signal output: 0.1±0.1 - 9.1±0.3V
• Working with ZAPI controller
• Working current: max. 35mA
• Foot pedal travelling angle (initial status): 35±2°
• Foot pedal travelling angle: 17±2°
• Working temperature: -40 - 50°C
• Storage temperature: -40 - 95°C
• Ingress protection: IP65
• Water-proof connector
• Mating connector is included
• Installation kit is included: bolts, nuts and washes
• Mechnical lifespan: 1,000,000 times
• Net weight: 0.80 kg (with installation kit and mating connector)
• Package weight: about 1.05 kg

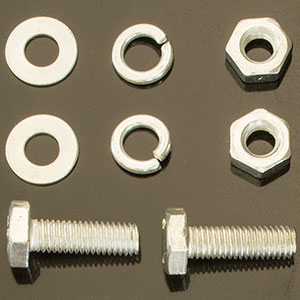

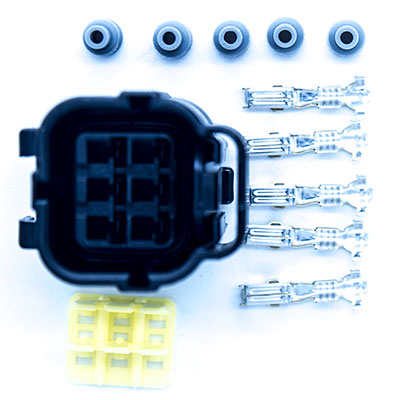

Installation Kit & Connector:

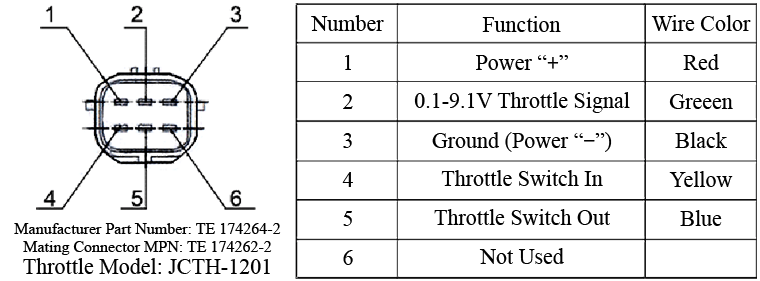

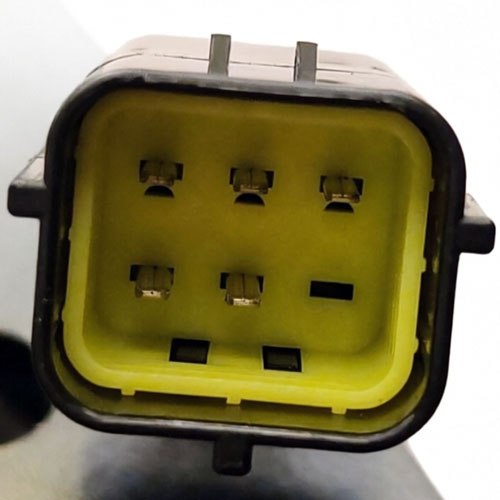

Wiring of JCTH-1201:

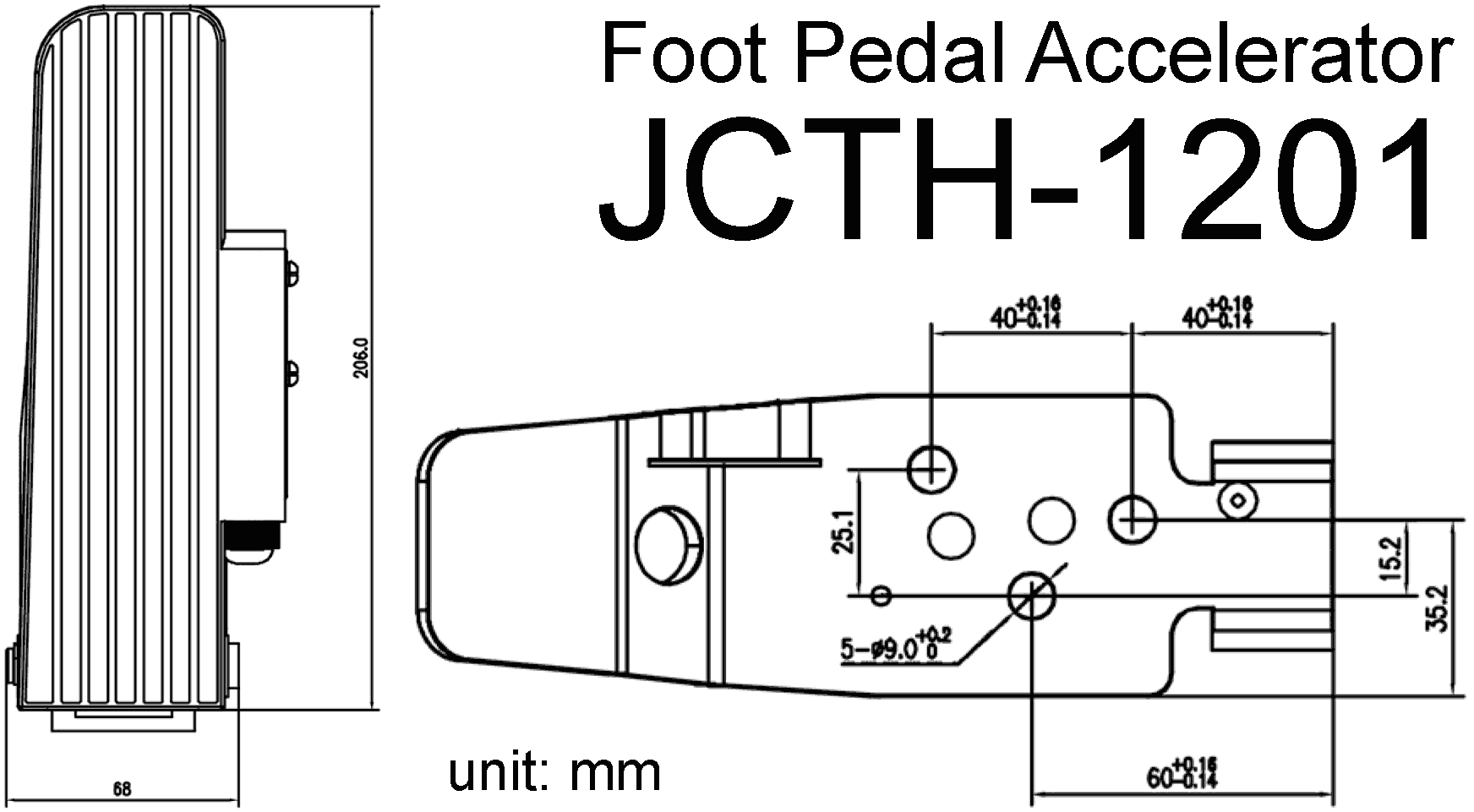

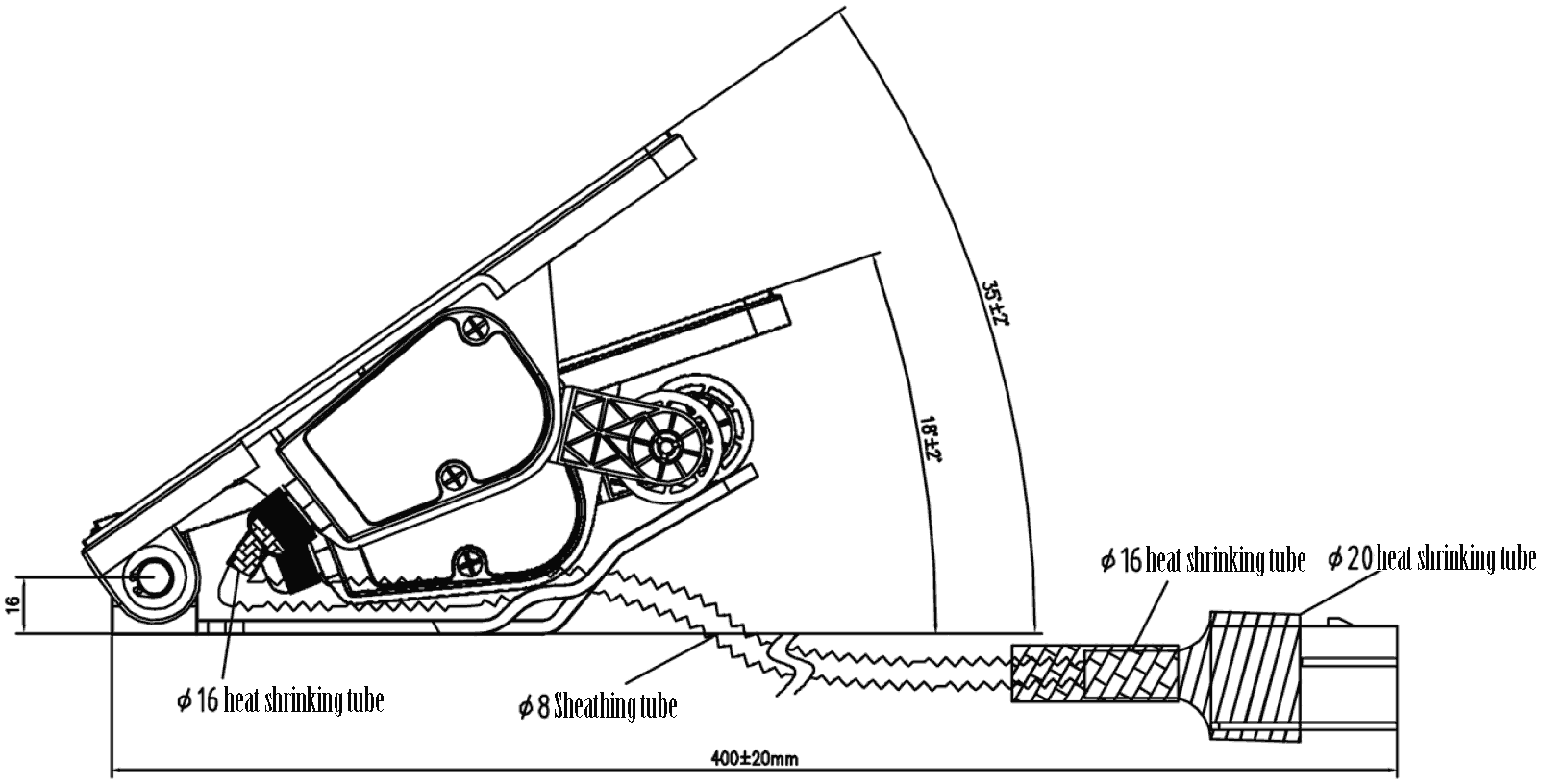

Dimension diagram (unit: mm)
