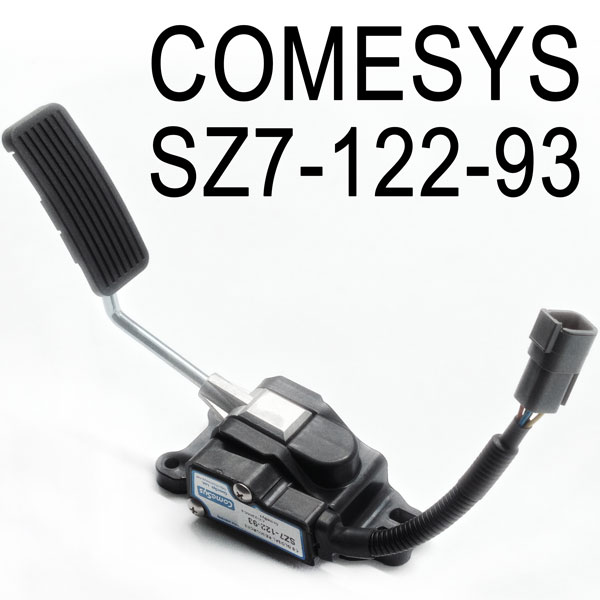

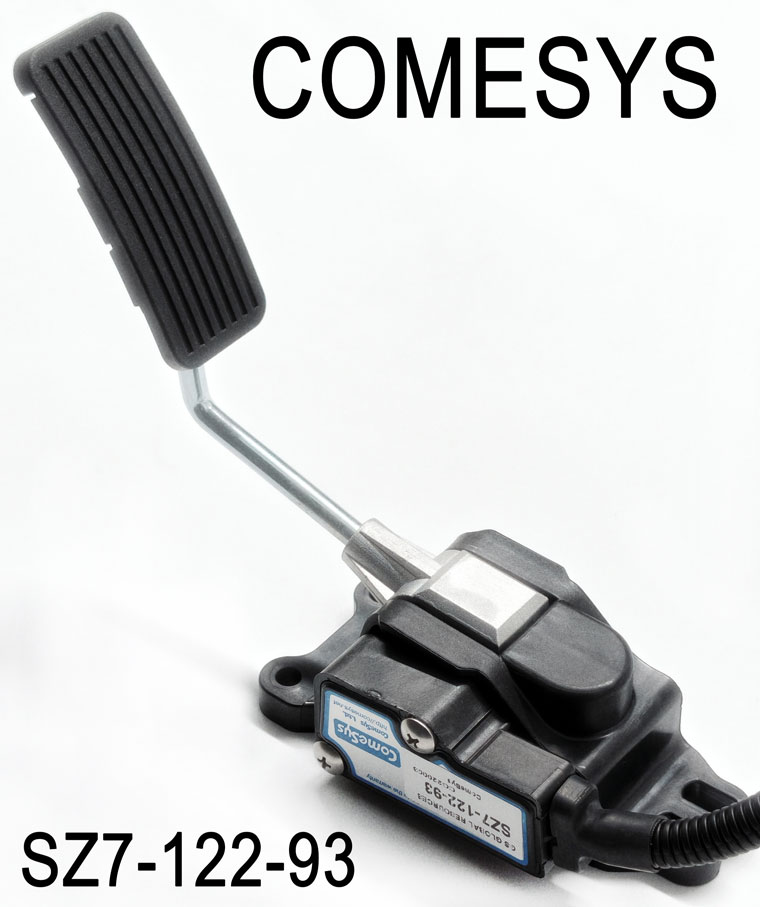

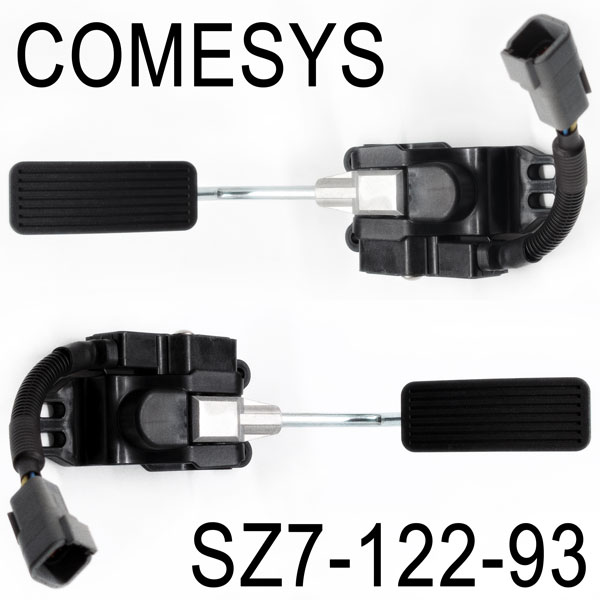

COMESYS Electric Pedal Accelerator Assembly MTS7S

SZ7-122-93, GS NORTH AMERICA Electric Pedal Accelerator assembly

We supply also other COMESYS foot pedal asseblies for Clark forklifts:

• COMESYS FZ3-512-471 (Clark part number: 8159406)
• COMESYS FZ3-113-471 (Clark part number: 8159405)
• COMESYS FZ3-123-471 (interchangeable with FZ3-532-133)
• FZ12-153-47, Clark GZX / GEX forklift Electric Pedal Accelerator assembly, Clark part number 8094279
• COMESYS FY3-014-471 (Clark part number: 8124951)
• COMESYS FZ3-014-471, Clark C25L forklift part, Clark part number: 8115345
• COMESYS FZ12-014-47, Clark Tier-4 forklift electric accelerator assembly, Clark part number 8113852 / 8034436
• COMESYS FZ3-014-47 (Clark part number: 8033089), click to download datasheet of FZ3-014-47 (PDF format)

Description:

OEM product for GS NORTH AMERICA, with an excellent design of non-contact sensing technology, secured by high perfomance stainless steel return springs, the COMESYS Electric Pedal Accelerator Assembly model SZ7-122-93 is featured with its compact size and stable output. A static pedal force is applied at a point of 157 mm from the pedal pivot axis and perpendicular to the pedal surface.

Specifications:

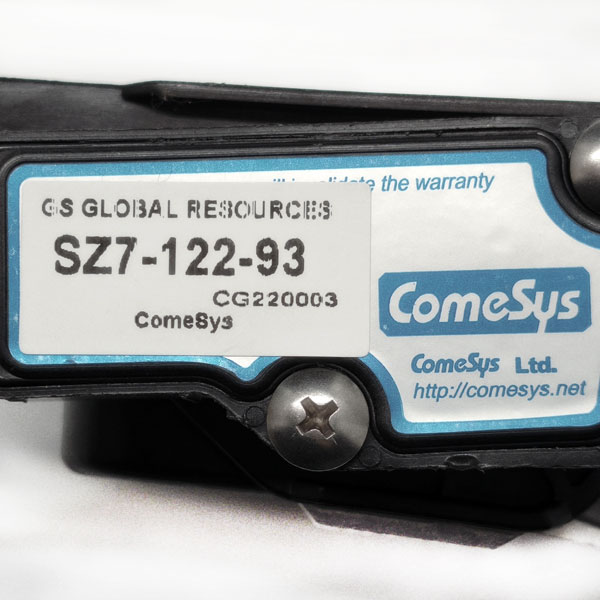

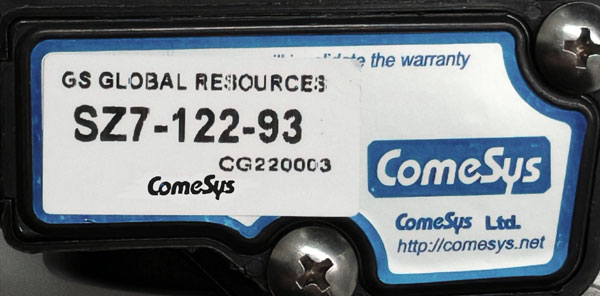

• Model: SZ7-122-93, GS NORTH AMERICA forklift electric pedal accelerator assembly, Global Sources (GS) part number A2C59516785
• Product life : 10,000,000 cycles ( full travel sycle)
• Electrical connection: Deutsch connector DTM04-6P (6-wire)
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Application:

COMESYS SZ7-122-93 is an OEM Electric Pedal Accelerator assembly for GS NORTH AMERICA.

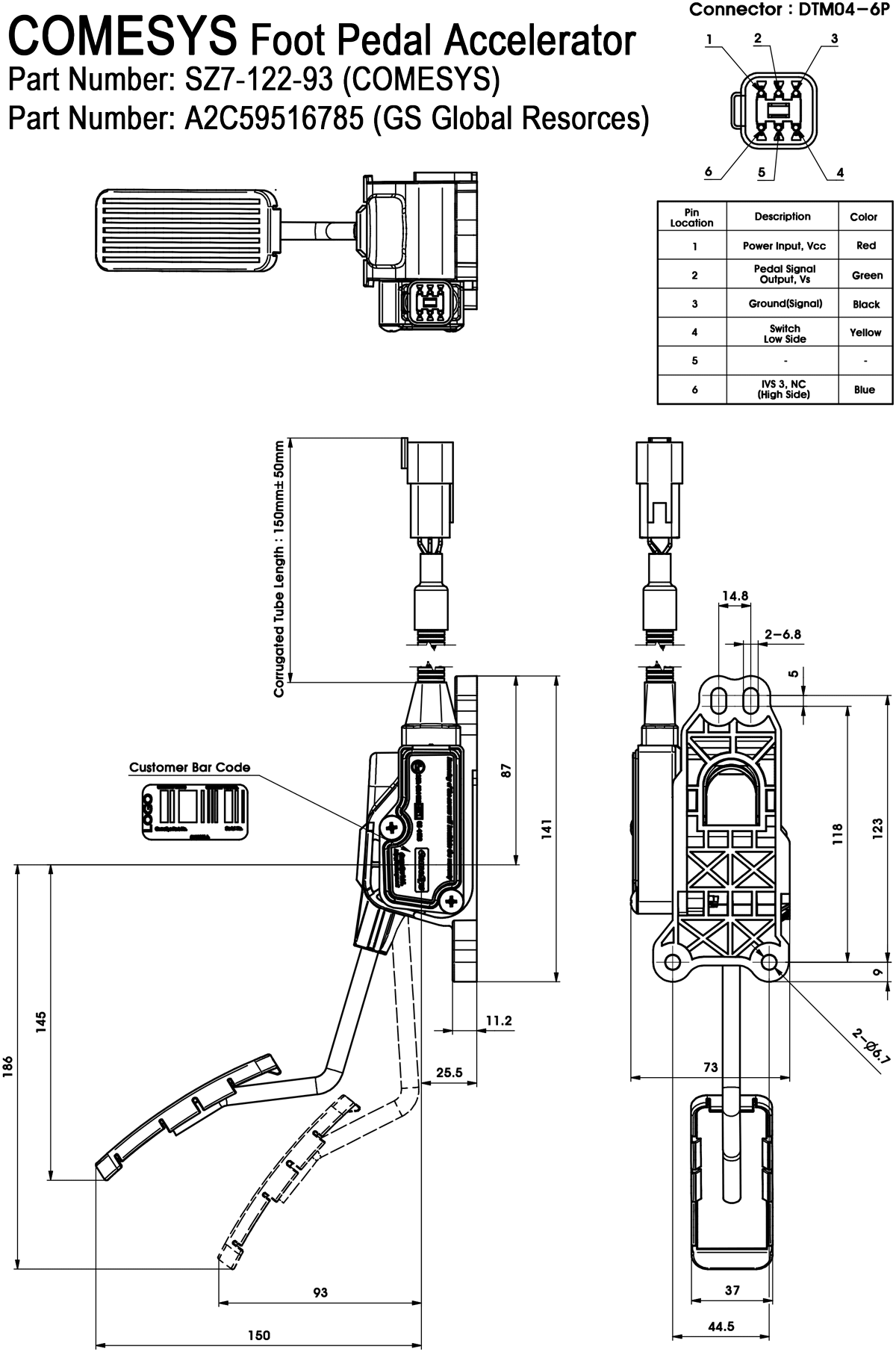

Dimensions (unit: mm):

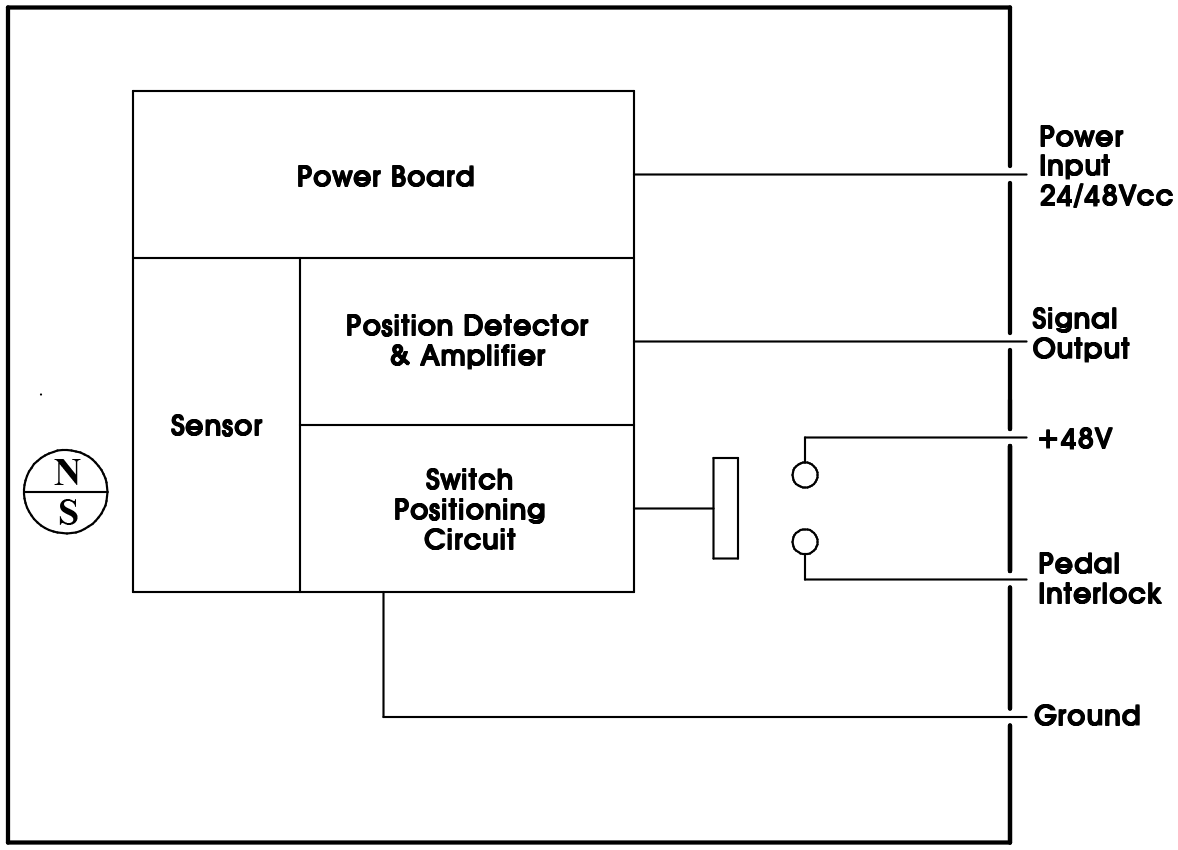

Electric Circuit Diagram:

Characteristics:

1. Input voltage (Vcc): 24/48
2. Operation current (Iop): 15mA (Normal), 20mA (Max)
3. Reverse polarity: withstand 10min
4. Working temperature. : -40 - 85 °C
5. Storage temperature. : -40 - 105 °C
6. Independent linearity: ±2%

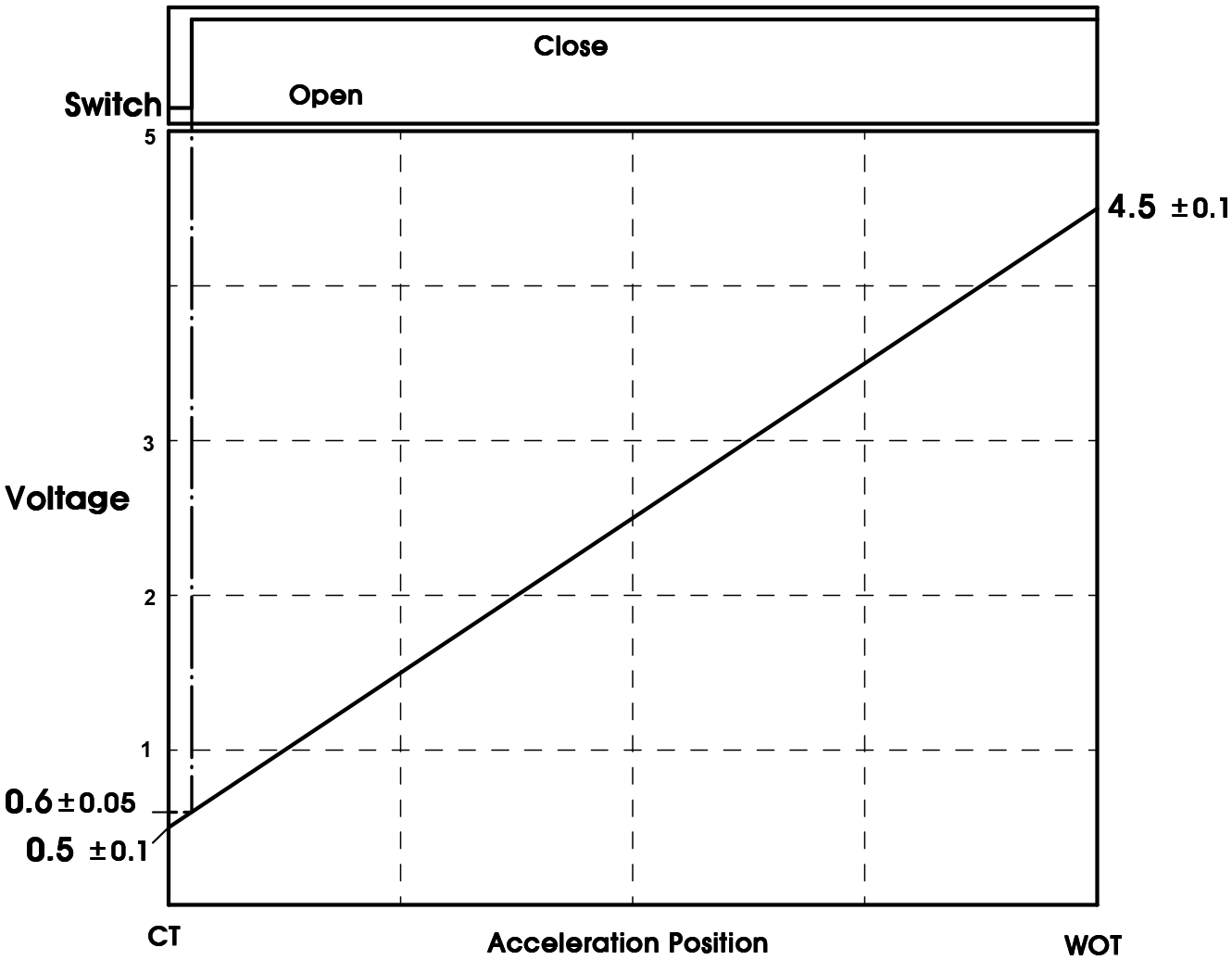

Throttle signal output:
