COMESYS Electric Accelerator Assembly MTF12

FZ12-014-47, Clark Tier-4 forklift electric accelerator assembly

Description:

Designed for Clark Tier-4 forklift, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by high perfomance stainless steel return springs, the COMESYS Electric Accelerator Assembly model FZ12-014-47 is featured with its compact size and stable output.

Specifications:

• Model: FZ12-014-47, Clark Tier-4 forklift forklift electric accelerator assembly
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Application:

COMESYS FZ12-014-47 is an OEM electric accelerator assembly for Clark Tier-4 forklift.

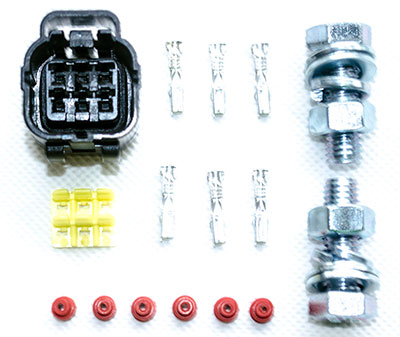

Connector, mating connector & installation kit:

Characteristics:

1. Input voltage (Vcc): 5VDC±2%
2. Output: 2-channel output signal, for more details, please see datasheet of COMESYS FZ12-014-47 (PDF format)
3. Operation Current(Iop): 10mA(Normal), 11mA(Max) per channel
4. Working temperature. : -40 - 85 °C
5. Storage temperature. : -40 - 105 °C
6. Independent linearity: ±2%

COMESYS Electric Accelerator Assembly MTF12

FZ12-014-47, Clark Tier-4 forklift electric accelerator assembly

Description:

Designed for COMESYS, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by high perfomance stainless steel return springs, the COMESYS Electric Accelerator Assembly model FZ12-014-47 is featured with its compact size and stable output.

Specifications:

• Model: FZ12-014-47, Clark Tier-4 forklift electric accelerator assembly
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Application:

COMESYS FZ12-014-47 is an OEM electric accelerator assembly for Clark Tier-4 forklift.

Connector, mating connector & installation kit:

Characteristics:

1. Input voltage (Vcc): 5VDC±2%
2. Output: 2-channel output signal, for more details, please see datasheet of COMESYS FZ12-014-47 (PDF format)
3. Operation Current(Iop): 10mA(Normal), 11mA(Max) per channel
4. Working temperature.: -40 - 85 °C
5. Storage temperature.: -40 - 105 °C
6. Independent linearity: ±2%
