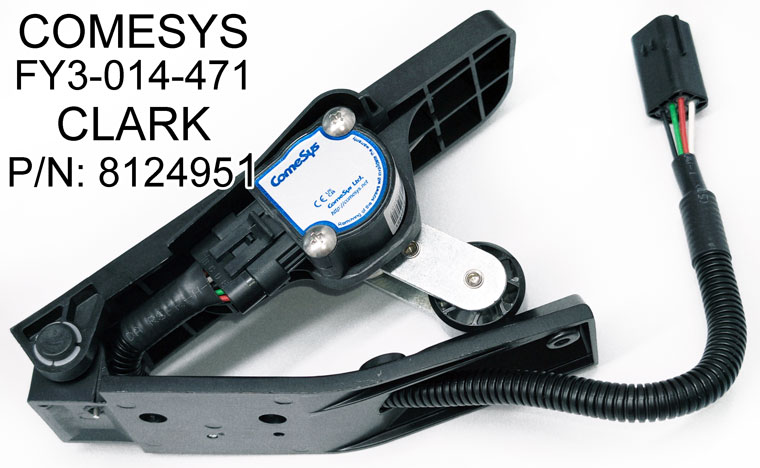

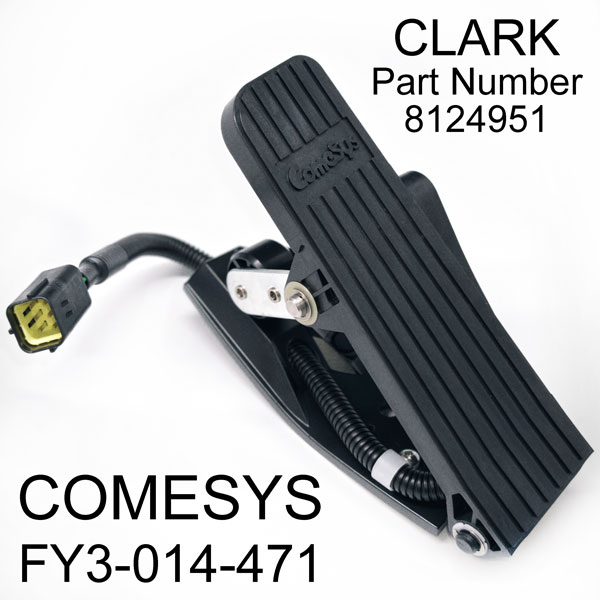

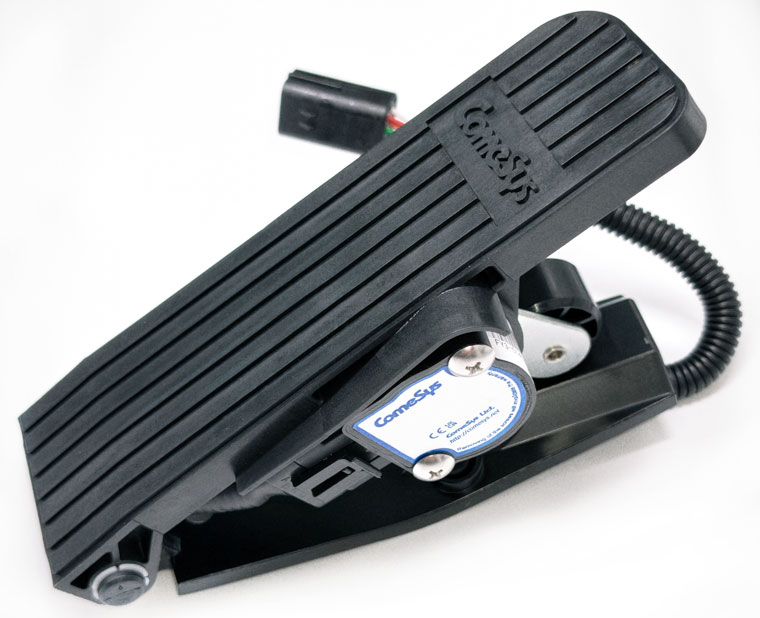

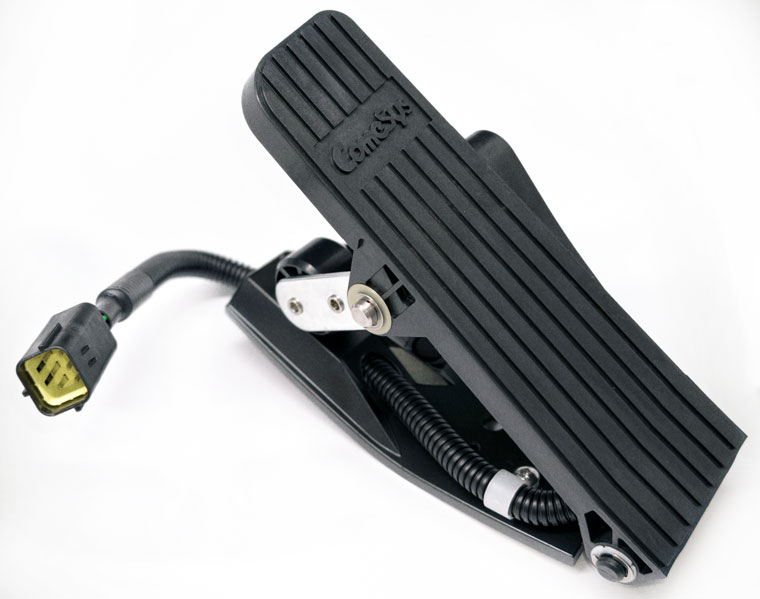

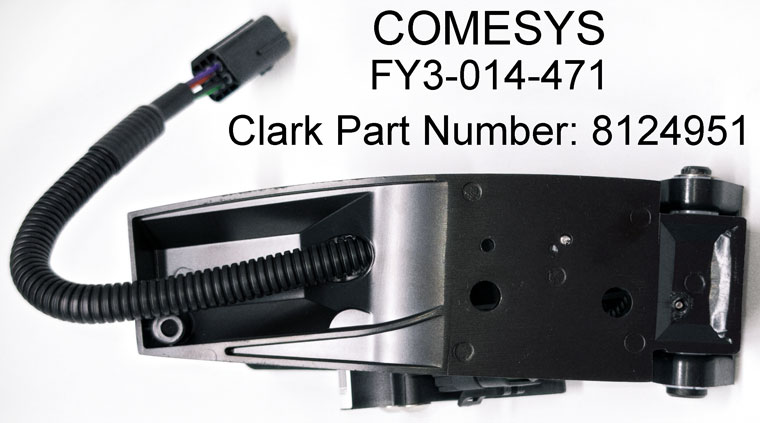

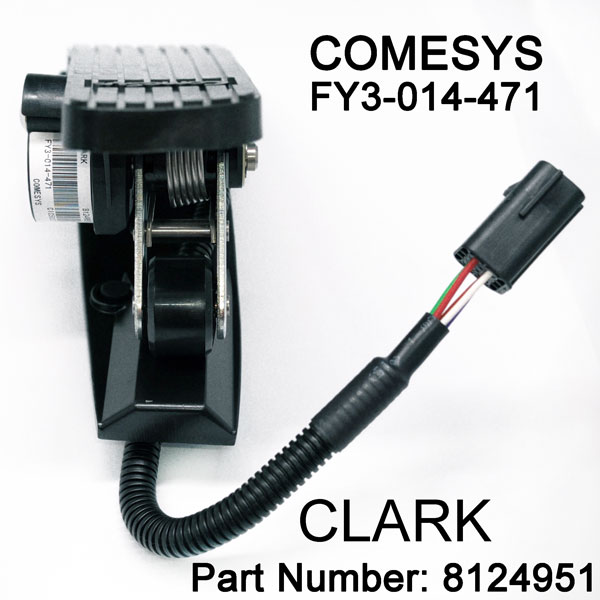

Clark Forklift Accelerator FY3-014-471

COMESYS foot pedal throttle, Clark part number 8124951

We supply also other COMESYS foot pedal asseblies for Clark forklifts:

• COMESYS FZ3-512-471 (Clark part number: 8159406)
• COMESYS FZ3-113-471 (Clark part number: 8159405)
• COMESYS FZ3-123-471 (interchangeable with FZ3-532-133)
• FZ12-014-47, Clark Tier-4 forklift forklift electric accelerator assembly, Clark part number 8113852 / 8034436
• FZ12-153-47, Clark GZX / GEX forklift electric accelerator assembly, Clark part number 8094279
• COMESYS FZ3-014-471, Clark C25L forklift part, Clark part number: 8115345
• COMESYS FZ3-014-47 (Clark part number: 8033089), click to download datasheet of FZ3-014-47 (PDF format)

Description:

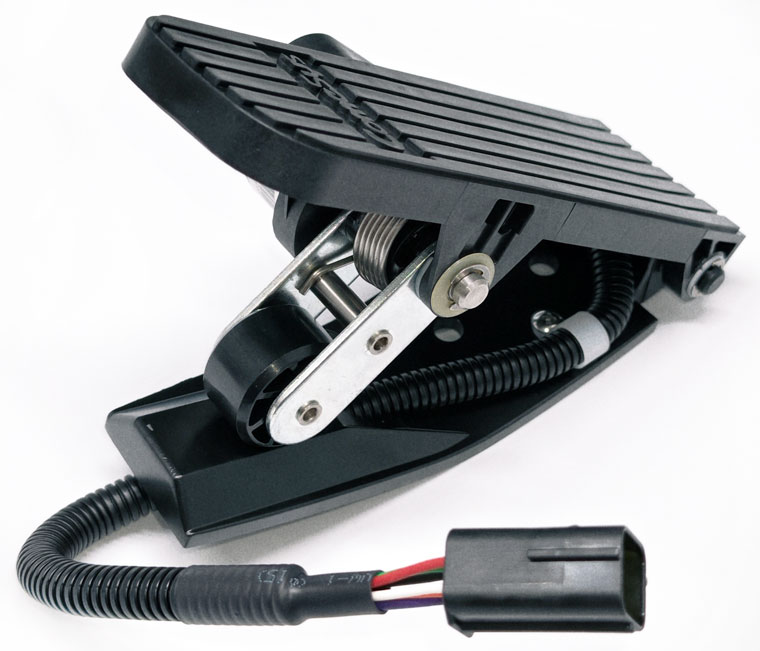

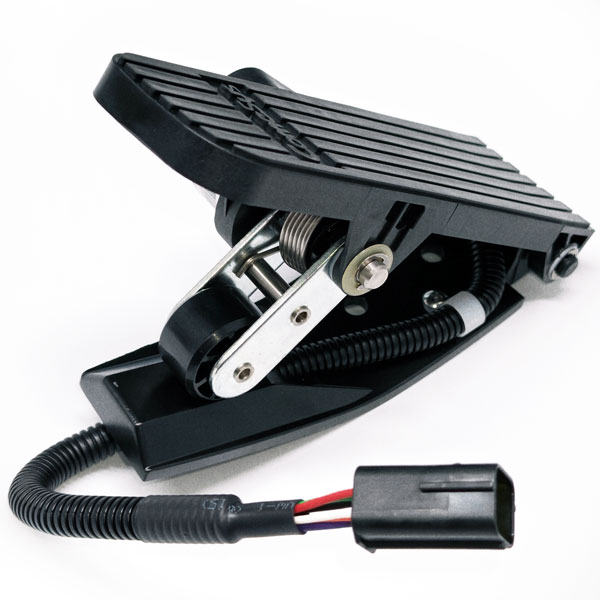

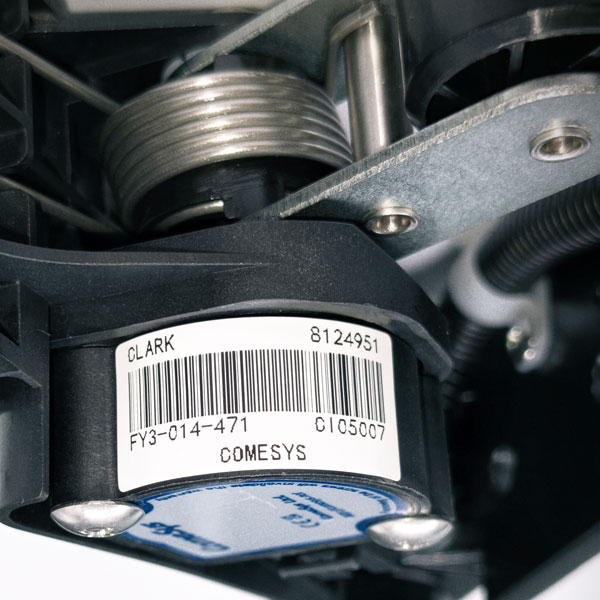

Installed on the aluminum die-casted bottom plate, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by dual stainless steel return springs, the COMESYS foot pedal throttle model FY3-014-471 sends voltage throttle signal to motor speed controllers, for driving the traction motors of electric material handling vehicles like forklift and electric truck.

Specifications:

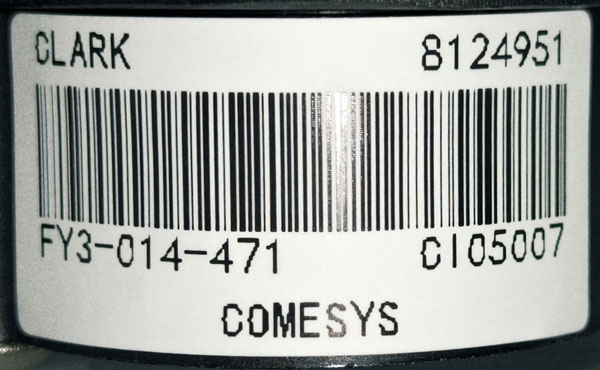

• Clark forklift part, accelerator, COMESYS model FY3-014-471, Clark part number 8124951
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Installation Kit	Mating Connector	Connector Wiring
Pin Code	Description	Wire Color
A	Power Input, Vcc 1	Red
B	Pedal Signal Output, Vs 1	Green
C	Ground (Signal 1)	Black
D	Power Input, Vcc 2	White
E	Pedal Signal Output, Vs 2	Orange
F	Ground ( Signal 2)	Violet

Application:

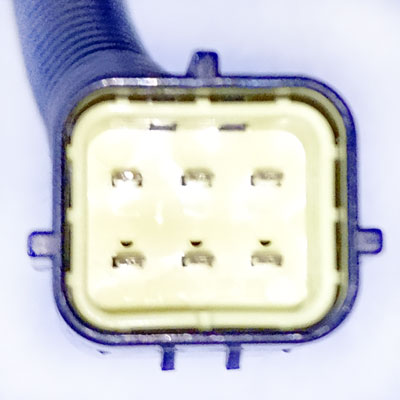

6-Pin Connector

COMESYS foot pedal throttle FY3-014-471 is an OEM part for CLARK forklift (foot pedal accelerator assembly, part number 8124951) is ideal for both indoor and outdoor material handling electric vehicles such as forklift, electric truck, golf cart, pallet stacker and tow tractor.

Characteristics:

1. Pedal travel : 17.5 +/- 2deg
2. Pedal resistant force (measured at the point of 150 mm from the pedal pivot axis): initial load: 30N min; full load: 60N max.
3. Working temperature. : -40 - 85 °C
4. Storage temperature. : -40 - 105 °C
5. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis

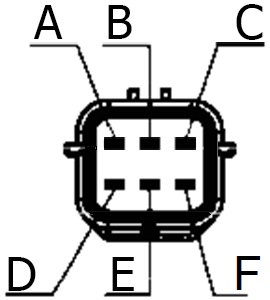

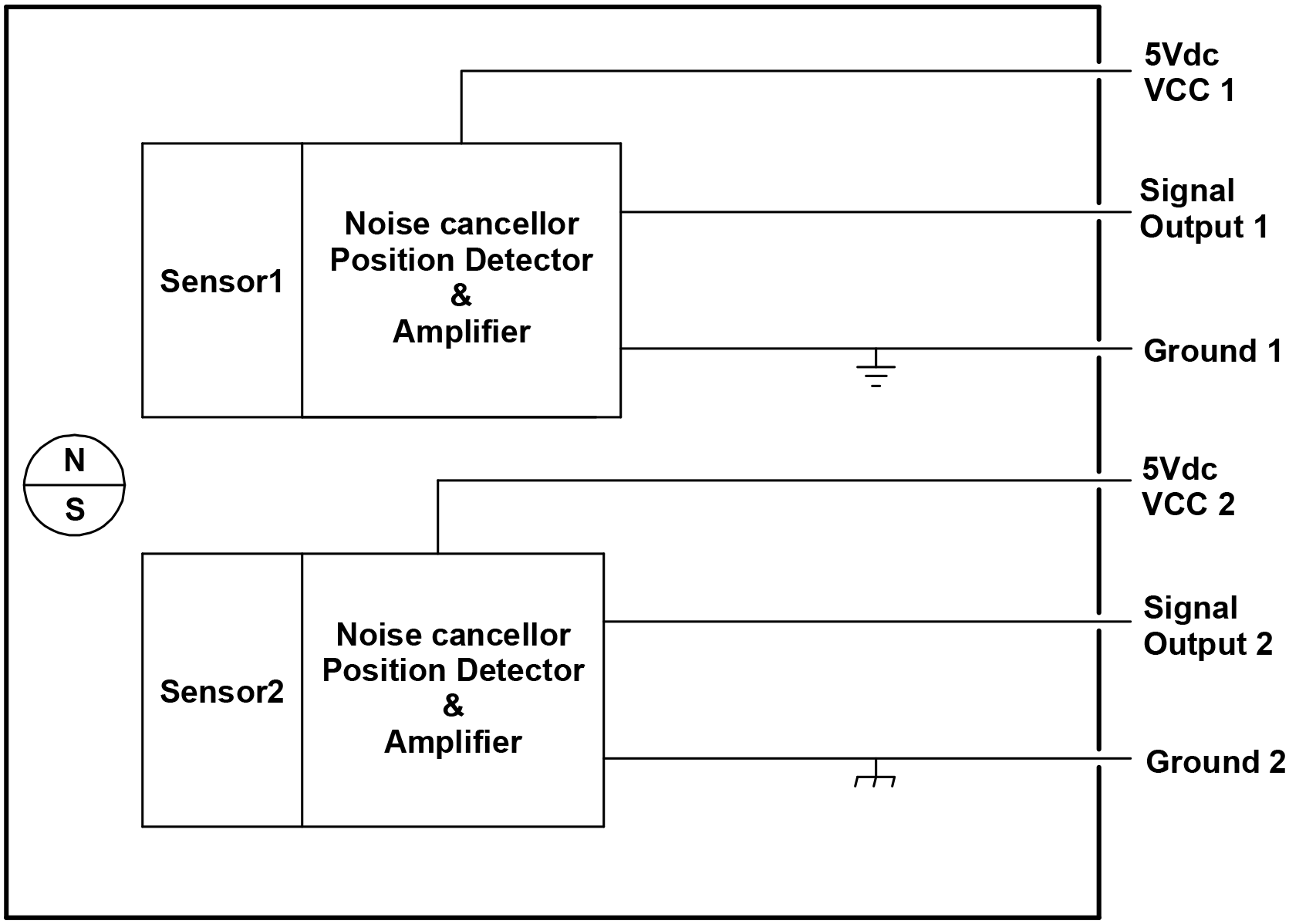

Wiring Diagram:
