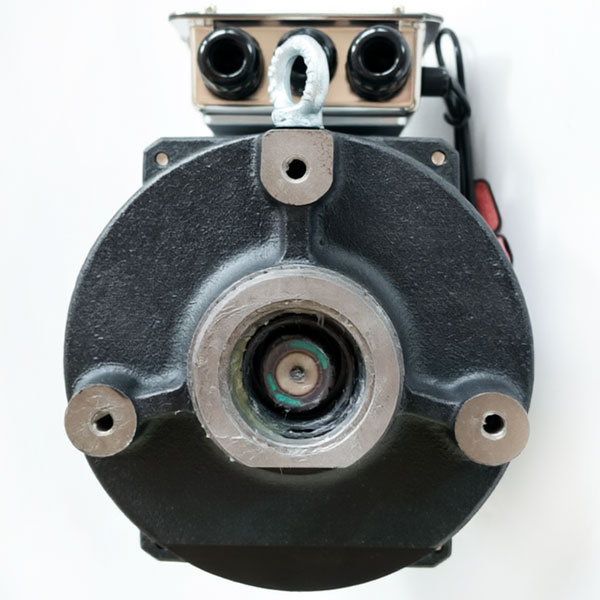

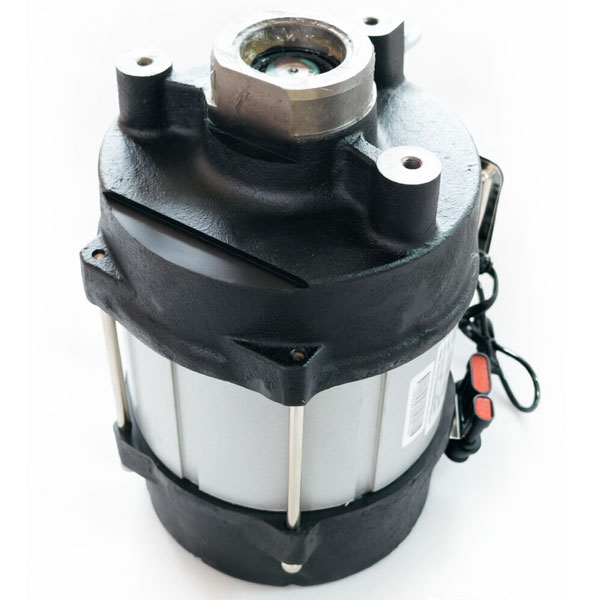

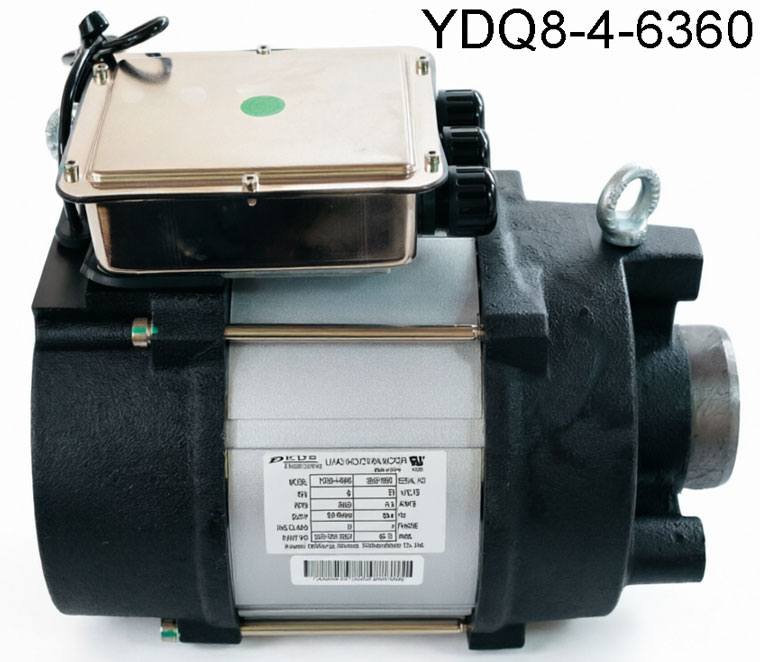

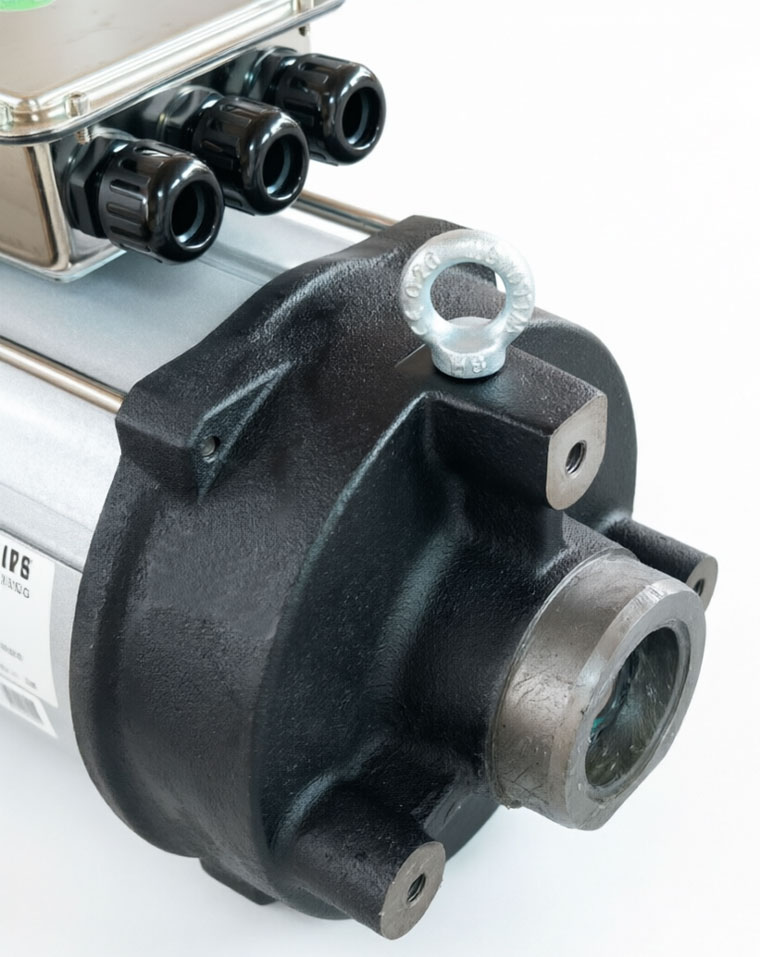

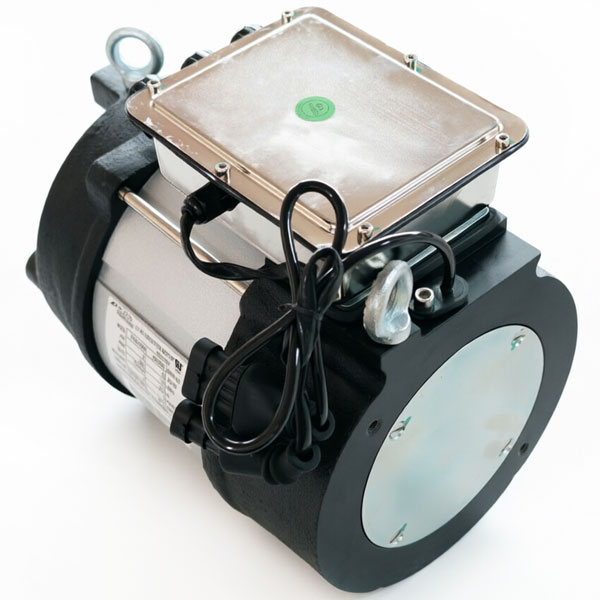

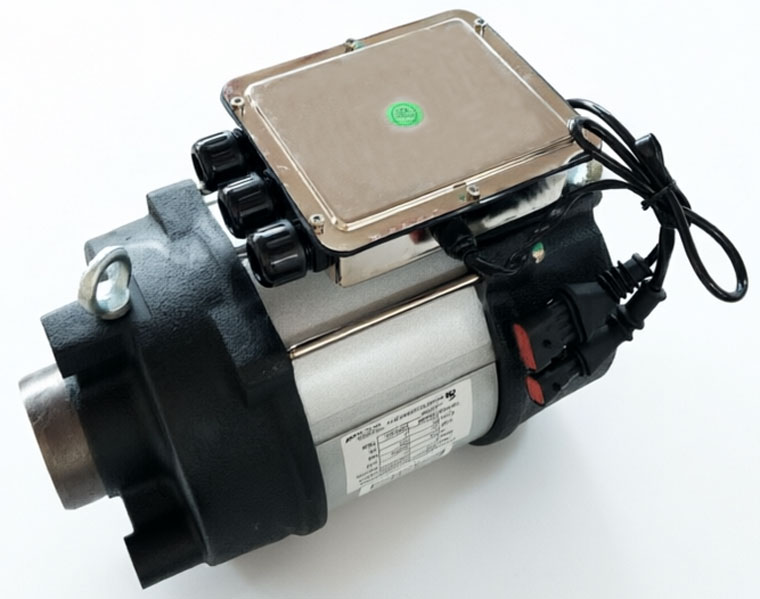

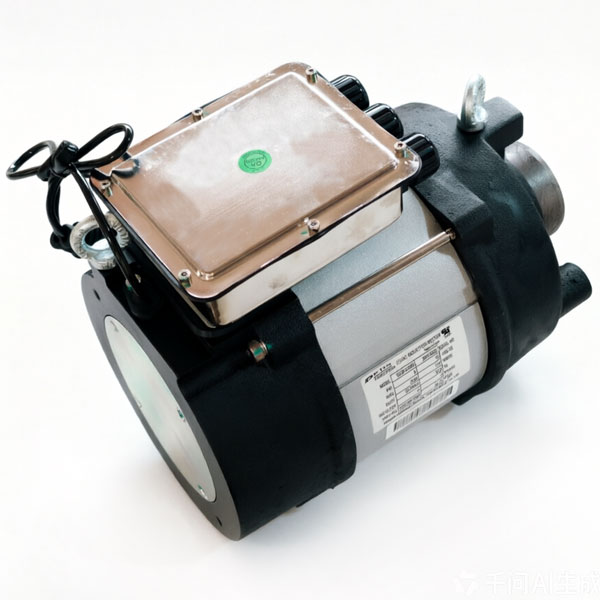

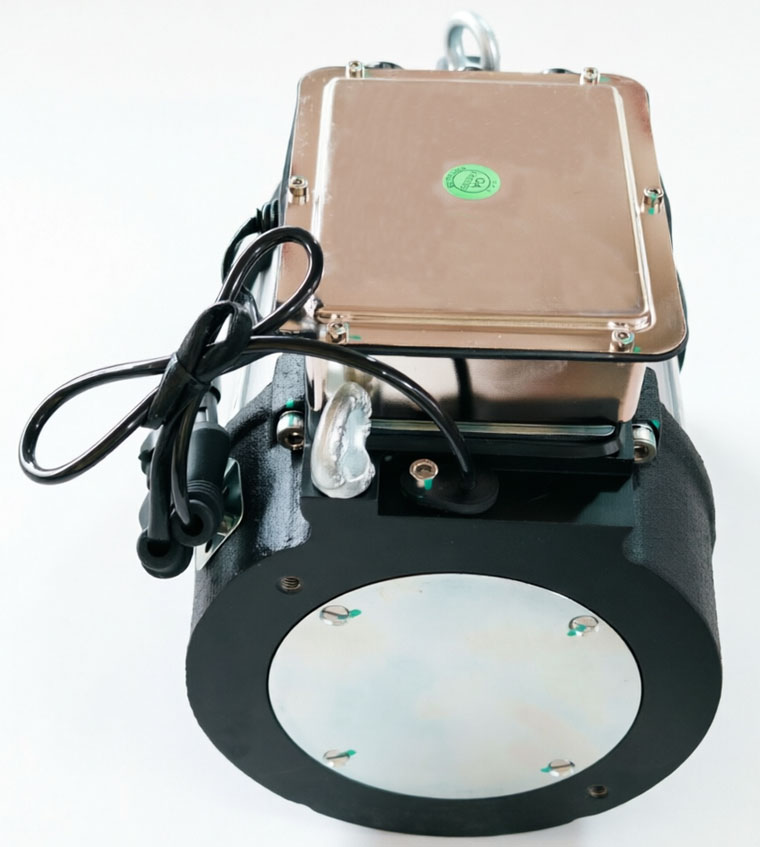

3-Phase AC Induction Motor YDQ8-4-6360

BYD electric forklift driving motor, speed sensor, temperature sensor

We supply also:

• KDS AC motor YDQ5-4-5685
• E-Z-GO AC motor 611355
• MAHLE AMT7132 (OEM P/N 11.217.328; E-Z-GO P/N 680638 / 666986)
• MAHLE AMT7167 (OEM P/N 11.217.229; E-Z-GO P/N 667276 / 681071)
• MAHLE MT7181 (OEM P/N 11.217.286, Letrika P/N IM7082)
• MAHLE AMT7320 (OEM traction motor for TOMBERLIN, OEM P/N 11.217.390; MAHLE P/N: MM 394; LETRIKA P/N: IM7071)

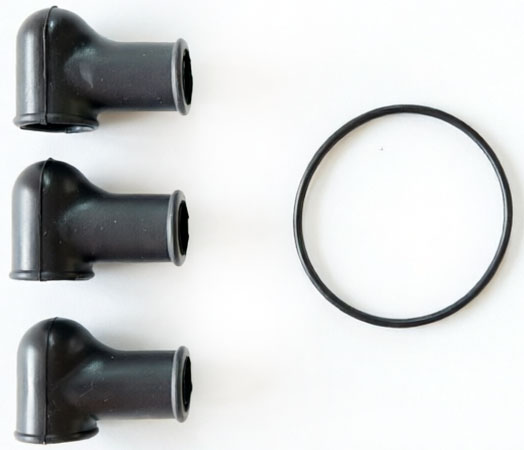

Spare Parts (included)

YDQ8-4-6360 is a Low Voltage AC (LVAC) Induction Motor.

Low voltage AC (LVAC) induction motors are the workhorse motor technology for many segments of the electric vehicle industry; providing a tough-to-beat balance of cost, performance, efficiency, reliability, mechanical simplicity, motor control simplicity and overall system cost.

AC induction motors are one of the simplest motor mechanical constructions available. They offer both a balanced 3-phase wound stator and cast rotor core. LVAC motors transfer electrical energy from stator to rotor without slip rings or brushes, making for smooth, quiet and reliable operation. Motors are designed to be maintenance-free for life with no wear parts or service items. The specify highly reliable temperature and speed sensors are available to provide dynamic data to the motor control.

Used as the driving motor of BYD electric forklift, YDQ8-4-6360 offers robust driving force to the forklift's driving system.

Specifications:

• Model: YDQ8-4-6360
• BYD part number:
  • 11261403-00 (LH) left drive motor
  • 11264548-00 (RH) right drive motor
  • Both part numbers 11261403-00 (LH) and 11264548-00 (RH) refer to the same motor model YDQ8-4-6360
• Motor type: 3-phase AC induction motor
• Nominal power rate: 8.0 kW
• Nominal voltage: 53V
• Current: 114A
• Duty: S2-60min
• Speed: 2460 rpm

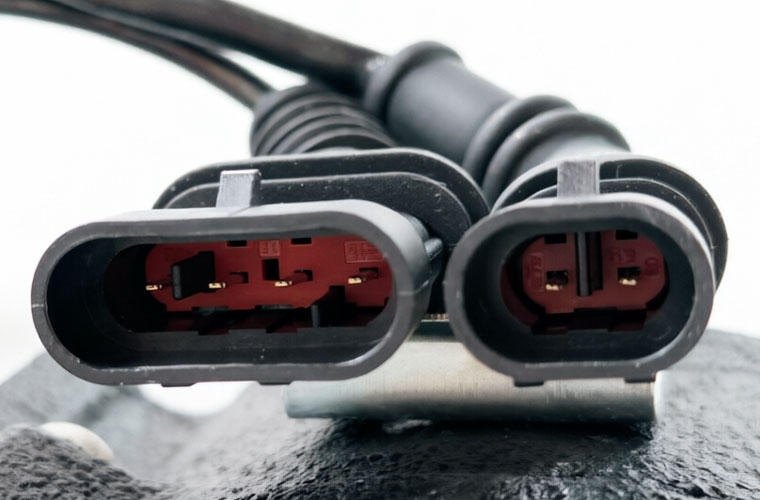

• Speed sensor & temperature sensor mating connectors is included
• Insulation: Class H
• Weight: 44.1 kg (package weight: 48 kg)

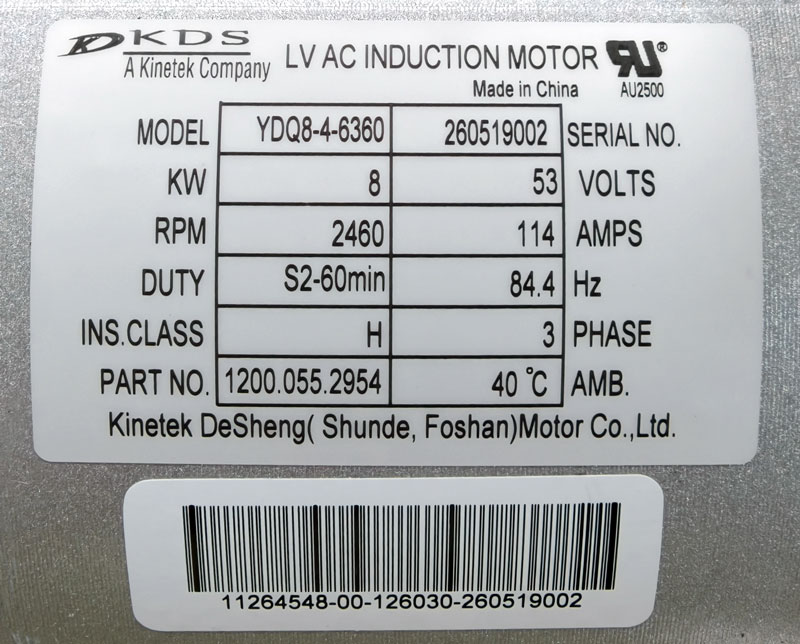

Motor Information Label:

3-Phase AC Induction Motor YDQ8-4-6360

BYD electric forklift driving motor, speed sensor, temperature sensor

We supply also:

• KDS AC motor YDQ5-4-5685
• E-Z-GO AC motor 611355
• MAHLE AMT7132 (OEM P/N 11.217.328; E-Z-GO P/N 680638 / 666986)
• MAHLE AMT7167 (OEM P/N 11.217.229; E-Z-GO P/N 667276 / 681071)
• MAHLE MT7181 (OEM P/N 11.217.286, Letrika P/N IM7082)
• MAHLE AMT7320 (OEM traction motor for TOMBERLIN, OEM P/N 11.217.390; MAHLE P/N: MM 394; LETRIKA P/N: IM7071)

YDQ8-4-6360 is a Low Voltage AC (LVAC) Induction Motor.

Low voltage AC (LVAC) induction motors are the workhorse motor technology for many segments of the electric vehicle industry; providing a tough-to-beat balance of cost, performance, efficiency, reliability, mechanical simplicity, motor control simplicity and overall system cost.

AC induction motors are one of the simplest motor mechanical constructions available. They offer both a balanced 3-phase wound stator and cast rotor core. LVAC motors transfer electrical energy from stator to rotor without slip rings or brushes, making for smooth, quiet and reliable operation. Motors are designed to be maintenance-free for life with no wear parts or service items. The specify highly reliable temperature and speed sensors are available to provide dynamic data to the motor control.

Used as the driving motor of BYD electric forklift, YDQ8-4-6360 offers robust driving force to the forklift's driving system.

Spare Parts (included)

Specifications:

• Model: YDQ8-4-6360
• BYD part number:
  • 11261403-00 (LH) left drive motor
  • 11264548-00 (RH) right drive motor
  • Both part numbers 11261403-00 (LH) and 11264548-00 (RH) refer to the same motor model YDQ8-4-6360
• Motor type: 3-phase AC induction motor
• Nominal power rate: 8.0 kW
• Nominal voltage: 53V
• Current: 114A
• Duty: S2-60min
• Speed: 2460 rpm
• Speed sensor & temperature sensor mating connectors is included
• Insulation: Class H
• Weight: 44.1 kg (package weight: 48 kg)

Motor Information Label:
