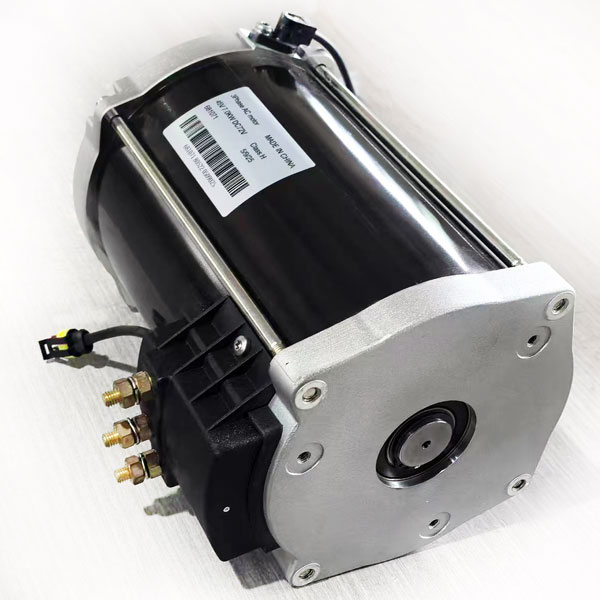

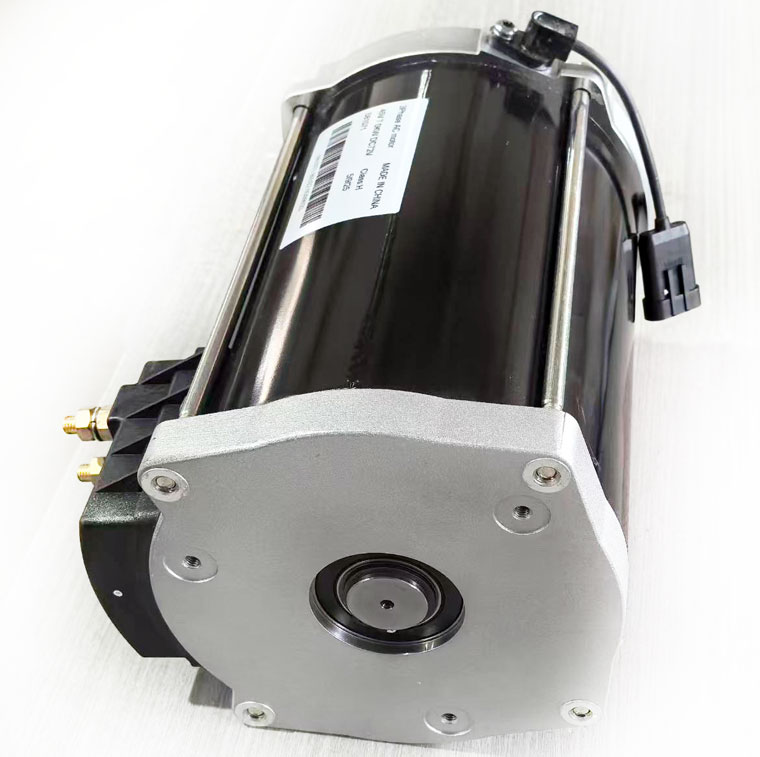

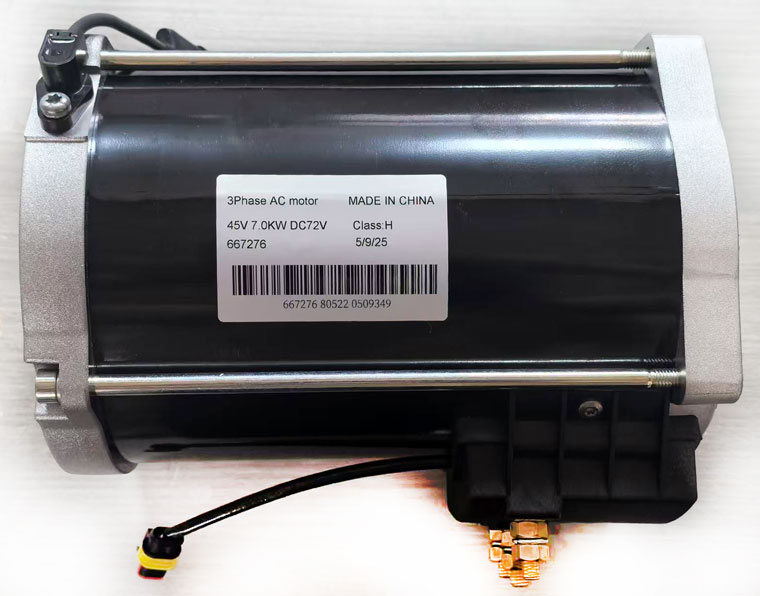

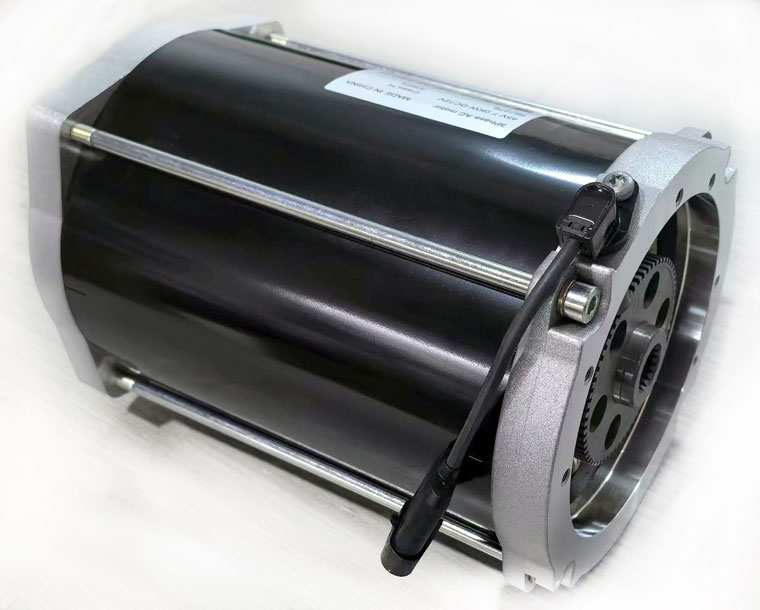

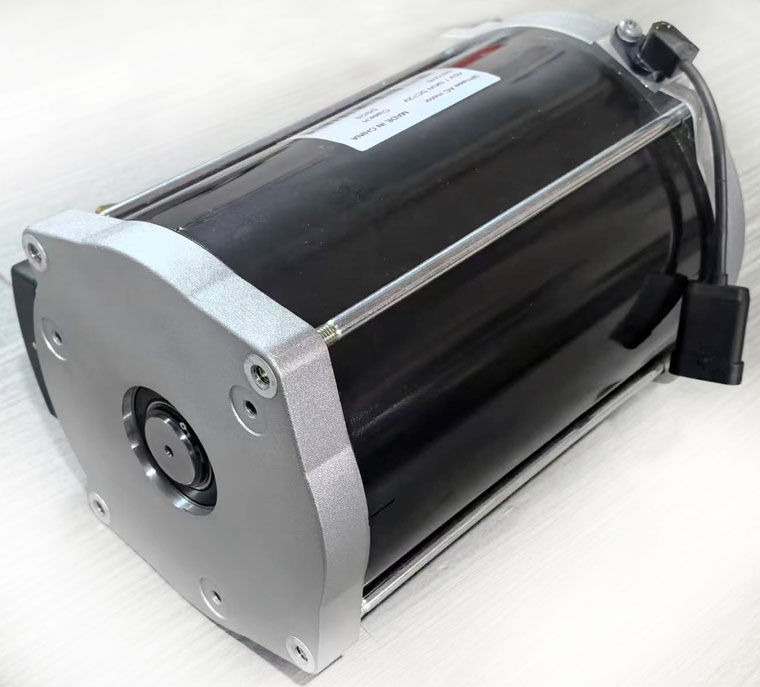

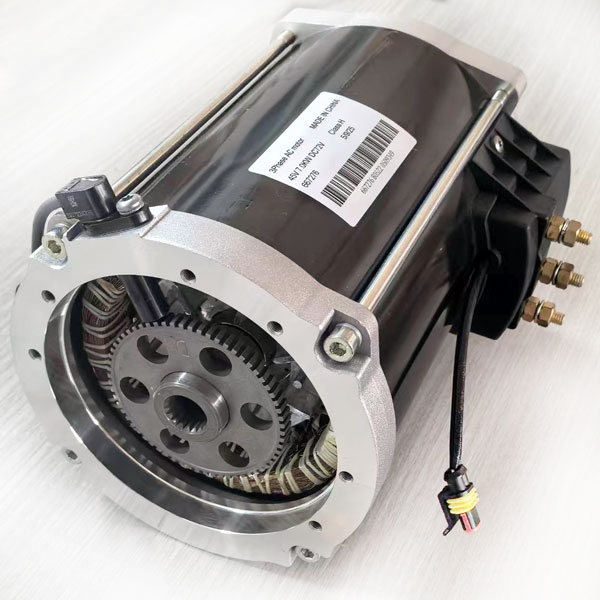

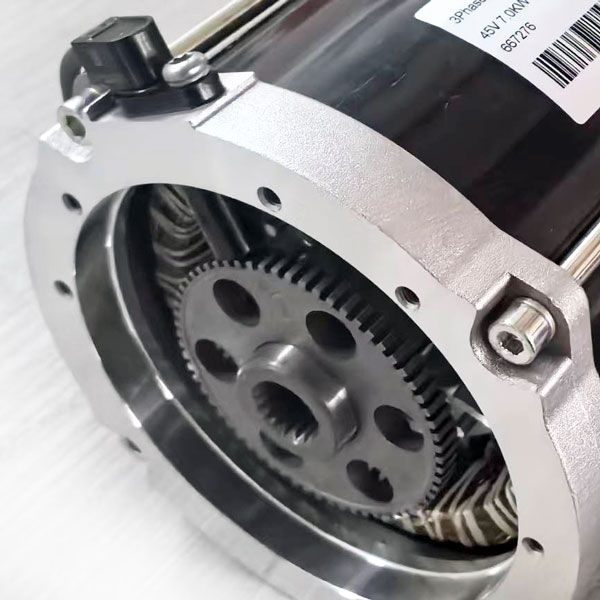

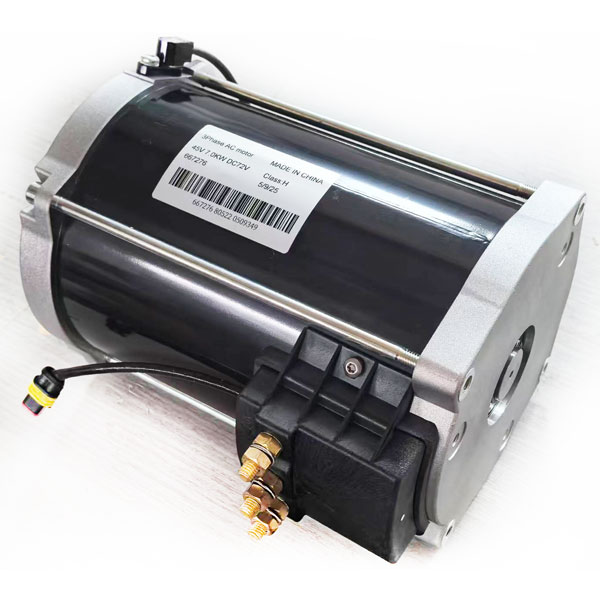

MAHLE 45V / 7.0kW Three Phase AC Motors AMT7167

E-Z-GO Part Number 667276 / 681071

72V Battery Powered E-Z-GO / CUSHMAN / TEXTRON AC Traction Motor

We supply also:

• MAHLE AMT7132 3-Phase AC motor, E-Z-GO Part Number 680638
• MAHLE AMT7320 3-Phase AC motor, TOMBERLIN golf cart traction motor, alternative for AMT7161 (OEM P/N 11.217.212) and AMT7148 (OEM P/N 11.217.185). All three motors (AMT7320, AMT7161, AMT7148) are available under MAHLE part number IM7071.
• MAHLE AMT7181 3-Phase AC motor
• MAHLE AMT7156 3-Phase AC motor, E-Z-GO part number 611355, LETRIKA OEM P/N 11.217.206
• KDS YDQ5-4-5685 3-Phase AC motor, EXCAR golf cart traction motor

AC induction machines are popular due to their simplicity, reliability, and direct operation from an AC line voltage. More and more, AC motors are used in battery powered vehicles. For some electric car makers, almost all car models are driven by AC motors.

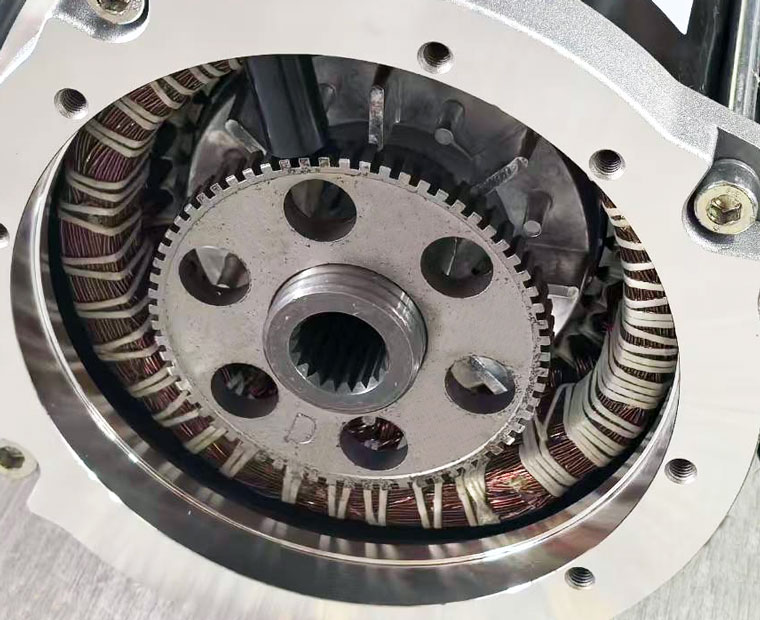

Equipped with a high resolution speed encoder (64 pulses, direction determined with A and B channels), MAHLE 3-Phase AC Motors AMT7167 are used as E-Z-GO golf cart traction motors. Typical applications include:

• E-Z-GO 2018-2022 Express S2, S4, S6, L6
• E-Z-GO 2017-2022 TXT Freedom & Shuttle 2+2
• E-Z-GO 2024-2025 Express Valor 6
• E-Z-GO 2025 Express 6 ELiTE
• CUSHMAN 2017-2025 AC TUG
• CUSHMAN 2016-2022 Hauler Pro, Pro X
• CUSHMAN 2022-2025 Hauler Pro, Pro X, Pro LSV ELiTE
• CUSHMAN 2025 Hauler XL ELiTE
• CUSHMAN 2019-2025 TITAN XD 48V AC
• CUSHMAN 2023-2025 Refresher Oasis ELiTE
• CUSHMAN 2018-2022 Shuttle 4/6/8
• CUSHMAN 2018-2025 Shuttle 4/6 ELiTE

Specifications:

• Motor brand: MAHLE
• Model: AMT7167 (OEM part number 11.217.229)
• E-Z-GO part number: 667276 and 681071
• Motor type: three phases AC motor
• Nominal power rate: 45V 7.0kW
• E-Z-GO / CUSHMAN vehicle battery voltage: 72V
• Spline teeth number: 19
• Speed sensor: power supply 4.5 - 24V DC; 64 pulses / A & B channels
• Temperature sensor: Thermosensor PT1000
• Speed sensor and thermosensor mating connectors are included
• Insulation: class H
• Net weight: 27.5 kg
• Package weight: 30.5 kg

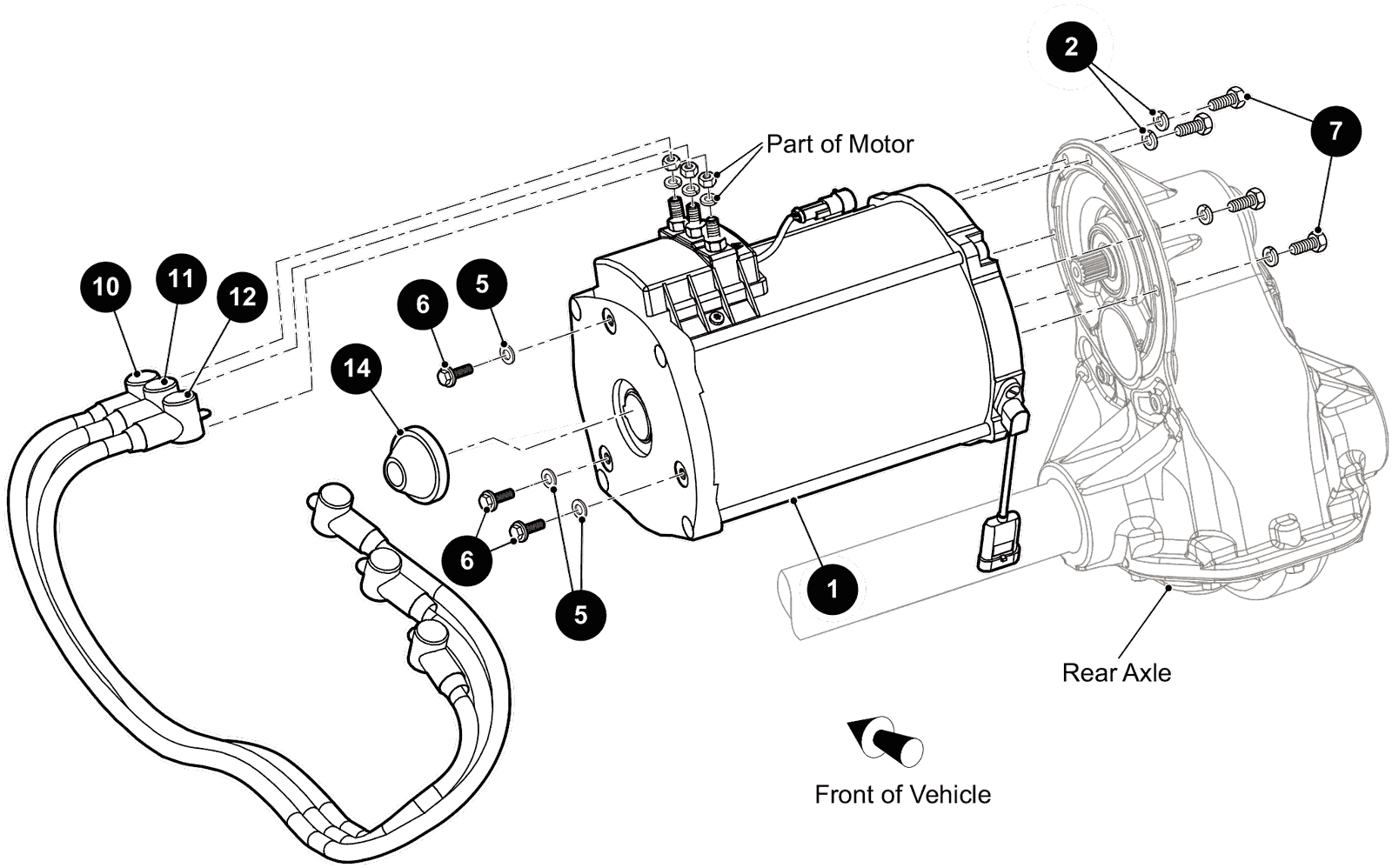

Application diagram:
