6206 Encoder Bearing

4-Wire 2-Channel Pulse Encoder, 64-Pulse Per Rotation

Mating connector is included

Similar to NTN encoder U-RSH206-40V1, this encoder bearing does not have a snap ring groove on its bearing body. If you need an encoder bearing with snap ring groove, please contact us.

Mating Connector

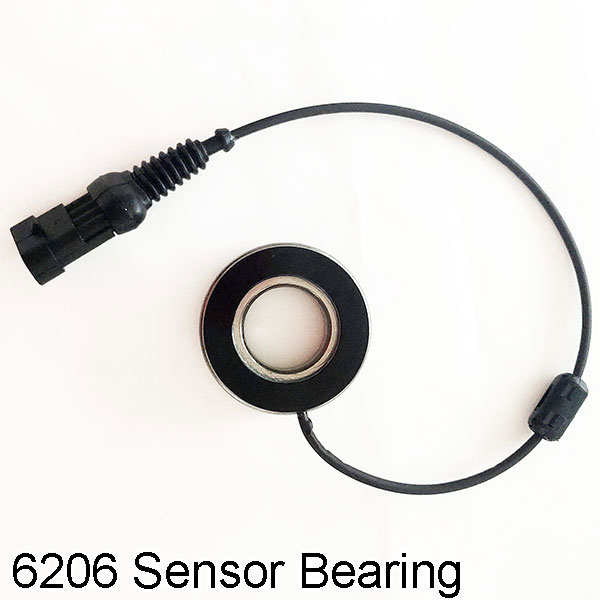

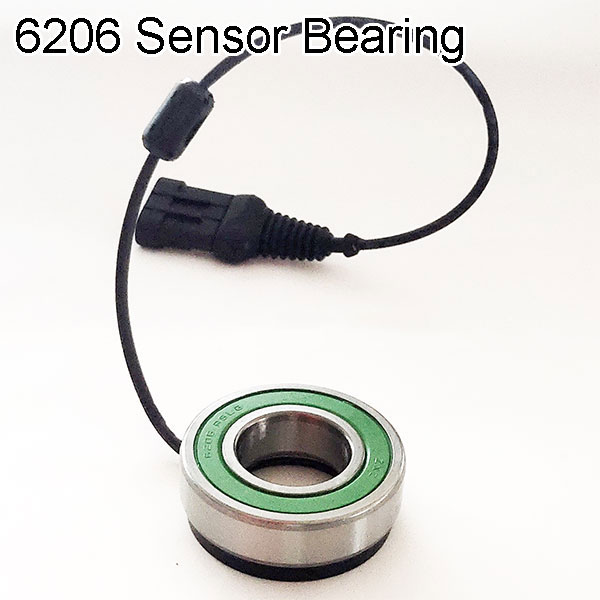

Compatible with SKF BMB-6206/064S2/UA108A or BMO-6206/064S2/UA108A, the 6206 sensor bearing consists of a ball bearing with a magnetic encoder to detect rotating speed and rotating direction.

• Model: NOCO-6206/064S2/UA108A, interchangeable with SKF 6206 encoder and NSK 6206V encoder:
  • with AMP 4-Pin connector, replacing BMO-6206/064S2/UA108A, BMO-6206/064S2/UA106A and BMD-6206/064S2/UA108A
  • free cable end (without connector), replacing BMO-6206/064S2/UA008A, BMO-6206/064S2/UA002A and BMD-6206/064S2/EA008A
• Bearing: deep groove ball bearing 6206
• Number of pulses: 64 pulses / rotation
• Output pulse: channels A and B (phase shift: 90° ± 30°)
• Pitch accuracy: ± 5%
• Duty ration: 50 ± 15%
• Working voltage: DC 5V to 24V
• Output current: less than 20mA
• Operation temperatures: -40°C to 120°C
• Connector: 4-wire AMP waterproof connector
• Net weight: 240 g

6206 Encoder Bearings use a compact and robust sensor that produces an incremental encoder signal. The sensor is accurate down to zero r/min. An integrated active circuit (requiring an external voltage supply) in the sensor body contains two Hall effect cells that produce an output signal consisting of two square waves.

The signals can be interpreted by motor controllers in different ways:

• The direction of rotation can be determined from the phase shift, when the rising edge of a signal first appears.
• Slow speeds can be determined by measuring the time between two electrical events, events being the rising and falling edge on either square wave.
• High speeds can be measured by counting the number of electrical events within a given time period.

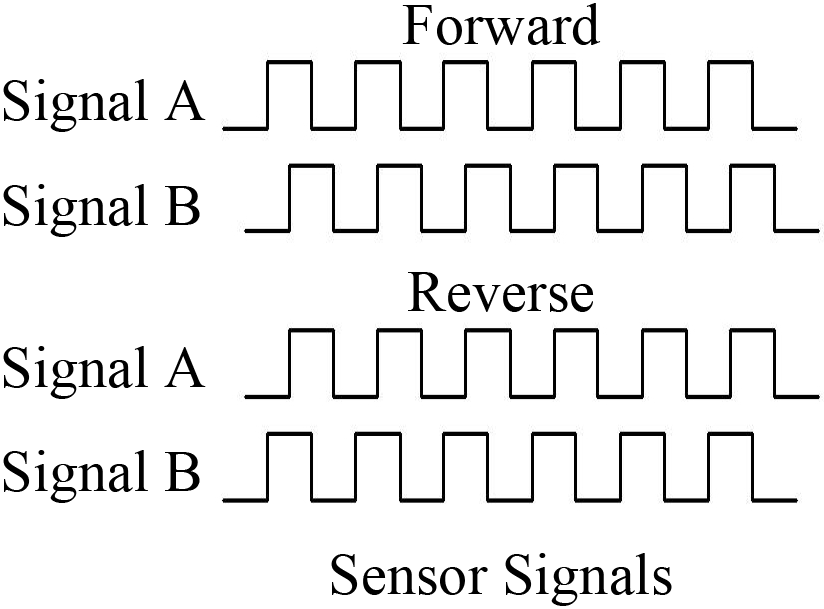

The two square waves are 90° out of phase with each other. This phase shift changes sign with the direction of rotation. The presence of two signals in quadrature enables a processing unit to multiply the number of angular position increments per revolution. For example, using a standard sensor bearing with 64 pulses per revolution and a standard electronic interface that can detect the rising (Low/High) and falling (High/Low) times of each of the two signals, it is possible to obtain 256 electrical events per revolution, which translates to an angular resolution of 1,4°.

Dimensions:

Cable connection:

6206 encoder bearing units are available as standard with an AMP Superseal™ connector (AMP Nos. 282106-1 and 282404-1). If you want to buy the encoders without connector (free cable end), please contact us.
