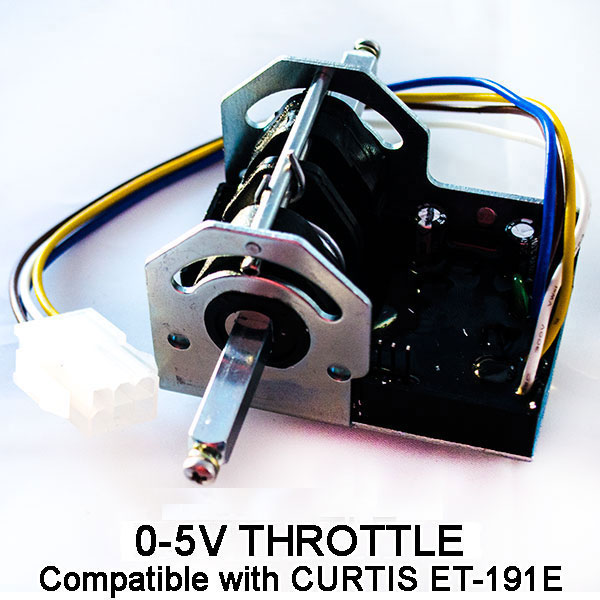

0-5V Hall-Effect Throttle
Model: ET01316
Compatible With CURTIS ET-191E
Lowest Unit Price 42.00 USD
1 / 4
CURTIS ET-191E 0-5V Hall-Effect Throttle, Non-Contact Voltage Throttle With Forward And Reverse Signals
2 / 4
CURTIS ET-191E 0-5V Hall-Effect Throttle, Non-Contact Voltage Throttle With Forward And Reverse Signals
3 / 4
CURTIS ET-191E 0-5V Hall-Effect Throttle, Non-Contact Voltage Throttle With Forward And Reverse Signals
4 / 4
CURTIS ET-191E 0-5V Hall-Effect Throttle, Non-Contact Voltage Throttle With Forward And Reverse Signals
Quantity Option
Secured Payment of PayPal, VISA, MASTERCARD

ET01316, Wig-Wag Type 0-5V Throttle

Compatible with CURTIS ET-191E, pallet truck / stacker part

Mating Connector Of Throttle ET-191E
Mating Connector

Compatible with CURTIS ET-191E, the throttle assemblies ET01316 provide an analog 0-5V output proportional to throttle position for interfacing with CURTIS PMC motor speed controllers. Used as electric pallet stacker / truck part, golf cart part and electric mobility vehicle part, ET01316 sends accelerating / deaccelerating signals to motor controllers or vehicle control units.

Specifications:

  • 2024-02-26T00:00:00+00:00Model: ET01316 (compatible with CURTIS ET-191E and DT DTJ07428)
  • Input voltage (volt): 24-48V DC (16-60V DC)
  • Signal output: 0-5V (0.5-4.5V)
  • Symmetrical throttle response in both directions
  • With mating connector
Optional operating handles (the handles are sold in pairs, one left and one right):
Operating Handle for Hall-Effect Throttle (Foot Pedal) ET-191E Operating Handle for Hall-Effect Throttle (Foot Pedal) ET-191E Operating Handle for Hall-Effect Throttle (Foot Pedal) ET-191E Operating Handle for Hall-Effect Throttle (Foot Pedal) ET-191E

Key Features:

Mating Connector Of Throttle ET-191E
compatible with CURTIS ET-191E
  • Model: ET01316 (compatible with CURTIS ET-191E and DT DTJ07428)
  • Hall effect sensors and solid state MOSFET contactor drivers minimize moving parts, thereby increasing reliability and Mean Time Between Failure.
  • Symmetrical throttle response in both forward and reverse directions ensures smooth, concise acceleration and deceleration in both directions.
  • Minimal deadband areas at both zero and full throttle positions eliminates hesitation when beginning to accelerate or decelerate.
  • Environmental protection of major components through an epoxy layer over the circuit board assures operation in harsh environmental conditions.
  • Wig-wag type throttle returns the throttle to neutral for convenience and safety.
  • Input polarity protection to ensure no damage occurs to the throttle if it is incorrectly wired.
  • Easy to install.

Connector Wiring:

Wiring of 6-Pin connector of CURTIS throttle ET-191E

Dimensions:

Dimensions of CURTIS throttle ET-191E, Dimensions of Throttle ET01316
