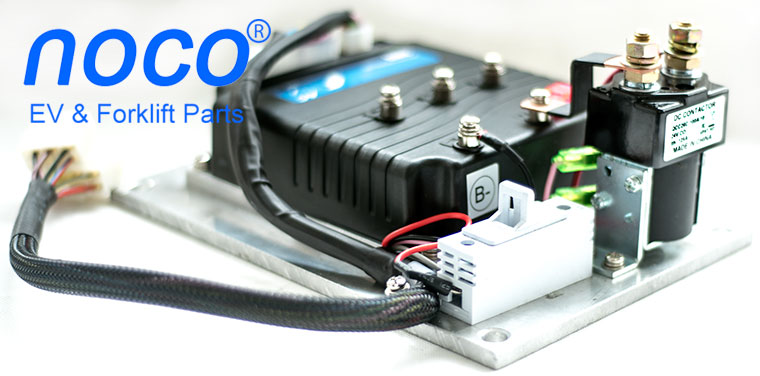

CURTIS 24V AC Controller Assemblage 1230-2402

Pallet stacker & forklift AC motor speed controller unit

Overview:

The CURTIS motor controller assemblage model 1230-2402 is a full function 24V AC induction motor speed control unit, designed for motor driving purpose of variable battery powered mobility vehicles. Typical applications include walkie/rider pallet trucks, low lifts, stackers, sweeper / scrubber machines, and other small industrial vehicles. This high performance programmable controller assemblage is simple to install, efficient, and cost effective.

Key Features:

• CURTIS Model: 1230-2402
• Operating voltage range: 16 to 32 V
• Nominal input voltage: 24 V
• 2 Minute Current Rating (amps): 200
• 1 Hour Current Rating (amps): 80
• Proposed motor power rates:
  • Mininum: 300W
  • Maximum: 2000W
• MOSFET overtemperature cutback: linear cutback starts at 100°C; complete cutoff at 110°C
• MOSFET undertemperature cutback: approx. 50% motor current at -25°C; complete cutoff at -40°C
• Working with 0-5V electric throttles. Recommended models:
  • CURTIS ET-126 MCU
  • CURTIS ET-165 MCU
  • 0-5V Throttle DTJ07401B-H (compatible with CURTIS ET-126 MCU)
  • Tiller head with mode selection switch: CH-1-1
• Ambient Operating Temperature Range: -40°C to 50°C

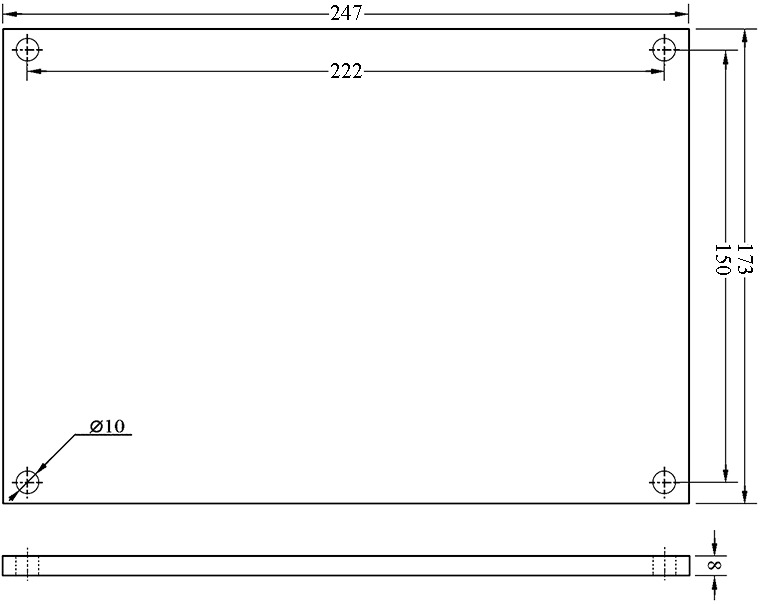

• Installation panel dimensions: L247 x W173 x H8 mm
• The installation kit (bolts, nuts and washers) and mating connectors are included
• Net Weight: 2.7 kg (not including the throttle)

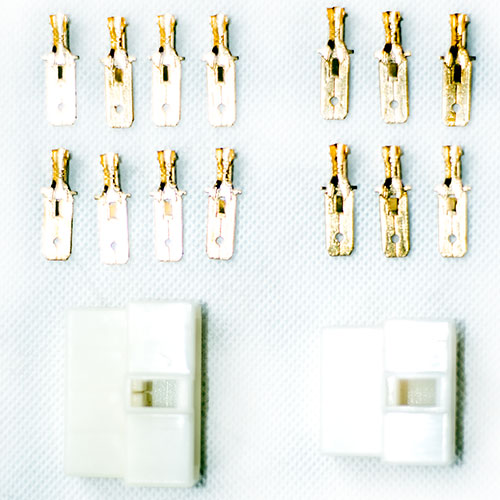

Mating connectors:	Wiring instructions:

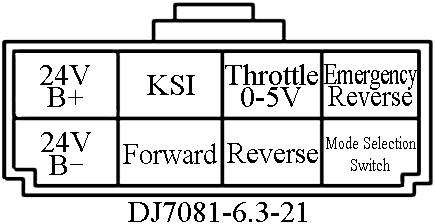

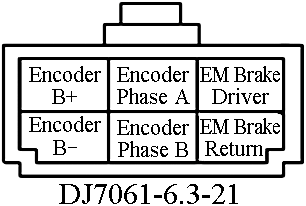

	8-Pin Connector 6-Pin Connector

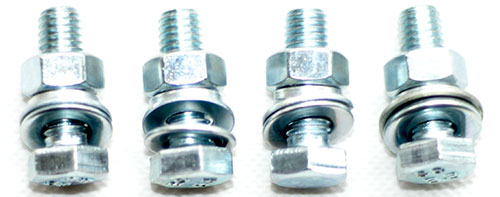

Installation kit:
