ZQS36-3.0C-T / DE2-4007, 36V DC SepEx Motor

EZGO 73124-G01, fit E-Z-GO TXT PDS 2000-Up models

The DC SepEx motor ZQS36-3.0C-T is developed as the traction motor of golf carts and electric mobility vehicles. Since its early conception, ZQS36-3.0C-T is expected to be a general replacement of E-Z-GO and Club Car 36V 4HP (or smaller power rate) DC SepEx motors.

ZQS36-3.0C-T is fully compatible with E-Z-GO part numbers listed below:

• E-Z-GO 73124-G01
• E-Z-GO 73124-G08
• E-Z-GO 73445-G02
• E-Z-GO 73121-G01

ZQS36-3.0C-T can replace motor models as listed below:

• GE 5BC48JB1161
• AMD AY4-4001
• AMD DE2-4007
• AMD DE3-4009A
• AMD DE4-4001-S (a speed sensor should be added to the motor)
• AMD DE4-4011
• AMD DE8-4001
• AMD EV6-4001 (a speed sensor should be added to the motor)
• YACO ZQS36-3.0C-T

Note: when work with E-Z-GO PDS (Precision Drive System) system, please make sure that your cart has a 73326-G02 (73326-G03 / 73326-G07) controller.

Specifications:

• Model: ZQS36-3.0C-T
• Nominal power rate: 3.0kW
• Operating voltage: 36V
• Spline: 19 teeth
• Rated speed: 2600 rpm
• Field current: 10A
• Armature current: 110A
• Duty: S2-30MIN
• Insulation: class H
• Package weight: 23.5 kg

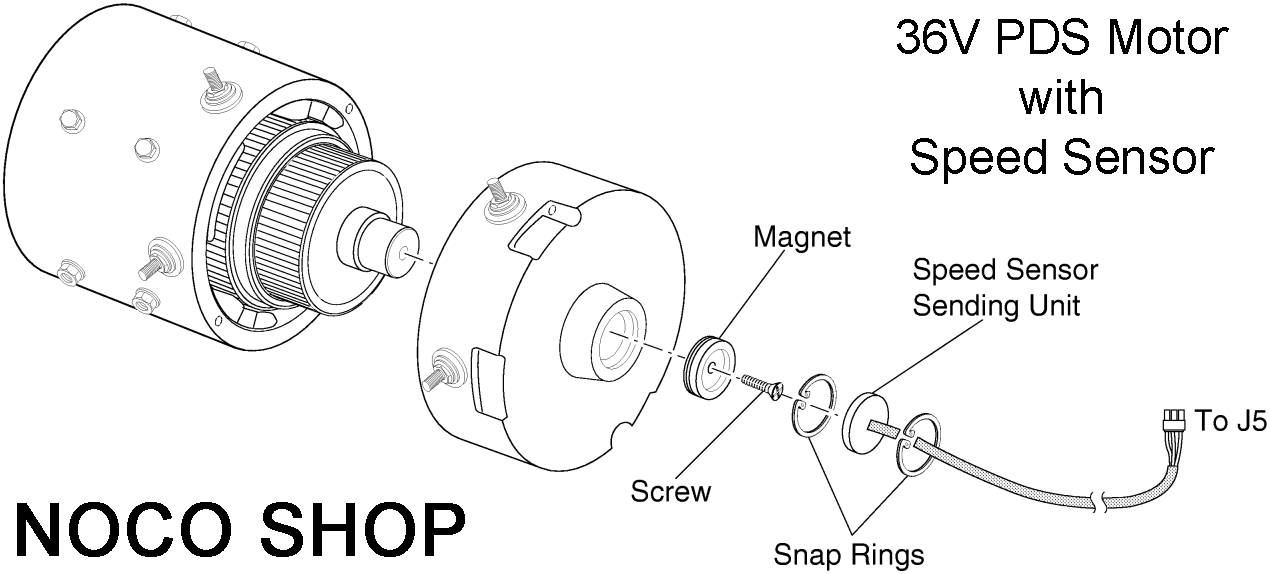

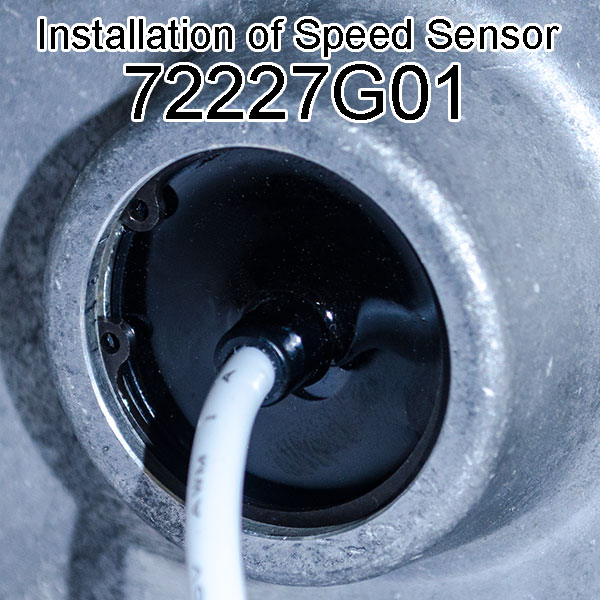

Working with E-Z-GO Speed Sensor 73327G01

ZQS36-3.0C-T is also compatible with multiple part numbers in other differet brands

• Luna L75-1057R
• Luna L75-1018R
• YAMAHA 170-505-0001

ZQS36-3.0C-T / DE2-4007, 36V DC SepEx Motor

EZGO 73124-G01, fit E-Z-GO TXT PDS 2000-Up models

The DC SepEx motor ZQS36-3.0C-T is developed as the traction motor of golf carts and electric mobility vehicles. Since its early conception, ZQS36-3.0C-T is expected to be a general replacement of E-Z-GO and Club Car 36V 4HP (or smaller power rate) DC SepEx motors.

ZQS36-3.0C-T is fully compatible with E-Z-GO part numbers listed below:

• E-Z-GO 73124-G01
• E-Z-GO 73124-G08
• E-Z-GO 73445-G02
• E-Z-GO 73121-G01

ZQS36-3.0C-T can replace motor models as listed below:

• GE 5BC48JB1161
• AMD AY4-4001
• AMD DE2-4007
• AMD DE3-4009A
• AMD DE4-4001-S (a speed sensor should be added to the motor)
• AMD DE4-4011
• AMD DE8-4001
• AMD EV6-4001 (a speed sensor should be added to the motor)
• YACO ZQS36-3.0C-T

Note: when work with E-Z-GO PDS (Precision Drive System) system, please make sure that your cart has a 73326-G02 (73326-G03 / 73326-G07) controller.

Specifications:

• Model: ZQS36-3.0C-T
• Nominal power rate: 3.0kW
• Operating voltage: 36V
• Spline: 19 teeth
• Rated speed: 2600 rpm
• Field current: 10A
• Armature current: 110A
• Duty: S2-30MIN
• Insulation: class H
• Package weight: 23.5 kg

Working with E-Z-GO Speed Sensor 73327G01

ZQS36-3.0C-T is also compatible with multiple part numbers in other differet brands

• Luna L75-1057R
• Luna L75-1018R
• YAMAHA 170-505-0001
