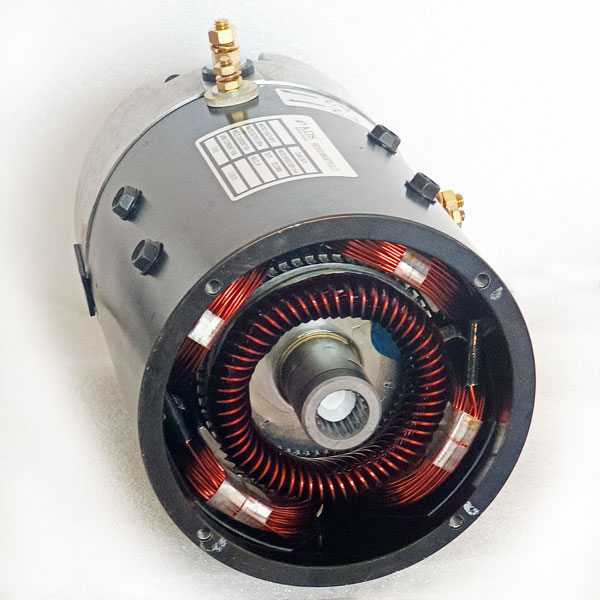

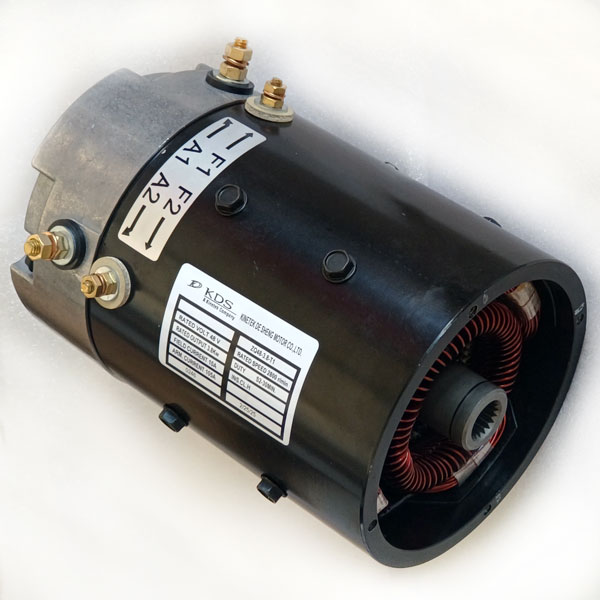

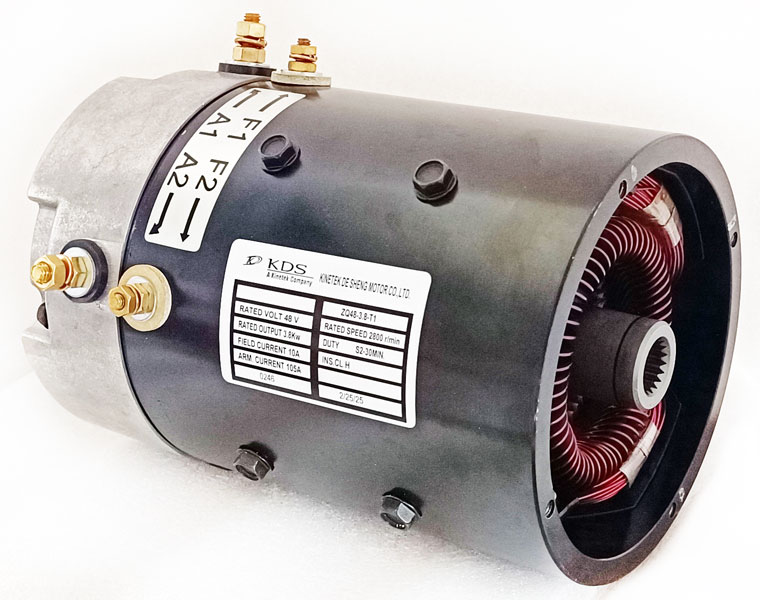

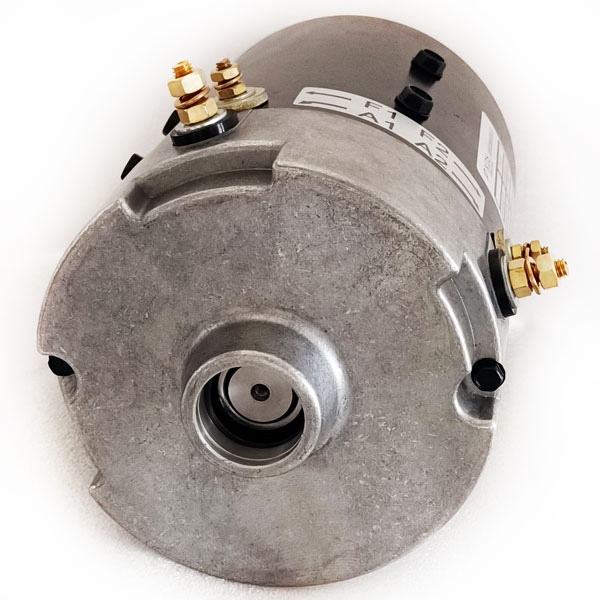

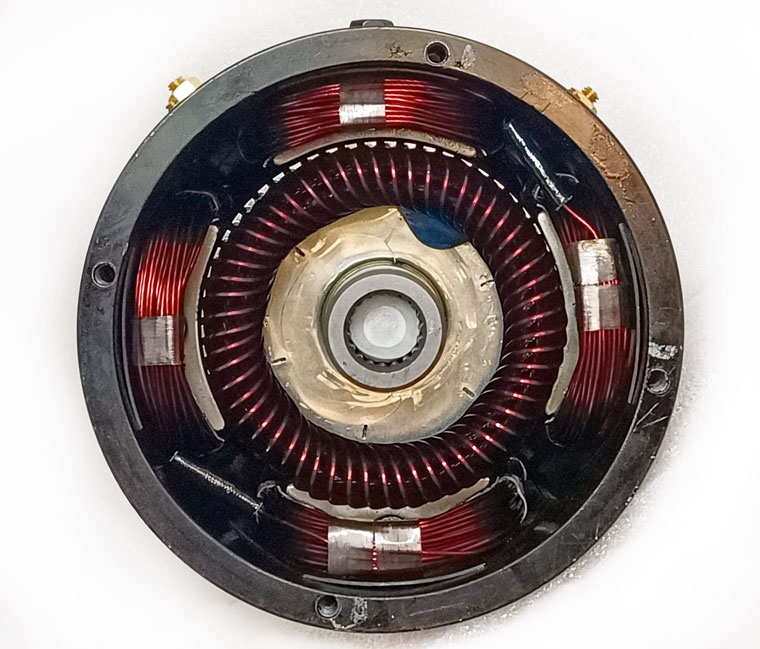

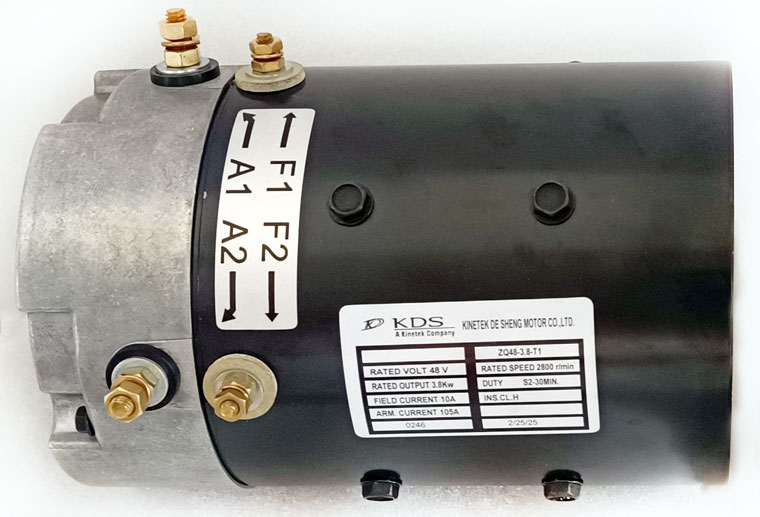

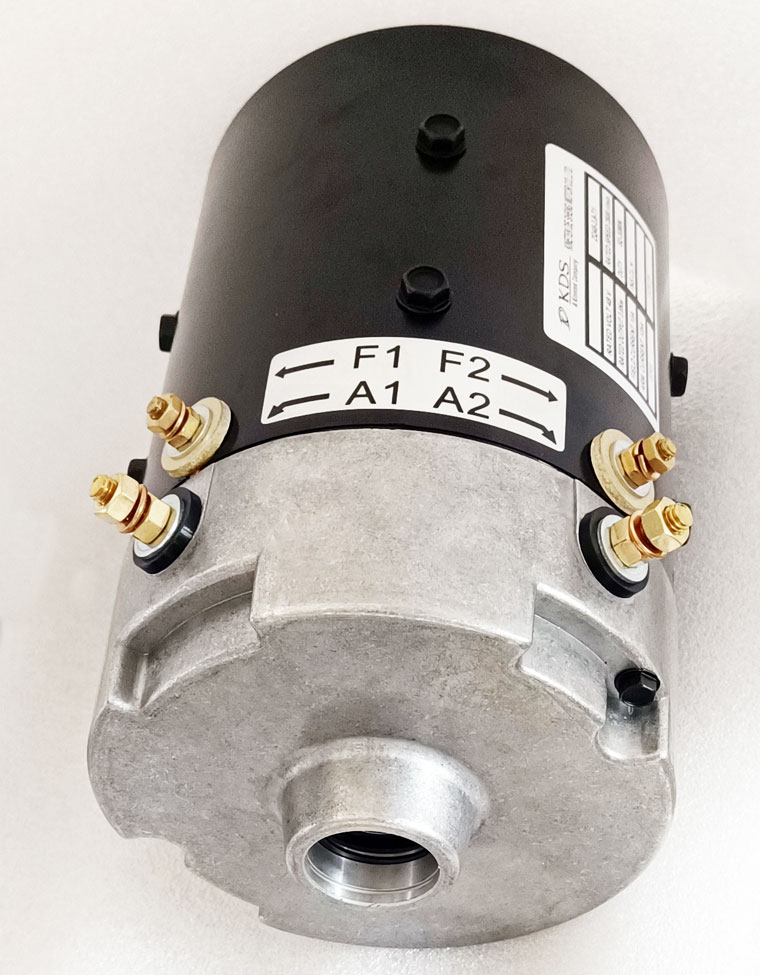

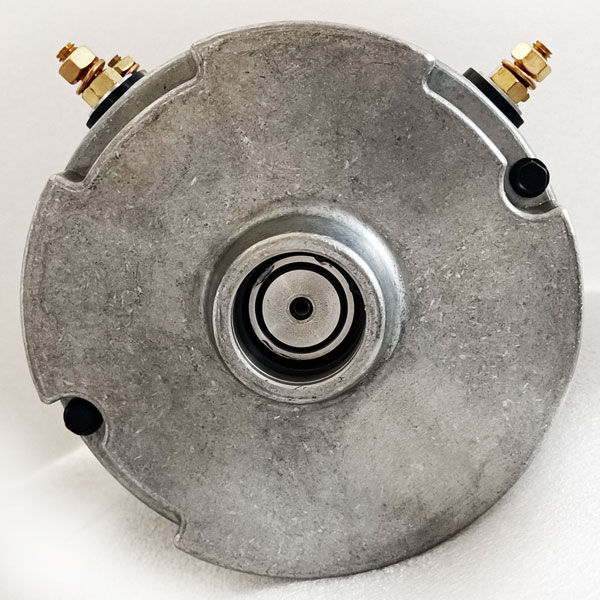

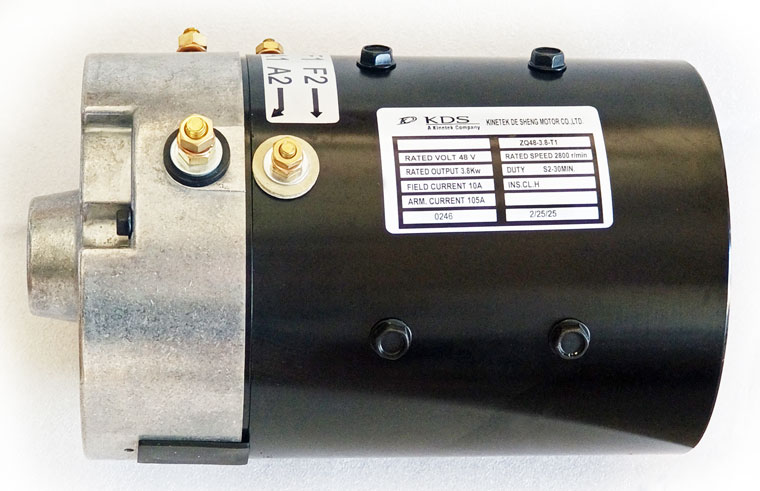

KDS 48V SepEx Motor ZQ48-3.8-T1

Alternative of ZQS48-3.8C-T1; replacement of E-Z-GO traction motor, part number 612624 / 624105 (AMD DL9-4006)

Speed Sensor Kit

The DC SepEx motor ZQ48-3.8-T1 is developed as the traction motor of golf carts and electric mobility vehicles. Since its early conception, ZQ48-3.8-T1 is expected to be a general replacement of E-Z-GO DC SepEx motor 612624 or 624105 (AMD DL9-4006).

ZQ48-3.8-T1 is fully compatible with motors listed below:

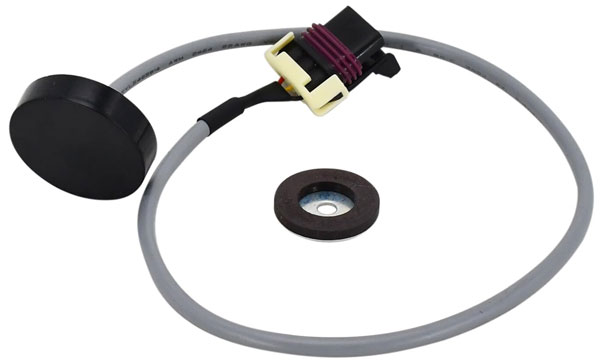

• E-Z-GO 612624 (working with motor speed sensor 620422 and speed sensor magnet 73328G01)
• E-Z-GO 624105 / AMD DL9-4006 (working with motor speed sensor 620422 and speed sensor magnet 73328G01)
• KDS ZQS48-3.8C-T1
• D & D Motor Part Number: 170-505-0001

Specifications:

• Model: ZQ48-3.8-T1
• Nominal power rate: 3.8kW
• Operating voltage: 48V
• Spline: 19 teeth
• Rated speed: 2800 rpm
• Field current: 10A
• Armature current: 105A
• Duty: S2-30MIN
• Insulation: class H
• Package weight: 26.5 kg
