Power Connector YEEDA Y60

40A DC power connector, plug + socket, with socket waterproof protection

Dimensions of Contact Pin

Y60 waterproof connectors are designed for electric vehicle battery charging purpose, is widely used as golf cart and ATV onboard / portable battery charger connectors. Its special key mating design and "power on" LED indicator make the DC power charging application easier to install and connect / disconnect.

Key features

• Brand: YEEDA
• Model: Y60 Power Connector & Socket
• Wiring size: ≤ 9.5 mm²
• 2-Pole & 3-Pole options available:
  • 2-Pole: golf cart and ATV onboard battery charger
  • 3-Pole: the 3rd pole (rated for 16A) could be used as the input of charging inhibit, or as the driver of charger "Power ON / OFF" indicator
• Nominal Current Rating: 40A
• Working Voltage: 24V / 36V / 48V / 60V / 72V
• IP67 Waterproof Design

Recommended wiring sizes (copper wire):

Comparison View of 2-Pin & 3-Pin Y60:

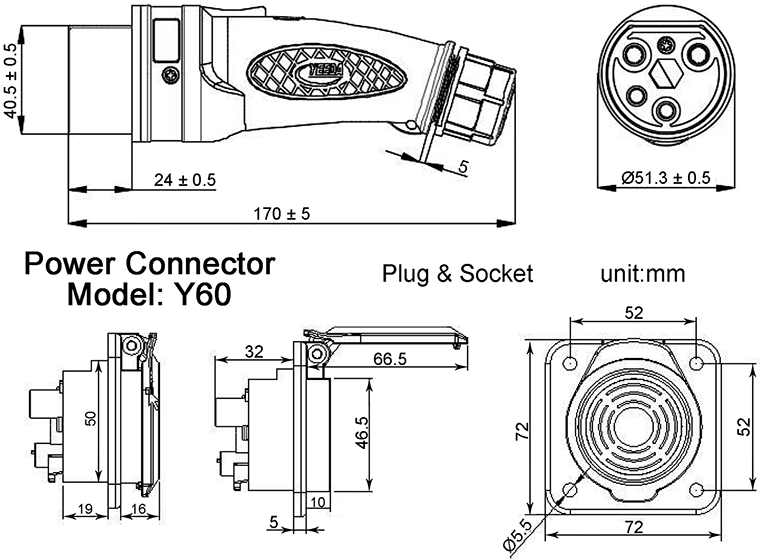

Dimensions:

Power Connector YEEDA Y60

40A DC power connector, plug + socket, with socket waterproof protection

Y60 waterproof connectors are designed for electric vehicle battery charging purpose, is widely used as golf cart and ATV onboard / portable battery charger connectors. Its special key mating design and "power on" LED indicator make the DC power charging application easier to install and connect / disconnect.

Dimensions of Contact Pin

Key features

• Brand: YEEDA
• Model: Y60 Power Connector & Socket
• With socket waterproof protecting cover
• 2-Pole & 3-Pole options available:
  • 2-Pole: golf cart and ATV onboard battery charger
  • 3-Pole: the 3rd pole (rated for 16A) could be used as the input of charging inhibit, or as the driver of charger "Power ON / OFF" indicator
• Nominal Current Rating: 40A
• Working Voltage: 24V / 36V / 48V / 60V / 72V
• IP67 Waterproof Design

Recommended wiring sizes (copper wire):

Comparison View of 2-Pin & 3-Pin Y60:

Dimensions:
