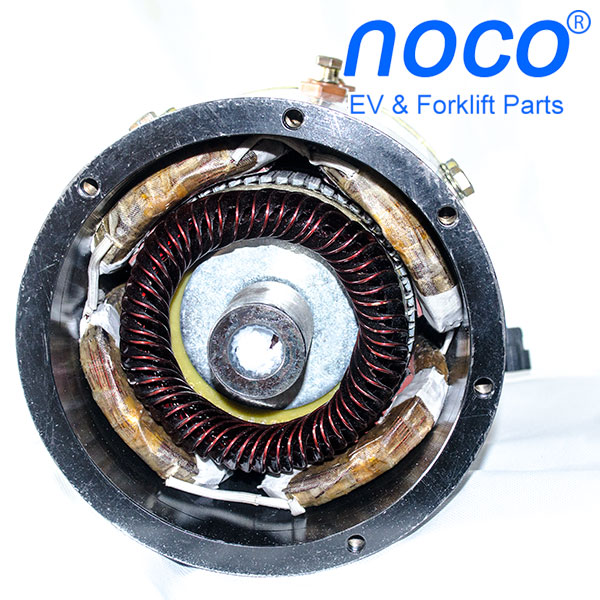

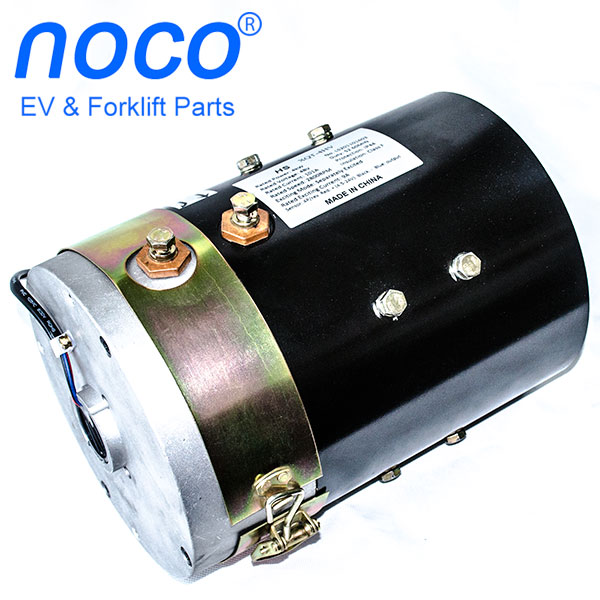

48V / 4kW DC SepEx Motor

Golf cart traction motor, with motor speed sensor (encoder)

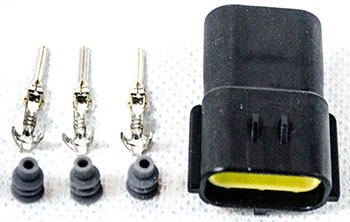

Speed Sensor Mating Connector

The 48V DC SepEx motor XQT-4HV is used in battery powered vehicles for traction purpose.

XQT-4HV can work with CURTIS 1268-5403 SepEx controller. We supply also the controller assemblage of 1268-5403.

We supply also the carbon brush set for XQT-4HV and speed sensor.

For more application details (spline, transmission, etc.), please contact us ...

Specifications:

• Model: XQT-4HV
• Motor type: separately excited DC motor
• Nominal power rate: 4.0 kW
• Operating voltage: 48V
• Rated current: 101 ampers
• Rated exciting current: 9 ampers
• Spline teeth options:
  • 19 teeth
  • 24 teeth (alternative model XQT-4CHUV)
• Duty: S2 60 minutes
• Rated speed: 2800 rpm
• speed sensor: 4-pulse per revolution; with 3-Pin connect:
  • Red wire: power supply positive (+, 4.5-24V)
  • Black wire: power supply negative (- / ground)
  • Blue wire: speed signal
  • Speed sensor mating connector is included
• Insulation: class F
• Weight: 30 kg
• Package environmental rating: IP44

Motor label:

Motor diagram:
