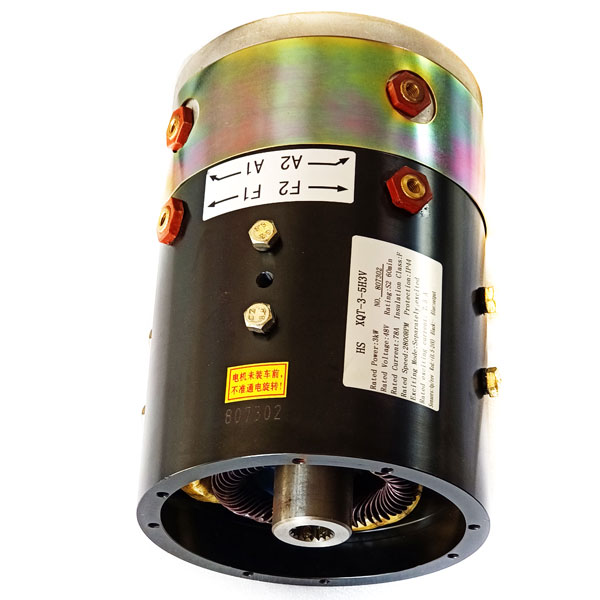

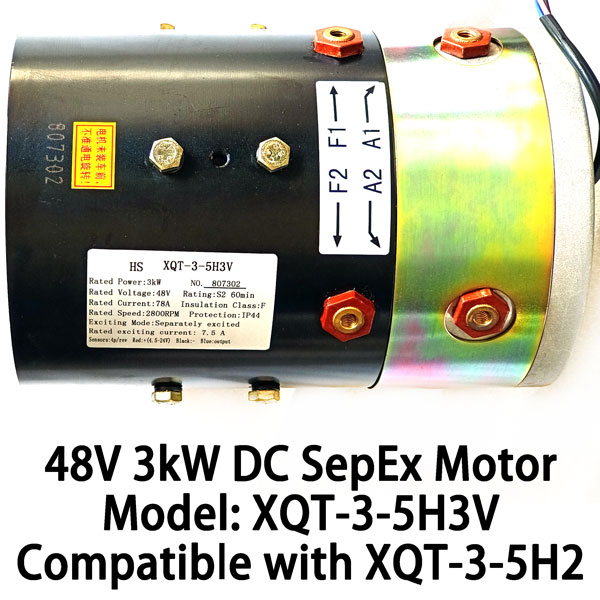

48V / 3.0 kW DC SepEx Motor

Model: XQT-3-5H3V, compatible with XQT-3-5H2, DONGFENG golf cart traction motor

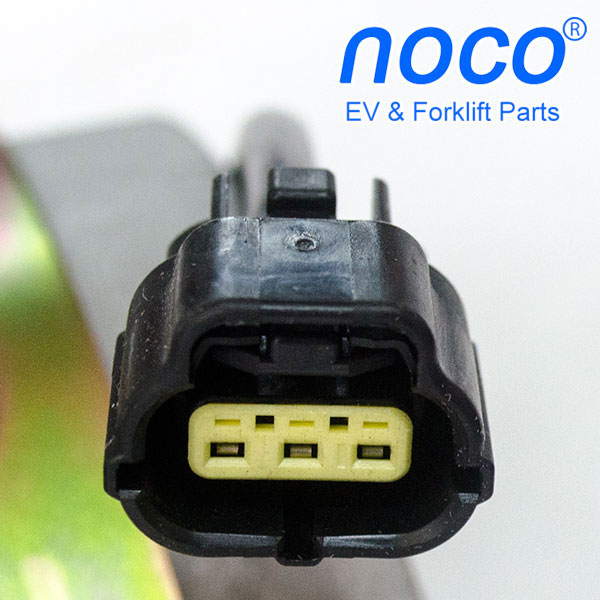

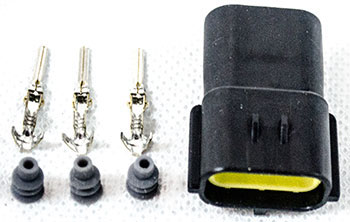

Speed Sensor Mating Connector

The 48V 3.0kW DC SepEx motors, model XQT-3-5H3V (compatible with XQT-3-5H2), serve as traction motors in battery-powered golf carts. These motors are adopted by Dongfeng – the electric vehicle division of Dongfeng Motor Group (a Fortune Global 500 company).

Other golf cart brands also use the XQT-3-5H3V as traction motors in their electric vehicles (with a different form of speed sensor connector).

We supply also the carbon brush set for XQT-3-5H3V and speed sensor.

Specifications:

• Model: XQT-3-5H3V (compatible with XQT-3-5H2)
• Motor type: separately excited DC motor
• Nominal power rate: 3.0 kW
• Operating voltage: 48V
• Rated current: 78 amperes
• Rated exciting current: 7.5 amperes (minimum 5 amperes)

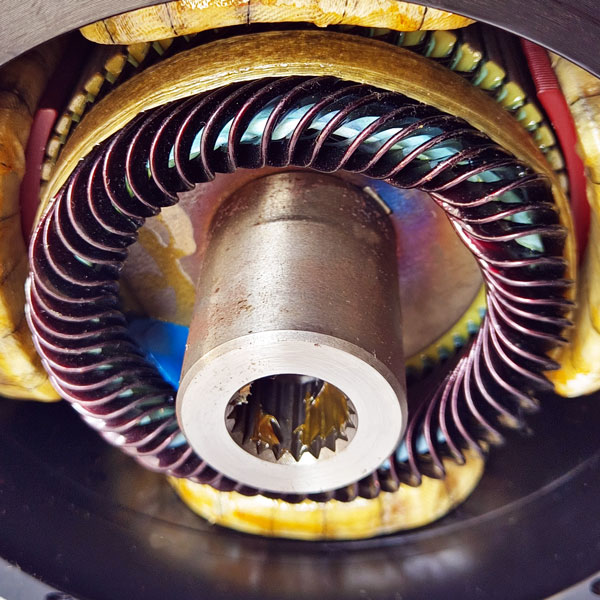

• Spline teeth options: 19 teeth
• Duty: S2 60 minutes
• Rated speed: 2800 rpm
• Maximum speed: 5600 rpm

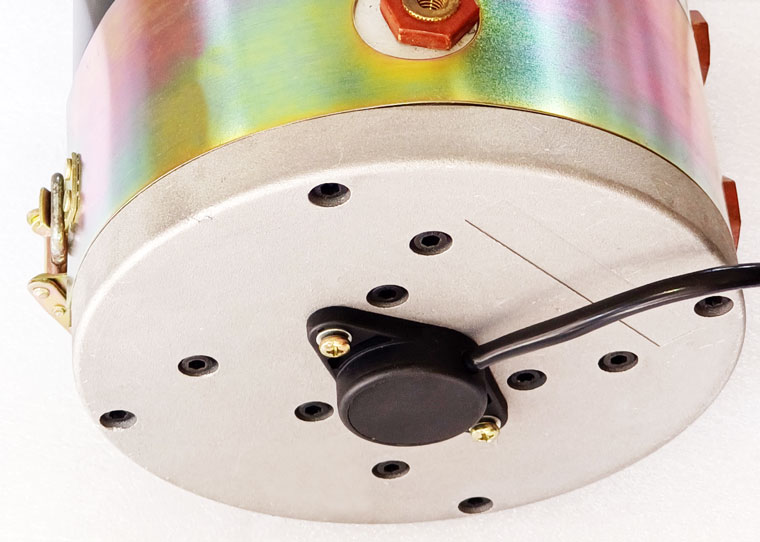

• speed sensor: 4-pulse per revolution; with 3-Pin connect:
  • Red wire: power supply positive (+, 4.5-24V)
  • Black wire: power supply negative (- / ground)
  • Blue wire: speed signal
  • Speed sensor mating connector is included
• Speed sensor connector: by default the motor comes with connector for DONGFENG golf cart, a mating connector will be provided
• Insulation: class F
• Package weight: 27 kg
• Ingress protection: IP44

Connector options (G: Green; B: Black; R: Red):

DONG FENG	Other Brands

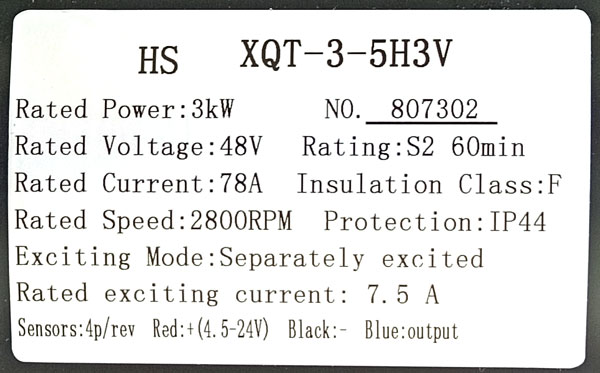

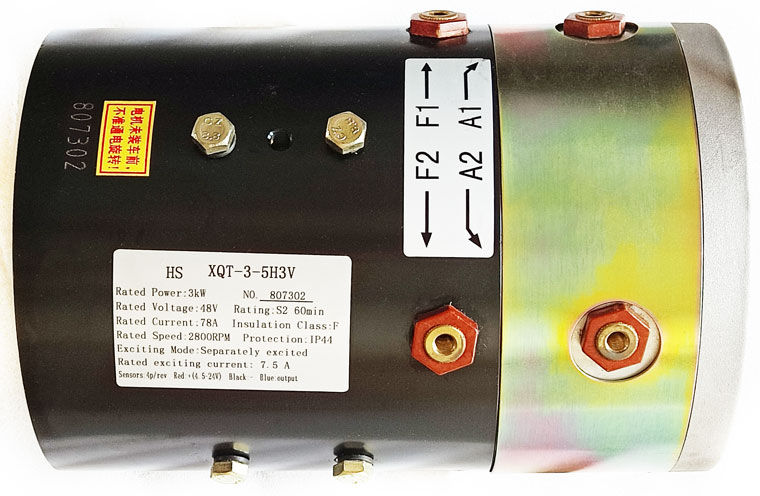

Motor label:

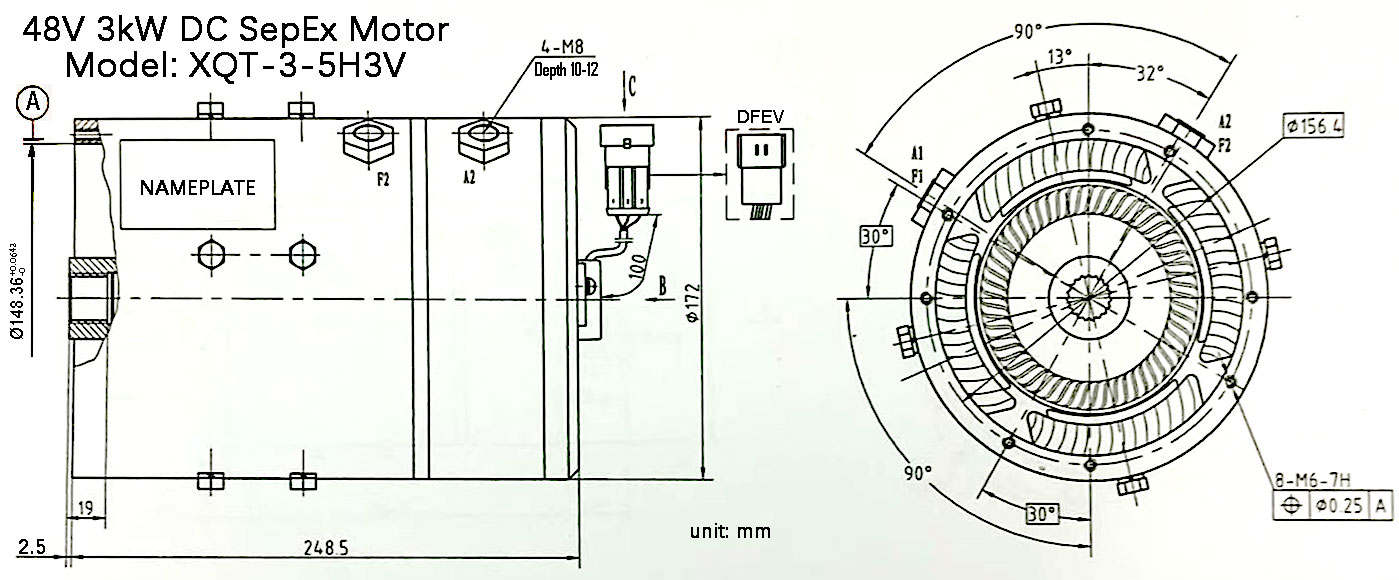

Motor diagram:
