This item is a full carbon brush set for 48V / 5.3 kW DC SepEx motor XQ-5.3, with shell (motor rear cover).

An assemblage is composed by 4 carbon brushes, 4 springs, 1 holder (frame), one bearing, 2 bolt-fix studs and 1 cover.

Specifications:

• Motor model: XQ-5.3
• Full set of brushes, springs, Holder (frame)
• Could be supplied separately or in assemblage form
• Electric vehicle part for Eagle, Star, Zone, Evergreen, Cruise, etc.

Caution: the motor speed sensor is not included in the carbon brush assemblage. You may use the old speed sensor of your motor with the new carbon brush assemblage. For buying a new speed sensor, please click here.

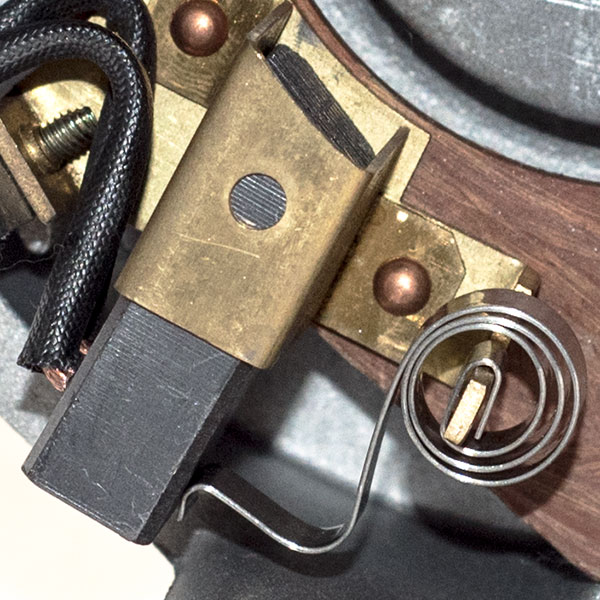

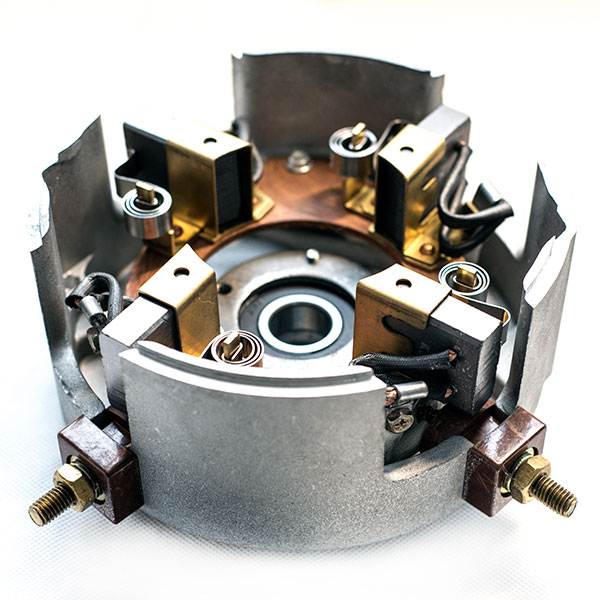

Installation: you my push out a little bit the carbon brush and clamp the carbon brush with the spring, as shown in the following photos.

DC SepEx motor XQ-5.3 uses actually the same carbon brush and spring of DC SepEx motor XQ-3.8. The compatible carbon brush models include H100, MD288 and JK260. Currently, JK260 is the carbon brush model used by motor manufacturer.

If you need the carbon brush asssemblage without the motor rear cover, please click here ...

We can supply the carbon brush assemblage of full XQ motor series, for more carbon brush set information of other motor models, please contact us ...

This item is a full carbon brush set for 48V / 5.3 kW DC SepEx motor XQ-5.3.

An assemblage is composed by 4 carbon brushes, 4 springs, 1 holder (frame), one bearing, 2 bolt-fix studs and 1 cover.

Specifications:

• Motor model: XQ-5.3
• Full set of brushes, springs, Holder (frame)
• Could be supplied separately or in assemblage form
• Electric vehicle part for Eagle, Star, Zone, Evergreen, Cruise, etc.

Caution: the motor speed sensor is not included in the carbon brush assemblage. You may use the old speed sensor of your motor with the new carbon brush assemblage. For buying a new speed sensor, please click here.

Installation: you my push out a little bit the carbon brush and clamp the carbon brush with the spring, as shown in the following photos.

DC SepEx motor XQ-5.3 uses actually the same carbon brush and spring of DC SepEx motor XQ-3.8. The compatible carbon brush models include H100, MD288 and JK260. Currently, JK260 is the carbon brush model used by motor manufacturer.

If you need the carbon brush asssemblage without the motor rear cover, please click here ...

We can supply the carbon brush assemblage of full XQ motor series, for more carbon brush set information of other motor models, please contact us ...
