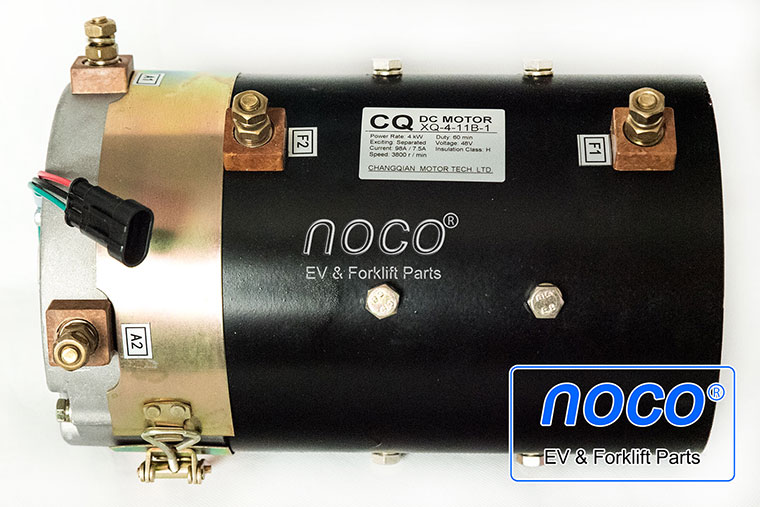

48V / 4kW DC SepEx Motor

Model: XQ-4-11B-1, with speed sensor

Nameplate of An Old Motor

The DC SepEx motors XQ-4-11B-1 are widely used in electric vehicles as the traction motor. Typical application: Marshell golf cart, LVTONG golf cart, etc.

XQ-4-11B-1 can work with CURTIS 1268-5403 SepEx controller. We can also provide the controller assemblage of 1268-5403.

XQ-4-11B-1 uses the same carbon brush set for XQ-3.8 and XQ-5.3.

Specifications:

• Model: XQ-4-11B-1
• Nominal power rate: 4.0 kW
• Operating voltage: 48V
• Spline: 19 teeth
• Speed: 3800 rpm
• Speed sensor mating connector is included (different connector types are available. By default, an AMP waterproof 3-Pin connector is coming with the motor)
• Insulation: class H
• Weight: 26.5 kg
• Package weight: 29.5 kg

Outline diagram (unit: mm):
