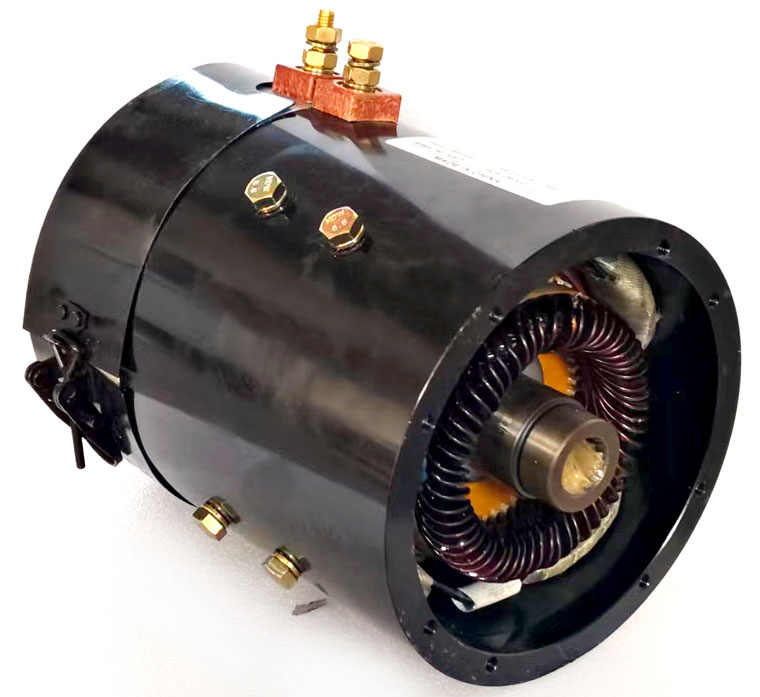

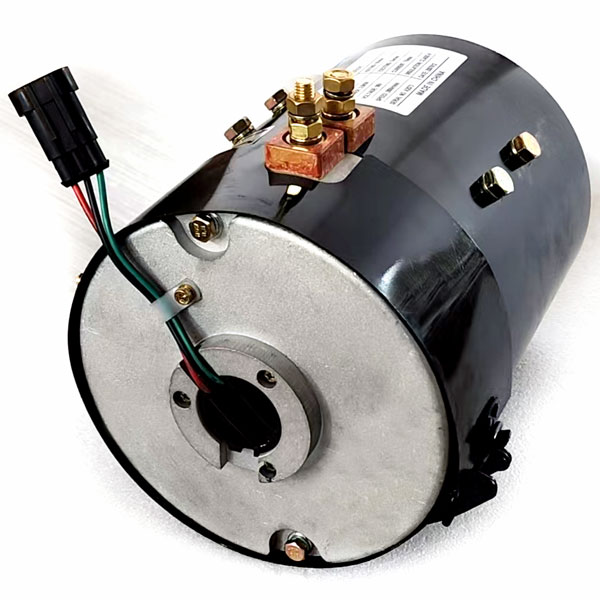

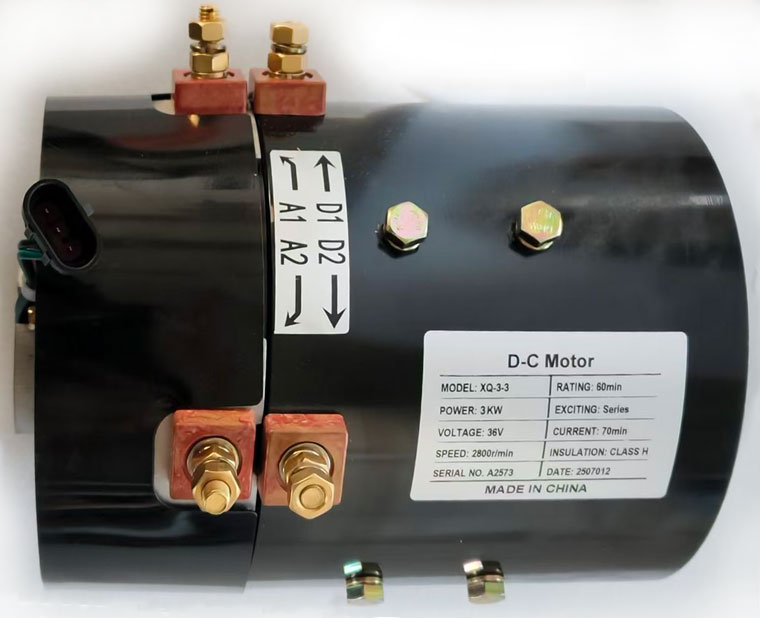

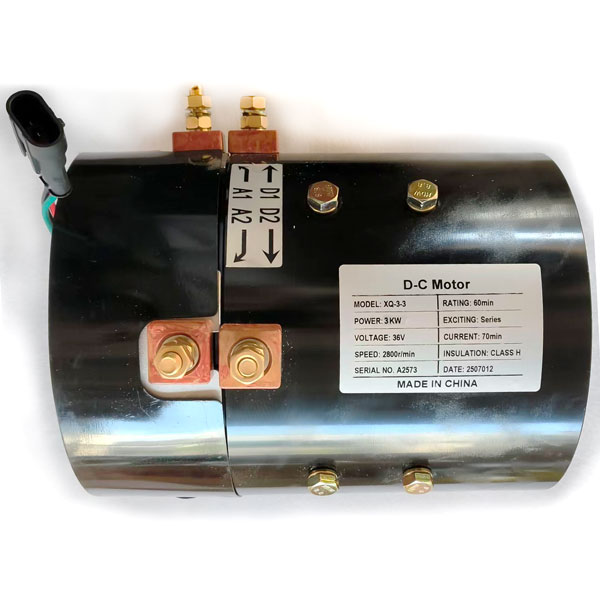

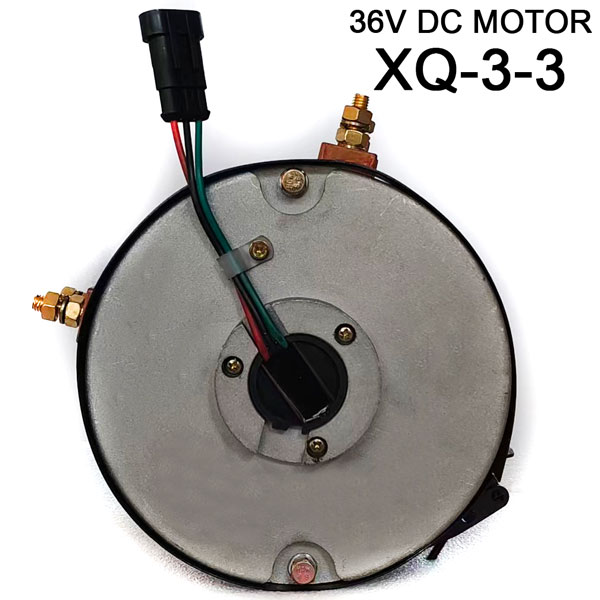

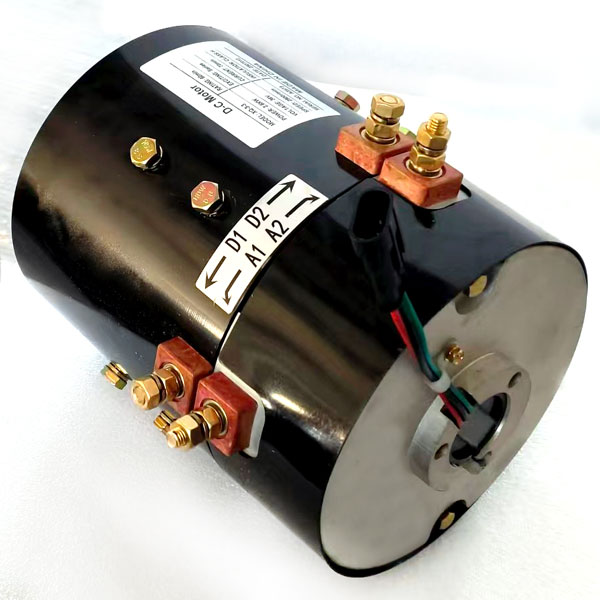

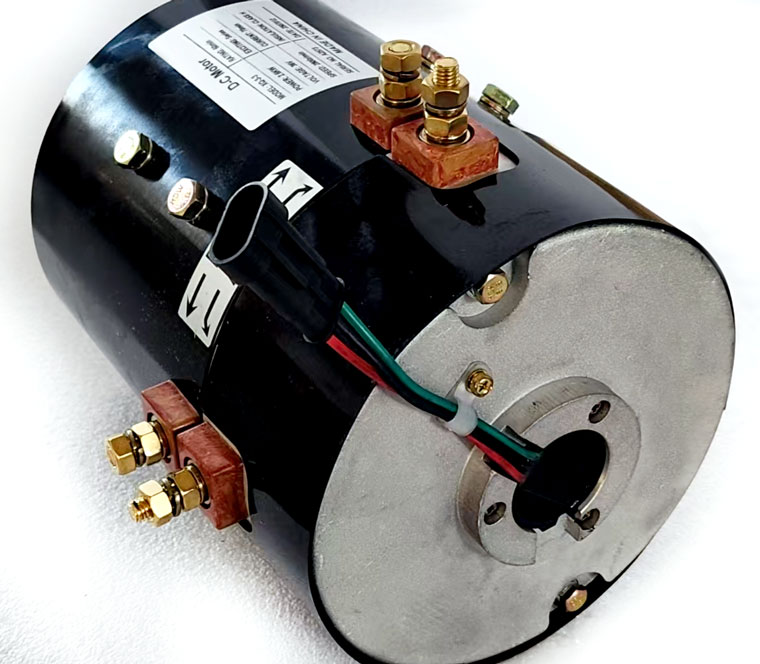

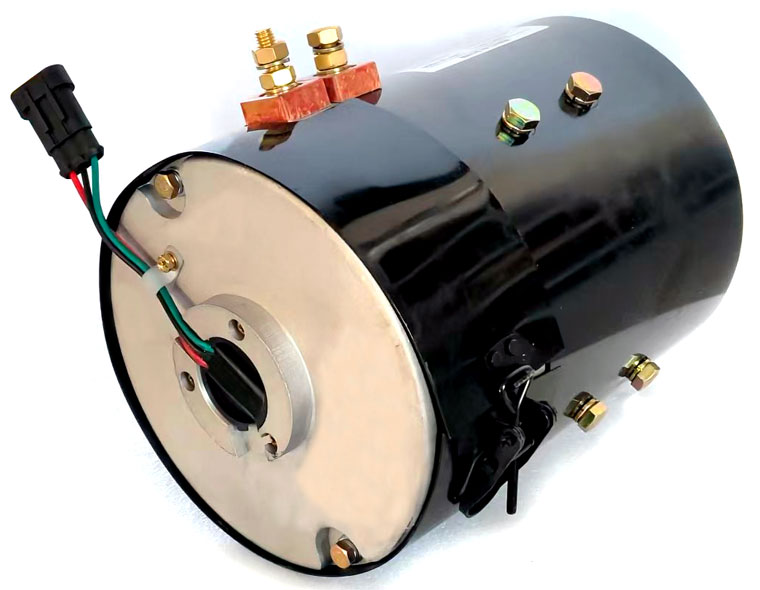

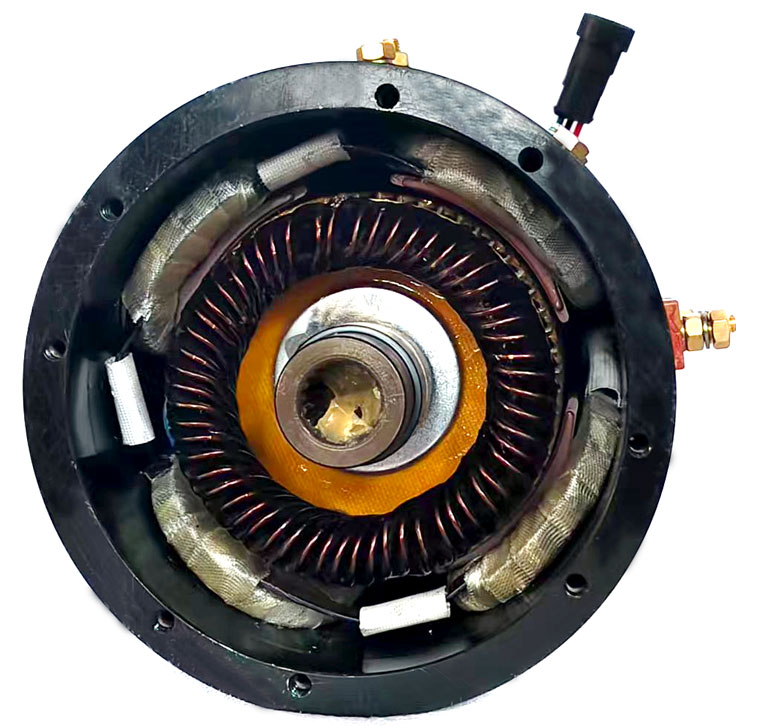

36V / 3kW DC Series Winding Motor

Model: XQ-3-3, compatible with XQ-3-5C / XQ-3-36C, compatible with AMD A02-4012

The 36V DC Series winding motor XQ-3-3 is traction motor for electric golf cart and mobility vehicle.

Specifications:

• Model: XQ-3-3, alternative of:
  • E-Z-GO 22858G1
  • E-Z-GO 27045G01
  • E-Z-GO 73124G02
  • E-Z-GO 73124G04
  • E-Z-GO 73232G01
  • E-Z-GO 73445G01
  • AMD A02-4012
  • XQ-3-5C / XQ-3-36C
  • 36V traction motor of Yamaha G9 (1992-95), G14, G16 golf cart
• Nominal power rate: 3.0 kW
• Operating voltage: 36V
• Spline: 19 teeth
• Speed sensor mating connector is included (different connector types are available. By default, an AMP waterproof 3-Pin connector is coming with the motor)
• Insulation: class H
• Net weight: 21.4 kg
• Package environmental rating: IP20

The motor XQ-3-3 can be a replacement of 36V E-Z-GO electric golf cart and tool vehicle traction motor of multiple golf cart models as listed below:

• Industrial 640: 1991-2009
• Minute Miser 835: 1991-2008
• Clays Car: 2004-2007
• Marathon: 1989-1992
• Medalist: 1997-1999
• PCX / PC4X / XI-875P: 1989-1994
• Shuttle 4/6/ST Express: 1996-2004
• ST Sport 2+2: 2004-2007
• TXT: 1997-2011
• Workhorse 800 / Workhorse 1000: 1998-2003
• XI-300 / XT-500 / XI-500 / GXT-804 / GXI-804 / GXT-804 TUFF1 / GXI-804 TUFF1: 1991-1992
• XI-775 / XI-875 / XI-881: 1991-1993
• XI-875 / XI-881: 2003-2004
