AMD DC SepEx Motor
Model: XP-2067-S
Club Car Part Number: 102775101

759.00 USD

1 / 4

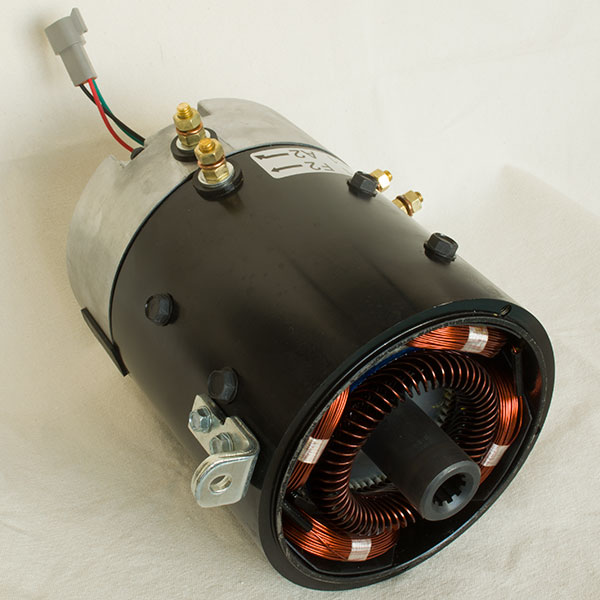

XP-2067-S, 48V 3.7kW DC SepEx motor, LVTONG golf cart traction motor

2 / 4

3 / 4

4 / 4

❮ ❯

Secured Payment of PayPal, VISA, MASTERCARD

Free Int'l Expedited Shipping

12-Month warranty

Outline Dimensions (PDF format)

XP-2067-S, 48V / 3.7kW DC SepEx Motor

LVTONG golf cart traction motor

Replacing Club Car 102775101

Club Car 102775101, DA5-4006, Golf Cart Traction Motor

Specifications:

Nominal power rate: 3.7 kW
Operating voltage: 48V
Rated speed: 2500 rpm
Field current: 10A
Armature current: 105A
Speed sensor mating connector is included (different type connector is possible, for example an AMP waterproof 3-Pin connector)
Insulation: class H
Dimensions (L×Ø): 231.60 × 154.99 mm
Package weight: 28.9 kg
Package environmental rating: IP20

Notice: this SepEx motor XP-2067-S is the product of AMD (made by Chinese manufacturer KDS), applied in multiple electric vehicle models of CLUB CAR (part number: 102775101, DA5-4006), and other electric cart makers.

Notice: XP-2067-S can work with CURTIS 1266A-5201 SepEx controller and CURTIS 1268-5403 SepEx controller. We can also provide the controller assemblage of 1268-5403.

For more application details (spline, transmission, etc.), please contact us ...
