Buy accessories (not sell as individual part, only available for shipping with your order of connectors):

SMH 50A electrical connector model SY50 are used to join power source (batteries) and device (electric motor, pump, etc.) for creating an electrical circuit, and serving as a permanent electrical joint.

Accessories available:

• Pull Handle

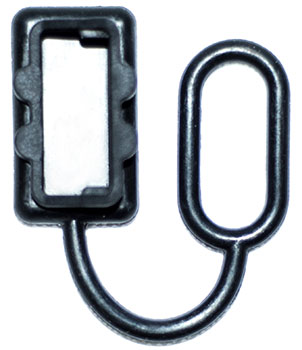

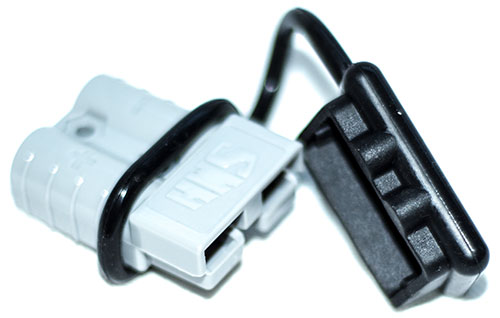

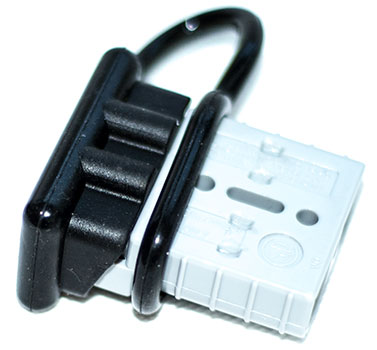

• Connector protection cover

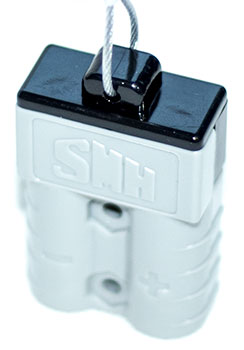

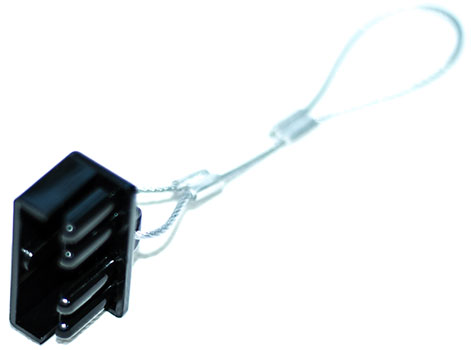

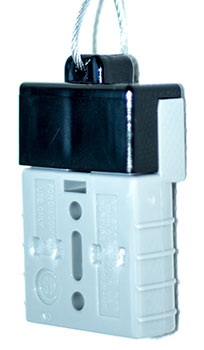

Hard Plastic Cover

Specifications:

• DC power connector rated for 50A / 600V
• Impact resistant polycarbonate housing offers high physical strength and superior dielectric properties
• Silver-plated solid copper contacts offer low resistance for superior conductivity
• Self cleaning contact design resists arcing by keeping conductive surfaces clean and free of corrosion
• Contacts have flared and heat treated barrels which readily accept fine stranded wire
• Integral stainless steel springs maintain constant pressure on the contact to insure a consistent, low-resistance connection

Contact wiring options:

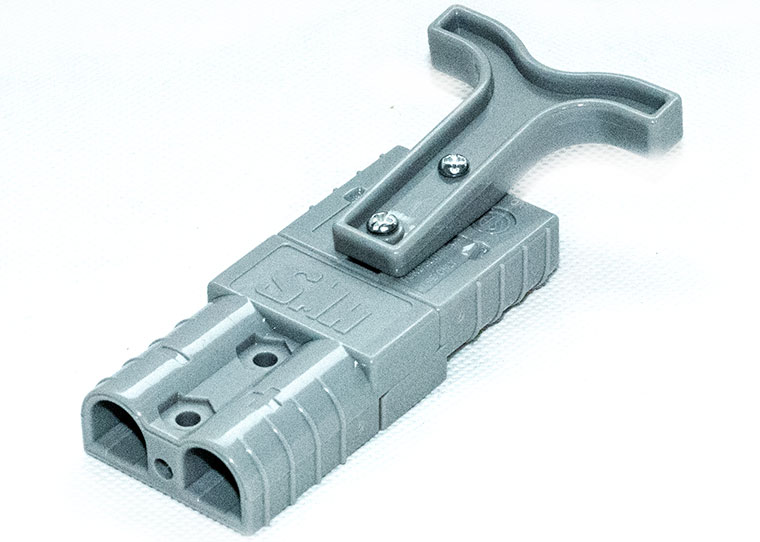

Pull Handle

Key features

• Brand: SMH

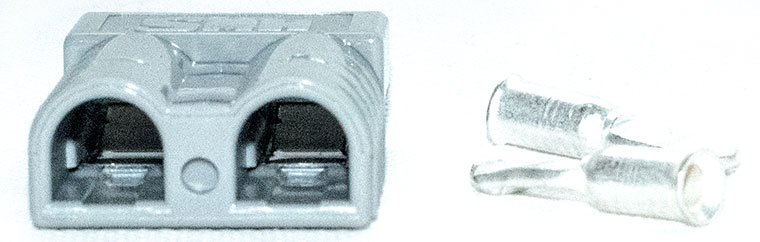

• Model: SY50 / SY6319G2, each connector assemblage includes one housing and two tips (contacts) (the pull handle and cover are not included in the connector assemblage, must be bought separately)
• Part number: 263-110
• UPC: 844632036736
• Housing Color: gray
• Net weight: 0.02 kg (0.044 lbs.)
• Current rating (ampers): 50A on 6 AWG wire produces 30°C rise
• Voltage limit (volts): 600
• Insulation with standing test voltage (volts): 2200V DC
• Operating temperature range: -20° to 105° C
• Maximum wire insulation diameter: 11 mm (0.44")
• Average contact retention force: approximately 50 lbs (22.7 kg)
• Average contact resistance: 200 µΩ with 1-1/4" (32 mm) of 6 AWG wire
• Vibration resistance: excellent
• Mating cycles: 10,000 times, for disconnect use only
• Environmental restrictions: protected - no hydrocarbon fluids
• Flammability rating: UL94 V-0
• Average mating and unmating force: 15 lbs (6.75 kg)
• Recognized under the component program of Underwriters Laboratories, Inc. File No. E81817
• Listed by Canadian Standards Association for use with certified equipment. File No. LR82704
