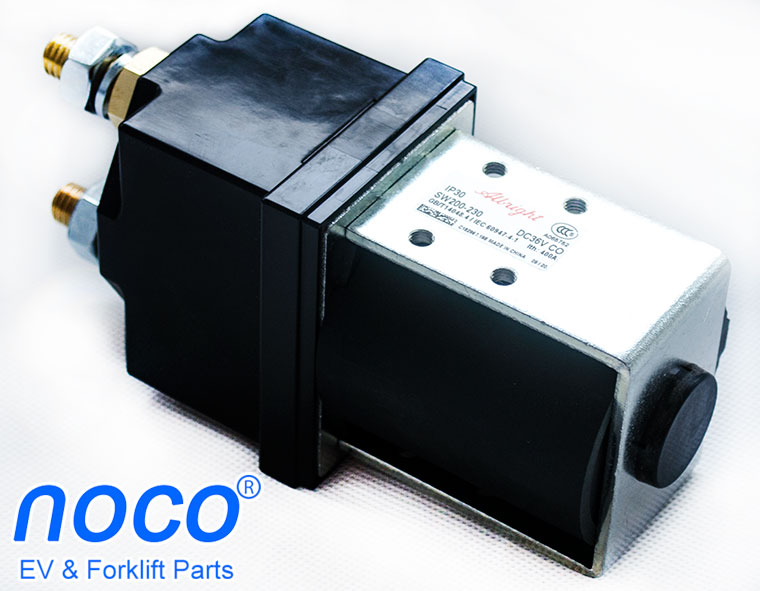

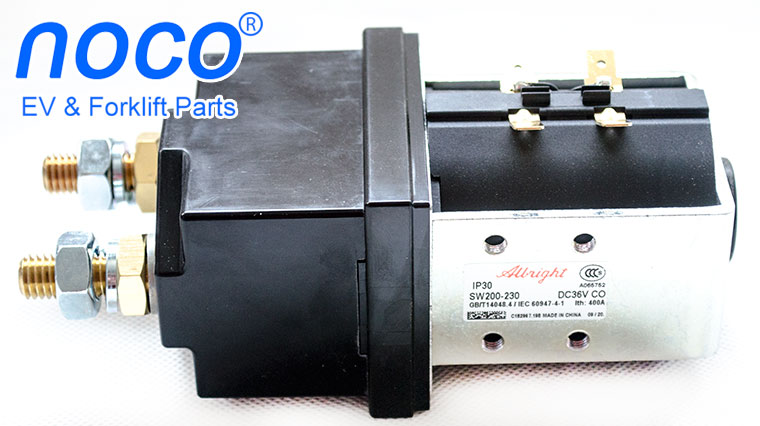

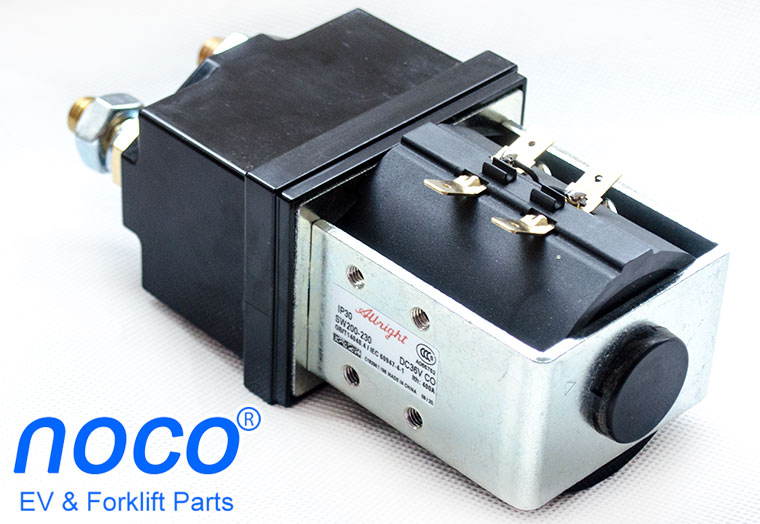

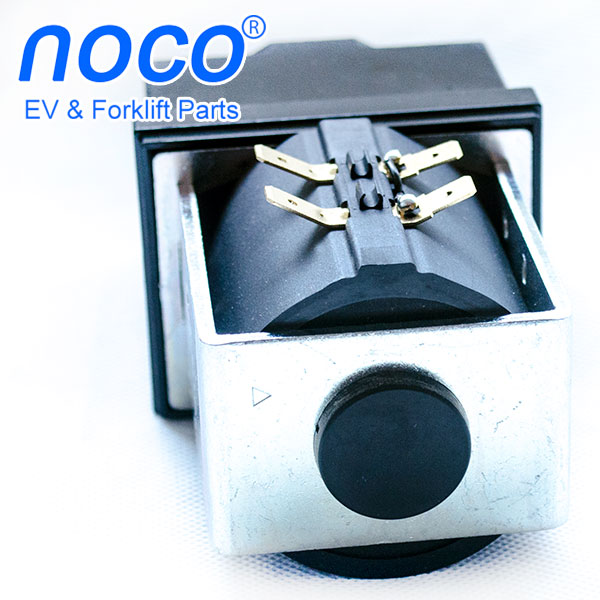

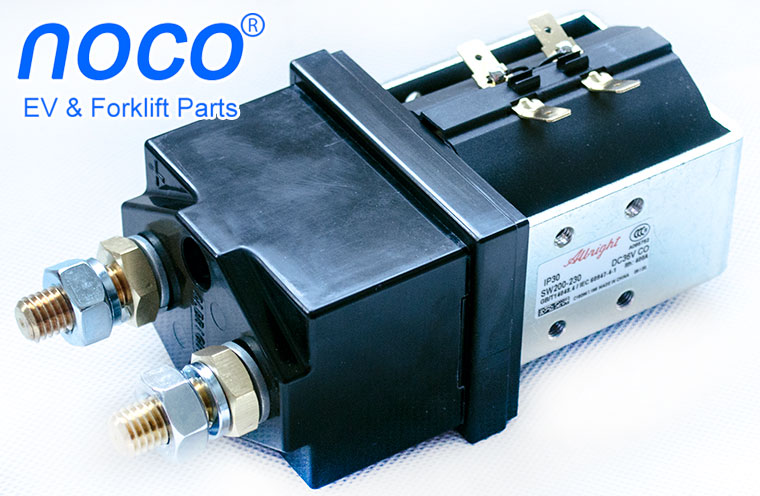

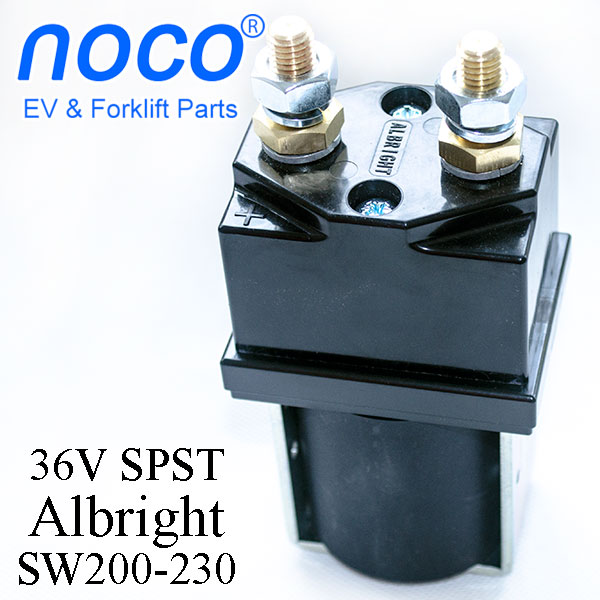

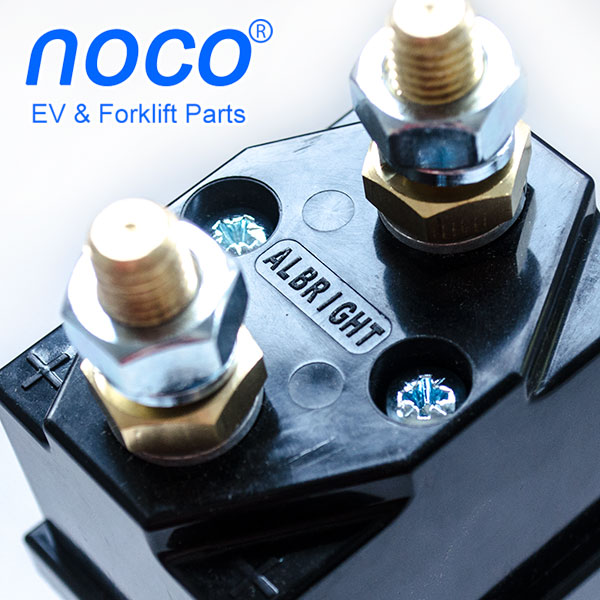

Albright DC Contactor SW200-230

36V 400A SPST NO (Single Pole Single Throw, Normal Open) DC Contactor

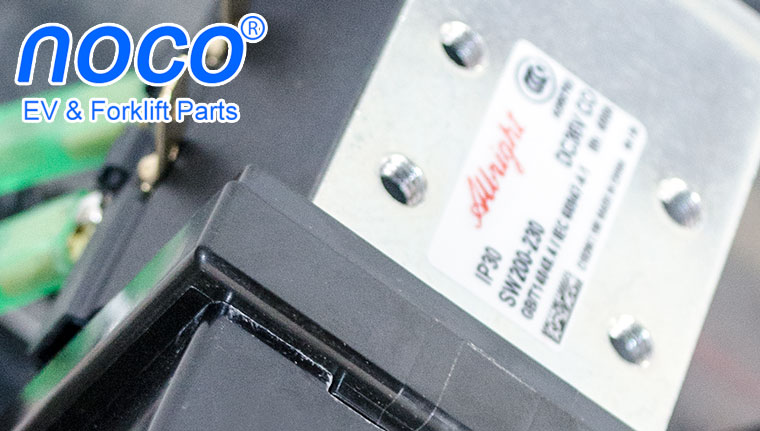

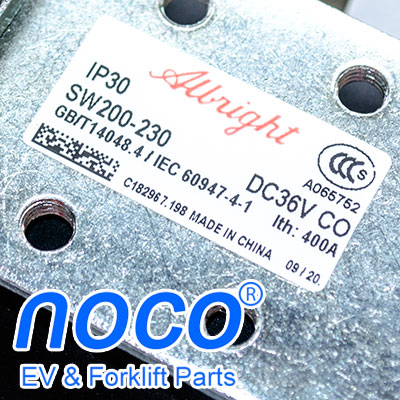

Product Label

Overview

The SW200 series contactors have been designed for direct current loads, particularly for motors used on electric vehicles such as industrial trucks, airport tractors, and electric forklift, etc.

They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

Click to download the Albright DC Contactor Model List (PDF format).

Specifications:

• Manufacturer: ALBRIGHT
• Model: SW200-230
• Contactor Type: Single Pole Single Throw, On/Off Type
• Rated coil working voltage: 36V DC
• Main Circuit Current Rating: 400A
• Typical fault current which can be ruptured: 1,500 Amperes at 96V DC
• Mechanical life: > 5,000,000 times
• Weight: about 1.35kg

The SW200-230 contactors are wildly applied in 36V DC power systems. The maximum recommended contact voltage for SW200 is 96VDC. For more details of voltage options, please read carefully the Albright SW200 Contactor Datasheet before making the purchase.

We supply also the mounting bracket for SW200 contactors (need to buy separately):

• Top hat shape
• L shape

Typical application of SW200-230: electric forklift 36V traction (driving) motor and lifting pump DC power switching ON / OFF. Both models are often used by forklift manufacturers HANGCHA, HELI, TCM, Tailift, Hyster, STILL, etc.

Features include:

• The contactors are compact in size.
• Fully serviceable, with a full range of spare parts available.
• Easy installation, the contactors SW200-230 and SW200-230 can be mounted horizontally or vertically. If mounted vertically, the main terminals should point upwards.
• Proved quality by different application, forklift, electric vehcile, industrial equipments, etc.
