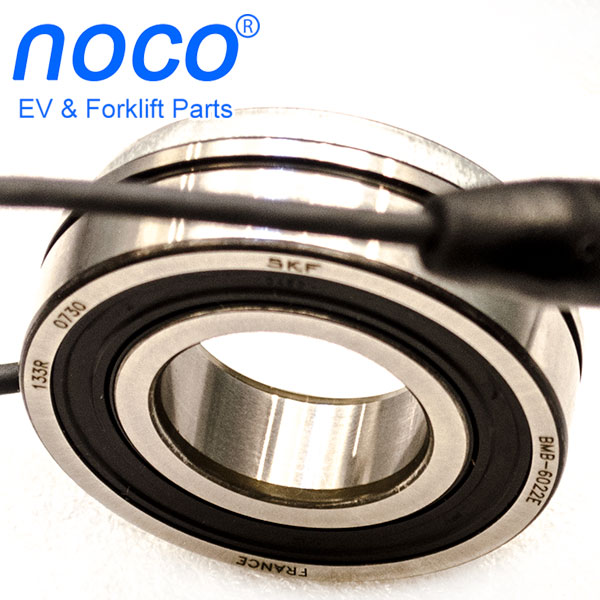

| SKF Motor Encoder Unit Model: BMB-6022E With 4-Pin Connector |
||||||
Lowest Unit Price 97.89 USD
|
||||||
SKF Encoder, Compatible With TOYOTA 7FB Forklift Sensor BearingModel: BMB-6022E (TOYOTA forklift part number 14194-10922-71 / 14194-10923-71)SKF motor encoder model BMB-6022E is compatible with TOYOTA 7FB forklift motor speed sensor bearing (part number 14194-10922-71 or 141941092271, 14194-10923-71 or 141941092371). It uses a compact and robust sensor that produces an incremental encoder signal. The sensor is accurate down to zero r/min. An integrated active circuit (requiring an external voltage supply) in the sensor body contains two Hall effect cells that produce an output signal consisting of two square waves. SKF encoders BMB-6022E are used by many forklift brands as the AC induction motor speed sensor. Typical applications include: Nichiyu, Toyota, E-P, EP-ZL, Liftstar, Noblelift, HELI and MIMA forklifts. The signals can be interpreted by motor controllers in different ways:
The two square waves are 90° out of phase with each other. This phase shift changes sign with the direction of rotation. The presence of two signals in quadrature enables a processing unit to multiply the number of angular position increments per revolution. For example, using a standard SKF sensor bearing with 64 pulses per revolution and a standard electronic interface that can detect the rising (Low/High) and falling (High/Low) times of each of the two signals, it is possible to obtain 256 electrical events per revolution, which translates to an angular resolution of 1,4°. SKF motor encoder units provide accurate and reliable signals for effective motor control and are 100% tested for period accuracy, duty cycle and phase shift during manufacture. The SKF Motor Encoder Unit is a compact, integrated unit consisting of:
For more details , please see the product datasheet of SKF motor encoder unit (PDF format). Cable connection: SKF BMB-6022E motor encoder units are available as standard with a 4-Pin Connector. Applied as the direct replacement of TOYOTA 7FB forklift motor speed sensor bearing (part number 14194-10922-71 or 141941092271, 14194-10923-71 or 141941092371), BMB-6022E can be used as the replacement of its equivalent part or ancient 6206 encoders:
For more information about the alternative model of SKF encoders, please contact us. |
||||||
|
||||||
