SAYOO Foot Pedal Throttle

JKH series voltage throttle & JKD series potentiometer throttle

Overview:

SAYOO foot pedal throttles offer a full range of acceleratiion / deceleration signals for variable motor speed controllers.

Specifications:

• Product Name: electric vehicle accelerator assembly
• Models:
  • JKH-003-A-65
  • JKH-005-A-65
  • JKH-005-A-100
  • JKH-013-A-100
  • JKH-013-A-140
  • JKH-114-A-65
  • JKH-404-A-65
  • JKD-003-A-65
  • JKD-005-A-65
  • Etc.
• Could be installed at both ends of throttle rotation shaft
• Double-return-spring design, assuring the initial neutral output (0Ω)
• Solid metal case, ingress protection: IP65
• Mechnical lifespan: 1,000,000 times
• Installation kit is included: bolts, nuts and washes
• Operation temperature range: -20°C ~ 50°C
• Storage temperature range: -40°C ~ 80°C
• Net weight: 1.05 kg (with installation kit and mating connector)

Wiring:

Codifications:

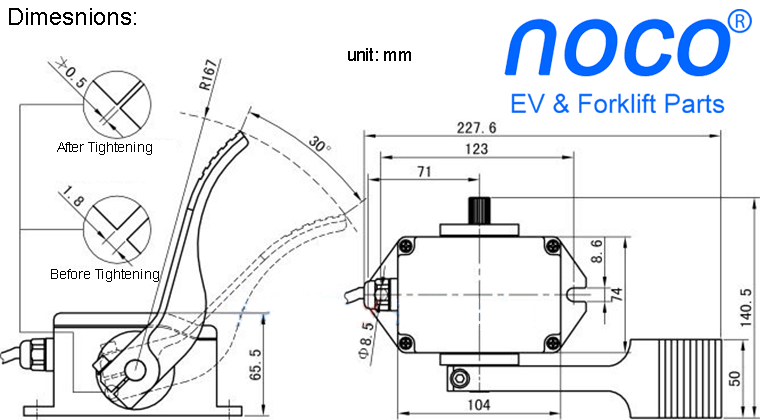

Dimensions:

About the throttle switch:

Most electric vehicle throttles have a throttle switch. Depending on the application requirement, the throttle switch can be used for different purposes:

• Main contactor control: feeding power to main contactor's control coil.
• Forward / Reverse DC contactor interlock: feeding power to F / R switch through the throttle switch. The F / R contactor will only be activated when the throttle switch is "ON" (for avoiding accidental vehicle movement in case that the F / R switch is not at neutral position when key switch is turned on).
• Lifting / Lowering interlock: when forklift is in accelerating mode, the lifting or lowering function will be inhibited, for avoiding unsafe operation.
• Accelating alarm: sending signal to a display device (for example a lamp) for showing the accelerating status of vehicle.
• Etc.

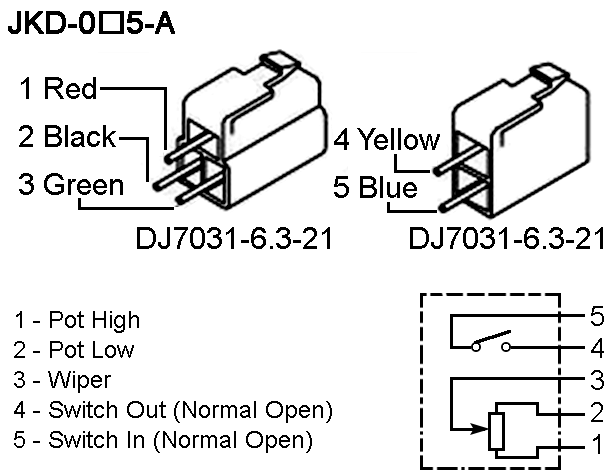

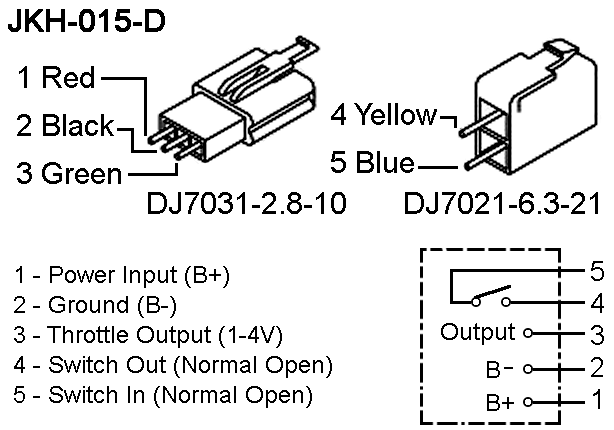

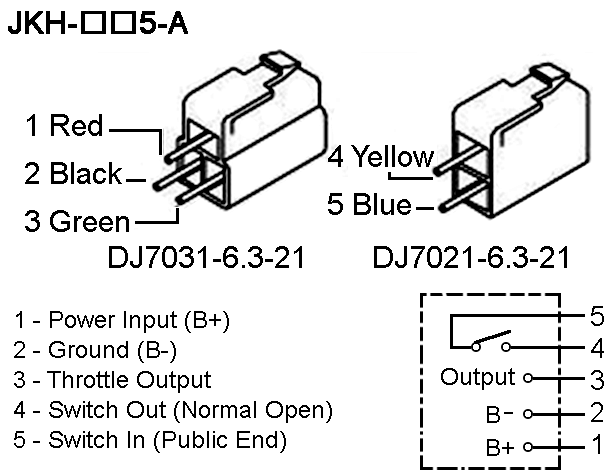

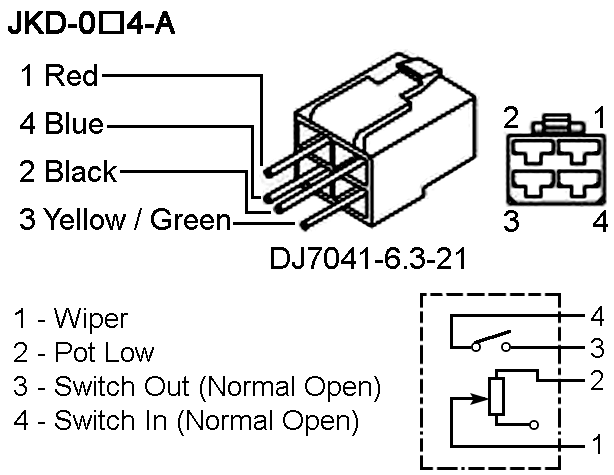

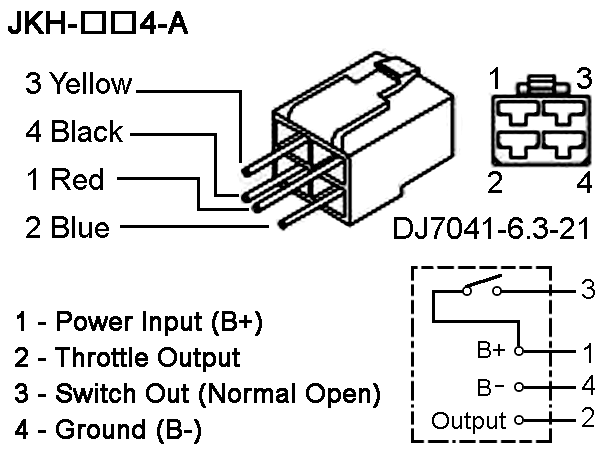

Wiring diagrams of different models:

Caution: we don't recommend to apply a voltage which is higher than the voltage rate of main power source (vehicle battery) to the throttle switch.

Overview:

SAYOO foot pedal throttles offer a full range of acceleratiion / deceleration signals for variable motor speed controllers. Two series are available:

• JKH series: voltage throttles
• JKD series: potentiometer throttles

Specifications:

• Product Name: electric vehicle accelerator assembly
• Models:
  • JKH-003-A-65
  • JKH-005-A-65
  • JKH-005-A-100
  • JKH-013-A-100
  • JKH-013-A-140
  • JKH-114-A-65
  • JKH-404-A-65
  • JKD-003-A-65
  • JKD-005-A-65
  • Etc.
• Could be installed at both ends of throttle rotation shaft
• Double-return-spring design, assuring the initial neutral output (0Ω)
• Solid metal case, ingress protection: IP65
• Mechnical lifespan: 1,000,000 times
• Installation kit is included: bolts, nuts and washes
• Operation temperature range: -20°C ~ 50°C
• Storage temperature range: -40°C ~ 80°C
• Net weight: 1.05 kg (with installation kit and mating connector)

Wiring:

Codifications:

Dimensions:

About the throttle switch:

Most electric vehicle throttles have a throttle switch. Depending on the application requirement, the throttle switch can be used for different purposes:

• Main contactor control: feeding power to main contactor's control coil.
• Forward / Reverse DC contactor interlock: feeding power to F / R switch through the throttle switch. The F / R contactor will only be activated when the throttle switch is "ON" (for avoiding accidental vehicle movement in case that the F / R switch is not at neutral position when key switch is turned on).
• Lifting / Lowering interlock: when forklift is in accelerating mode, the lifting or lowering function will be inhibited, for avoiding unsafe operation.
• Accelating alarm: sending signal to a display device (for example a lamp) for showing the accelerating status of vehicle.
• Etc.

Wiring diagrams of different models:

Caution: we don't recommend to apply a voltage which is higher than the voltage rate of main power source (vehicle battery) to the throttle switch.
