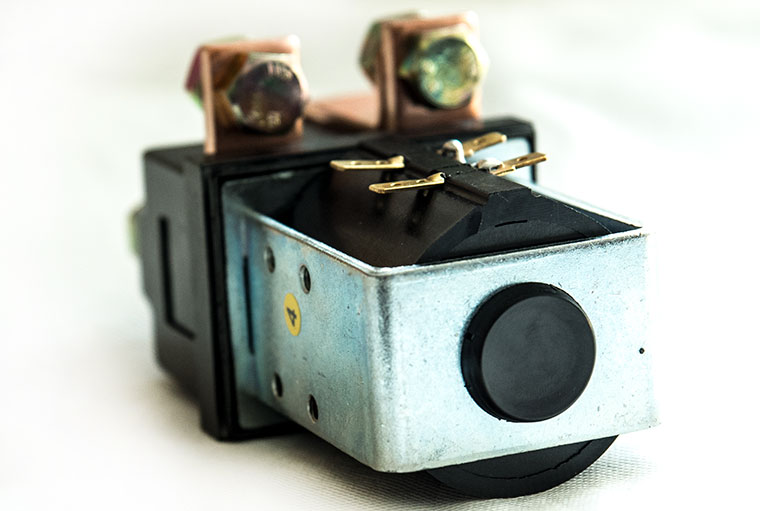

SPDT Heavy Duty DC Contactor

Model: QCC25C-400A/11L, rated for 400A

Alternative replacement for CURTIS SW215-16 (48V) & SW215-17 (80V)

We supply also the 400A SPDT DC Contactor QCC25C-400A/11 (without long contact).

Overview

The QCC25C-400A/11L DC contactors are SPDT (single pole single throw; one "normal open" and one "normal close") DC power changeover switch with long contact, designed for direct current loads, particularly for motors on electric vehicles, like electric forklift, electric pallet stacker, tow tractor, etc. QCC25C-400A/11L has main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

QCC25C-400A/11L DC contactors can also be used in different DC power systems:

• DC power supply changeover
• DC motor driver selection
• Telecommunication system DC power source backup
• DC battery charging selector
• Solar power system, photovoltaic (PV) power station

Specifications:

• Model: QCC25C-400A/11L (replacement of Albright SW201, with long contact plate)
• Contactor type: SPDT (single pole double throw; one normal open, one normal close)
• Voltage options (Volts): 12V, 24V, 36V, 48V or 72V (80V)
• Magnetic blowout:
  • 12V: no
  • 24V: no
  • 36V: no
  • 48V: yes (if don't want the blowout function, please contact us)
  • 72V (80V): yes (if don't want the blowout function, please contact us)
• Mounting bracket (need to buy separately):
  • Top hat shape
  • L shape
• 6.3 mm (0.25" or 1/4") spade terminals for coil connections
• Ambient temperature：-25~+40°C
• Max.relative humidity: 90% at 25°C
• Installation method：vertically or horizontally
• Voltage fluctuating：0.7~1.1Ue
• Net weight: 1.60 kg
• We supply also other SPDT contactors:
  • 100A: QCC25C-100A/11
  • 200A: QCC25C-200A/11
  • 200A (with long contact plate): QCC25C-200A/11L
  • 400A: QCC25C-400A/11L
