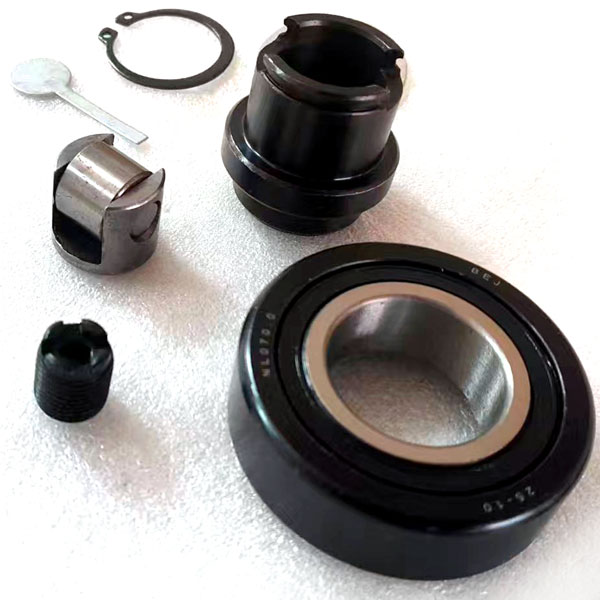

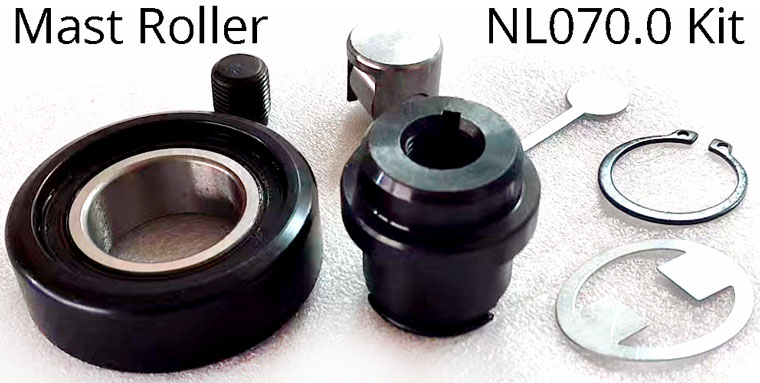

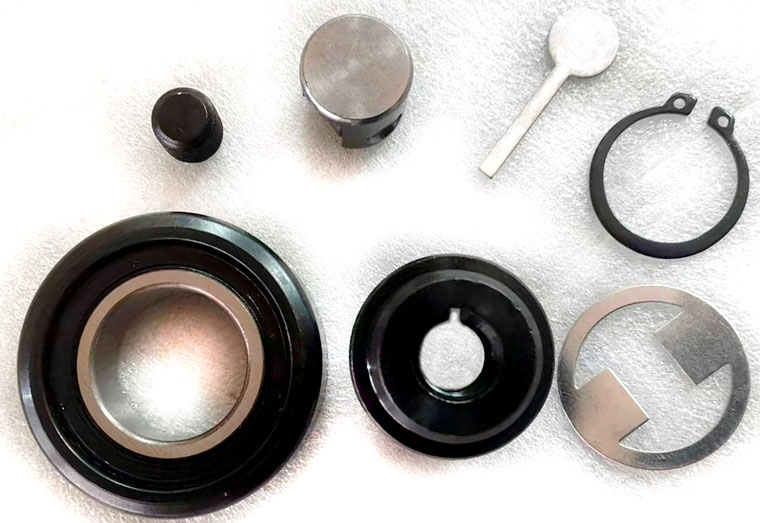

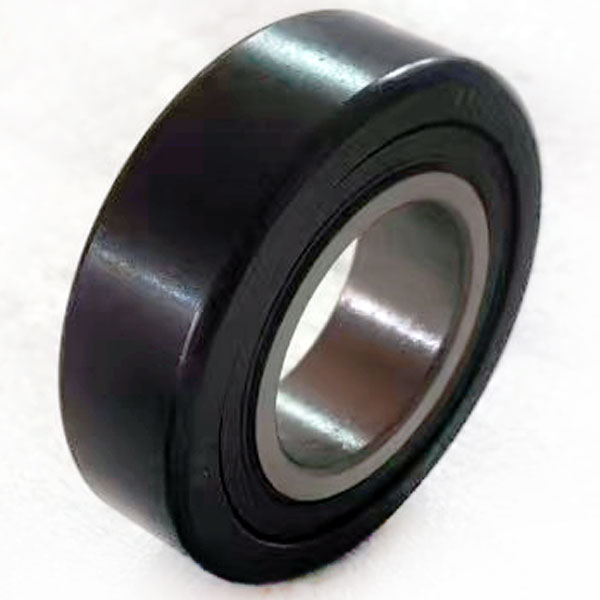

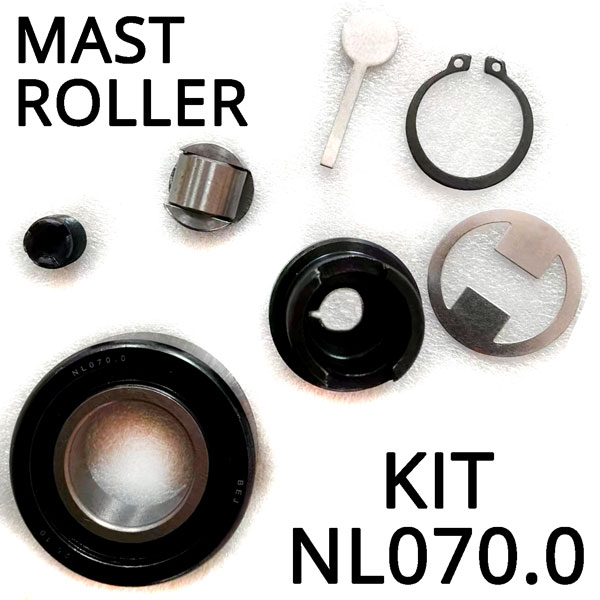

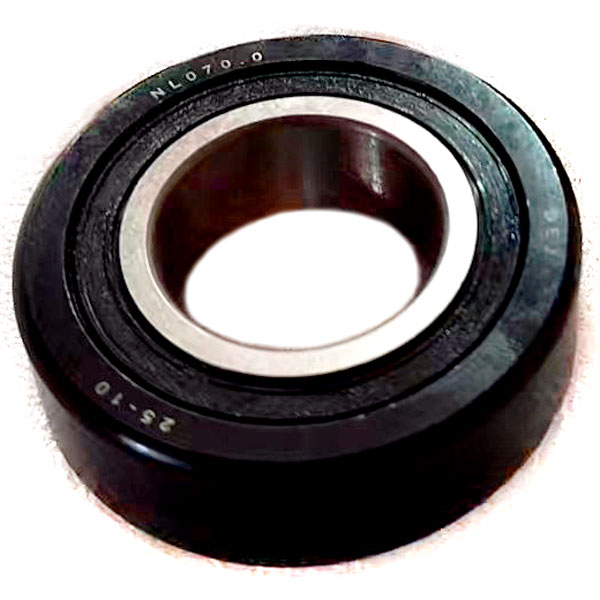

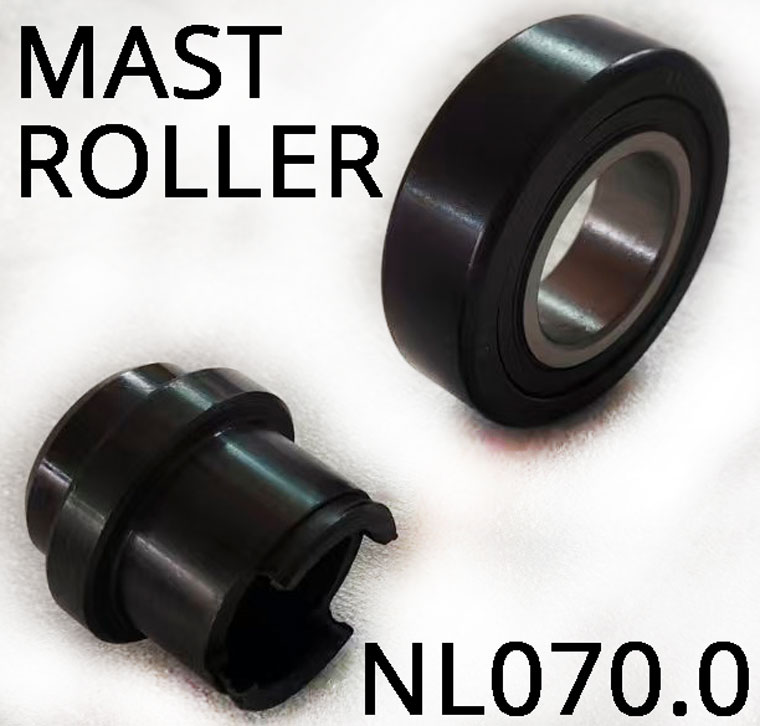

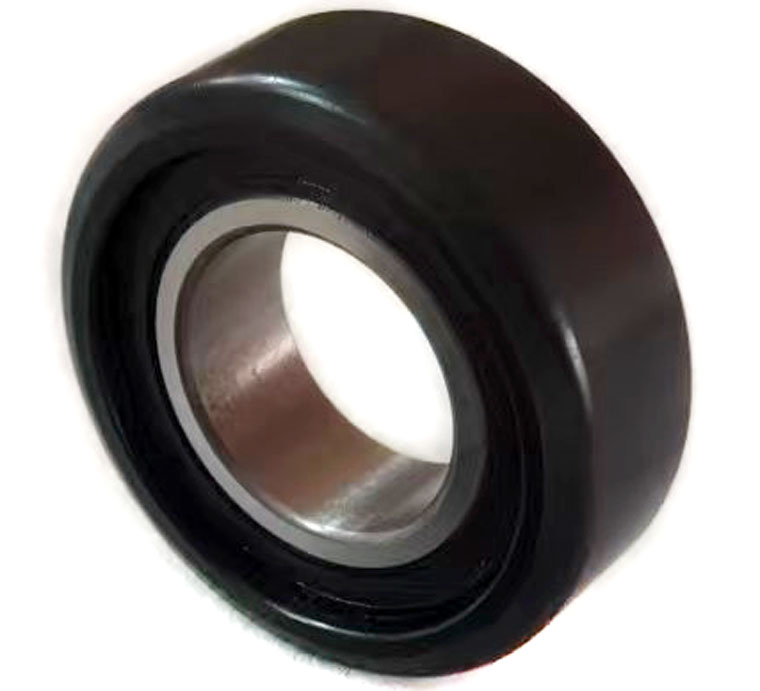

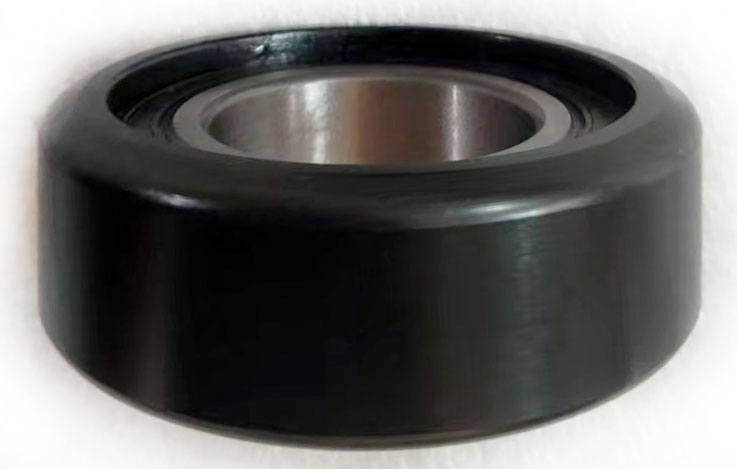

Forklift Mast Roller Bearing Kit

Part Number: NL070.0, roller sizes 35x70x22.5

We supply also:

• WANDA mast roller bearing, 30x78x28, WANDA part number 32901, TAILIFT part number 51507007
• WANDA mast roller bearing, 45x105.4x26, part number 3316-514000-00, part number QA20V500-102100-W00

Mast bearings are used on fork lift trucks. They carry the forks (carriage) up the mast and they also enable the various stages of the mast to extend.

The mast roller bearing kit NL070.0 is used by multiple forklift brands, Noblelift, HELI, HANGCHA, etc.

Specifications:

• Part name: mast roller bearing kit with side roller
• Part Number: NL070.0
• Dimensions:
  • Outer diameter: 70mm
  • Bearing bore diameter: 35mm
  • Thickness: 22.5mm
• Net weight: 0.70kg

Features:

• Thick Outer Ring: Mast bearings operate at relatively low speeds. They travel along the rail as a track bearing (like a wheel) and consequently experience high loads. The outer ring (steel tyre) of a mast bearing is much thicker than a standard bearing, to enable this load to be transmitted.
• Inseparable Design: The components of the bearings are held together to form an inseparable "wheel".
• Support Heavy Duty Operation: With a solid and compact design, mast bearings work with repeated tasks of lifting / lowering manoeuvering of weighted load.
• Seals: Sealed to prevent the grease from escaping and to keep debris out.

There are many different mast bearings. If you are looking for a specific model, please contact us...
