80A SPDT DC Relay
Model: JD2912, Large Contact
5-Pin, 1 NC + 1 NO
Lowest Unit Price 2.40 USD
1 / 4

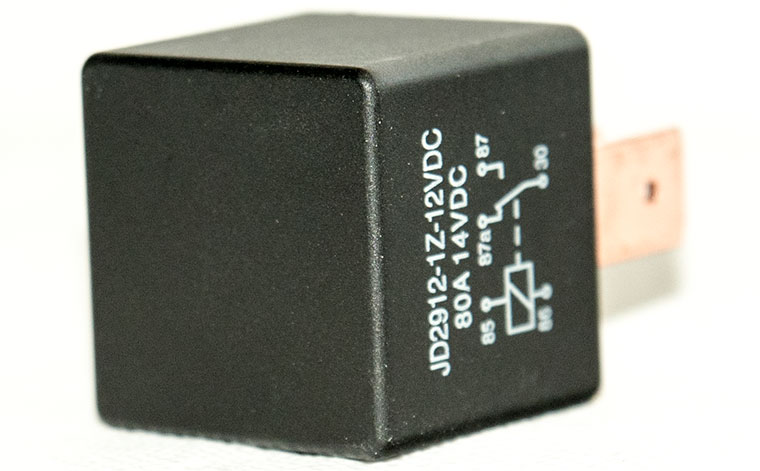

12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
2 / 4
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
3 / 4
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
4 / 4
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
Order Quantity
Voltage Option
Secured Payment of PayPal, VISA, MASTERCARD

JD2912-80A Automotive DC Relay

SPDT, 5-Pin, one normal open, one normal close

Specifications:

  • Model: JD2912-80A
  • Coil voltage:
    • 12V Relay:
      • close @ 8.0VDC Min.
      • release @ 3.6VDC Max.
      • max. working voltage: 15.6V
    • 24V:
      • close @ 16.0VDC Min.
      • release @ 7.2VDC Max.
      • max. working voltage: 31.2V
  • Switching voltage: 75VDC Max.
  • Current rating: 80A
  • Operating temperature: -30 ~ +80°C
  • Vibration resistance: 10 ~ 55 Hz, 1.5 mm
  • Shock resistance:
    • operation extreme: 10g
    • damage limit: 100g
  • Humidity: 40 ~ 85%
  • Insulation resistance: 100mΩ @ 500VDC
  • Dielectric
    • between open contacts: 500VAC
    • between contacts and coil: 750VAC
  • Operating time:
    • close: ≤ 7ms
    • release: ≤ 5ms
  • Life span:
    • Electrical: 100,000 times (@ frequency 30 operations / minute)
    • Mechanical: 1,000,000 times
  • Net weight: 35 grams

We provide also 40A / 60A DC relays JD2912.

We may also supply the 4-Pin type 80A Bosch type DC relay. Other voltage (36V or 48V) option is available. For more details, please contact us.

Overview

The 5-Pin Bosch style SPDT 12V / 24V automotive DC relay model JD2912 features a high switching current 80A.

  • Bosch style 5-Pin SPDT (single pole double throw, one normal open, one normal close) automotive DC relay
  • 80A switching capability
  • 5 terminals
  • High sensitive & stable electronic timing
  • Dimensions (LxWxH ): 28.5 x 28.5 x 30.8 mm
Wiring diagram:
Wiring Diagram, 12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
Dimensions (unit: mm):
dimension diagram, 12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
80A SPDT DC Relay
Model: JD2912
5-Pin, 1 NO + 1 NC
Lowest Unit Price 2.40 USD
Order Quantity
Voltage Option
Secured Payment of PayPal, VISA, MASTERCARD

Specifications:

  • Model: JD2912-80A
  • Coil voltage:
    • 12V Relay:
      • close @ 8.0VDC Min.
      • release @ 3.6VDC Max.
      • max. working voltage: 15.6V
    • 24V:
      • close @ 16.0VDC Min.
      • release @ 7.2VDC Max.
      • max. working voltage: 31.2V
  • Switching voltage: 75VDC Max.
  • Current rating: 80A
  • Operating temperature: -30 ~ +80°C
  • Vibration resistance: 10 ~ 55 Hz, 1.5 mm
  • Shock resistance:
    • operation extreme: 10g
    • damage limit: 100g
  • Humidity: 40 ~ 85%
  • Insulation resistance: 100mΩ @ 500VDC
  • Dielectric
    • between open contacts: 500VAC
    • between contacts and coil: 750VAC
  • Operating time:
    • close: ≤ 7ms
    • release: ≤ 5ms
  • Life span:
    • Electrical: 100,000 times (@ frequency 30 operations / minute)
    • Mechanical: 1,000,000 times
  • Net weight: 35 grams

We provide also 40A / 60A DC relays JD2912.

We may also supply the 4-Pin type 80A Bosch type DC relay. Other voltage (36V or 48V) option is available. For more details, please contact us.
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close 12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close 12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close

Overview

The 5-Pin Bosch style SPDT 12V / 24V automotive DC relay model JD2912 features a high switching current 80A.

  • Bosch style 5-Pin SPDT (single pole double throw, one normal open, one normal close) automotive DC relay
  • 80A switching capability
  • 5 terminals
  • High sensitive & stable electronic timing
  • Dimensions (LxWxH ): 28.5 x 28.5 x 30.8 mm
Wiring diagram:
Wiring Diagram, 12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
Dimensions (unit: mm):
dimension diagram, 12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
12V And 24V Automotive DC Relay, 80A SPDT 5-Pin DC Relay, One Normal Open and One Normal Close
