Isolated Type DC/DC Converter
Model: HXDC-4812/400
48V To 12V - 400W
Lowest Unit Price 83.95
1 / 4
HXDC4812, Isolated Type 48V To 12V DC-DC Converter, 12V DC Power Source
2 / 4
HXDC4812, Isolated Type 48V To 12V DC-DC Converter, 12V DC Power Source
3 / 4
HXDC4812, Isolated Type 48V To 12V DC-DC Converter, 12V DC Power Source
4 / 4
HXDC4812, Isolated Type 48V To 12V DC-DC Converter, 12V DC Power Source
Quantity Option
Secured Payment of PayPal, VISA, MASTERCARD

Isolated Type DC-DC Converter

Buck converter, 48V to 12V, DC source for electric vehicle & boat

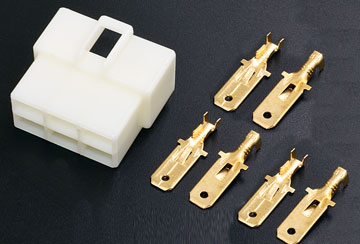

Mating Connector
Isolated DC-DC Converter HXDC-4812 Mating Connector

A DC-DC converter converts one DC voltage to another. A Buck Converter outputs a lower voltage than the original voltage. An isolated DC-DC converter will have a high frequency transformer providing a barrier, separating the input voltage and the output voltage. This barrier can withstand surging voltage from a few hundred volts to several thousand volts, is required bt many safety agency bodies and (or) customers.

Specifications:

  • Input voltage: 48V (48-60V) DC
  • Output voltage: 12V DC
  • Max output current: 34.5A
  • Electrical isolation to heatsink (min.): 500 VAC
  • Self-protections available:
    • DC power poles reverse connection protected
    • Over-current protection
    • Shortcut protection
    • Over-voltage & low-voltage protection
    • Overheat protection
  • Mating connector included
  • Operating ambient temperature range: -40°C to 50°C
  • Storage ambient temperature range: -40°C to 85°C
  • Product dimensions: 200mm x 139mm x 66mm

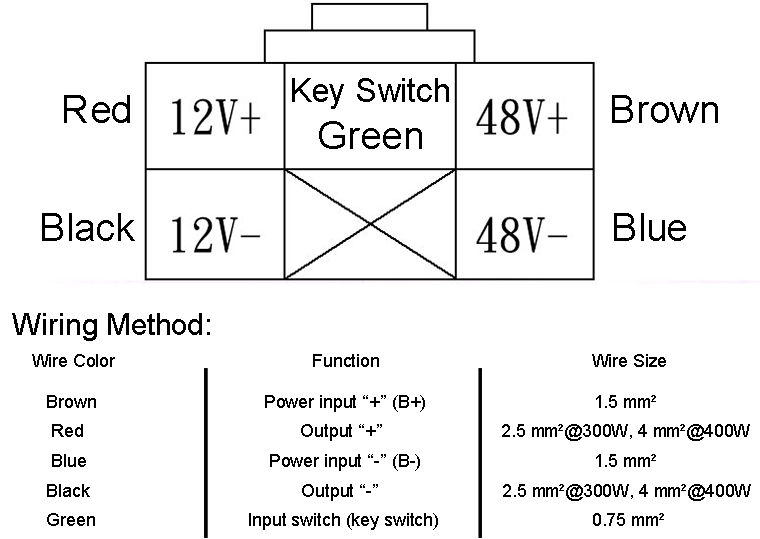

Wiring instruction:

Isolated Type DC-DC 48V to 12V Converter Wiring Instruction

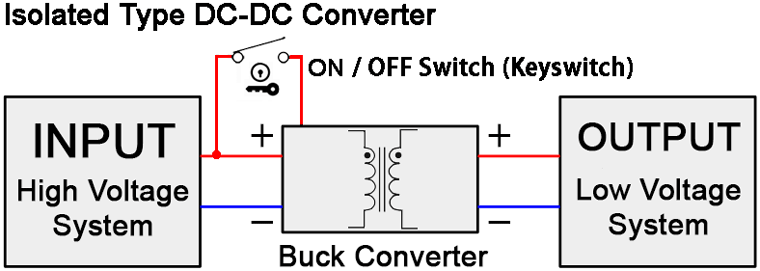

Wiring diagram:

Isolated Type DC-DC 48V to 12V Converter Wiring Diagram
HXDC4812, Isolated Type 48V To 12V DC-DC Converter, 12V DC Power Source
HXDC4812, Isolated Type 48V To 12V DC-DC Converter, 12V DC Power Source
HXDC4812, Isolated Type 48V To 12V DC-DC Converter, 12V DC Power Source
HXDC4812, Isolated Type 48V To 12V DC-DC Converter, 12V DC Power Source
HXDC4812, Isolated Type 48V To 12V DC-DC Converter, 12V DC Power Source
