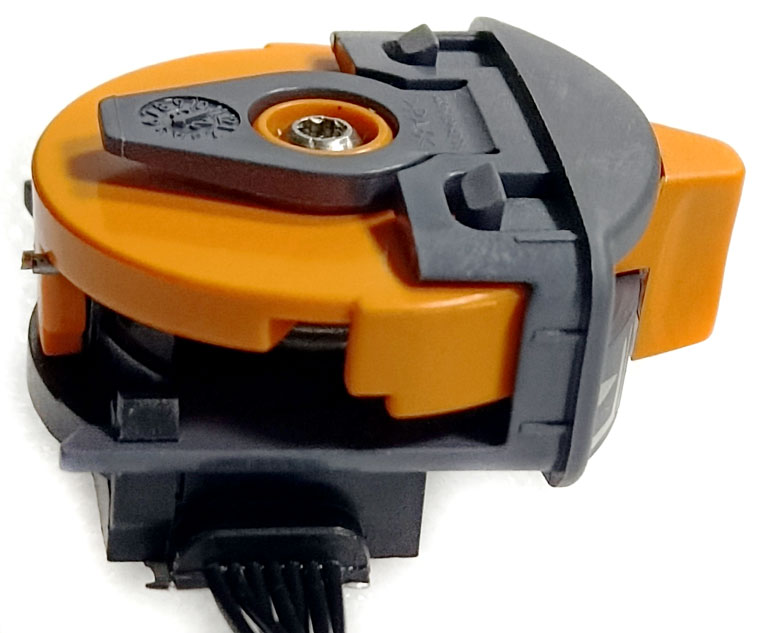

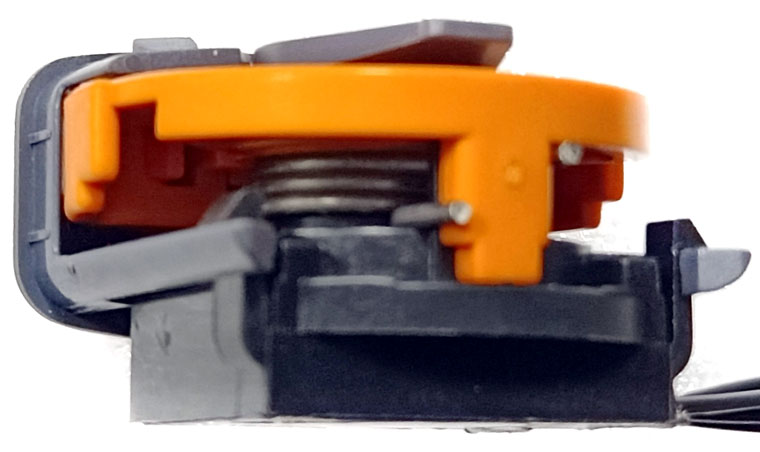

FREI Thumbwheel POLLANA, Proportional Button (Slider)

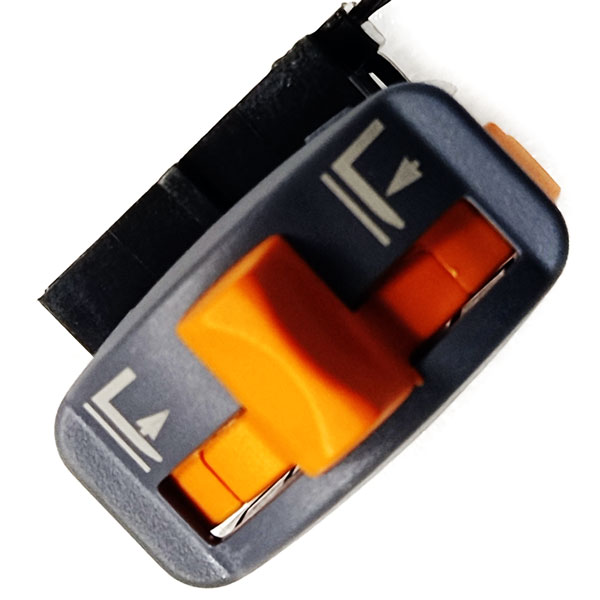

Part Number: 3023-00098-31 (3205-00323-OV), With Single-Ended Signal Centred, With Raise / Lower Symbol

Overview:

The compact POLLANA thumbwheel allows analogue functions to be controlled precisely. Depending on whether the short or the long actuator is attached, it can be used as a thumbwheel or a single-axis joystick.

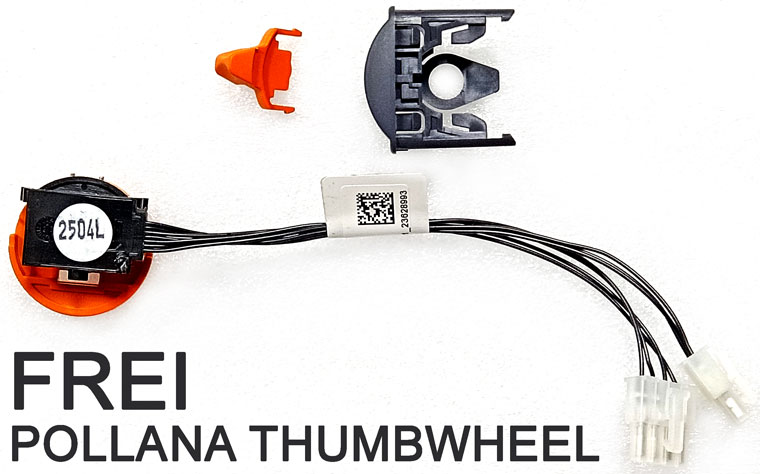

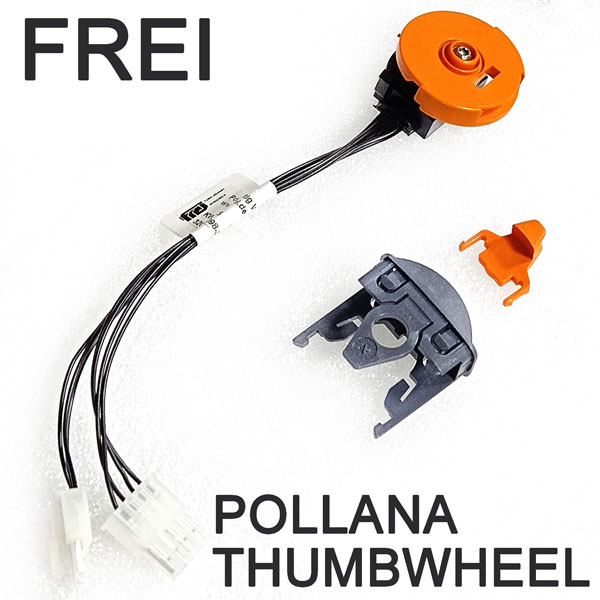

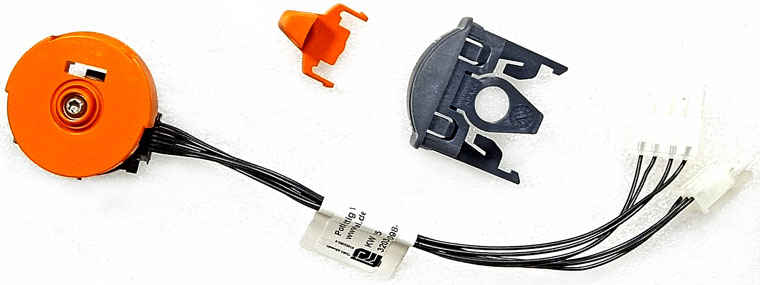

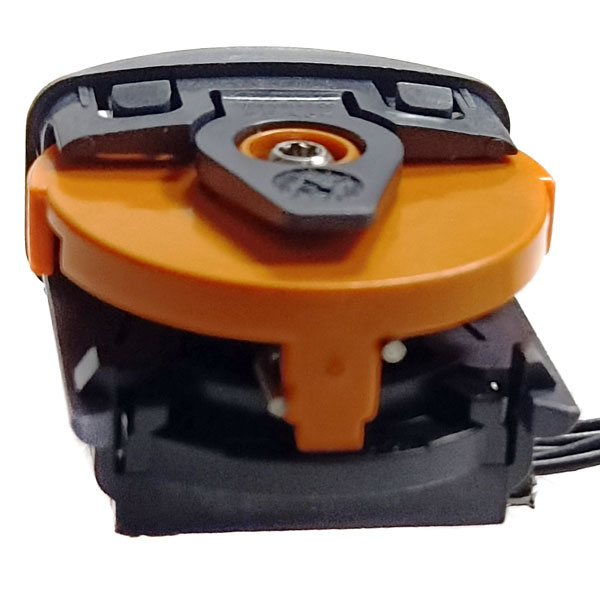

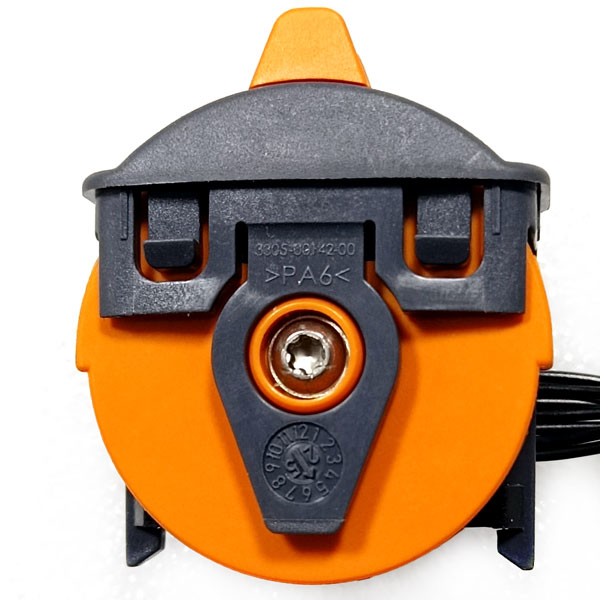

Note: The FREI Thumbwheel POLLANA is shipped as three separate components (as shown in the product photo). Please assemble them upon receipt. Before assembly, carefully inspect all three components to ensure proper fit. To avoid damage, it is recommended not to disassemble the parts once assembled, as the plastic components are fragile.

Features:

• Neutral position in the middle or at the end stop
• Angle of rotation: ± 30° or 60°
• Conductive-plastic technology
• One analogue signal (V or Z characteristic)
• Two digital direction signals
• Ergonomic control
• Protection class: IP6K5 (front)
• Abrasion-resistant laser inscription
• Version with long push-on lever available for use as a fingertip joystick

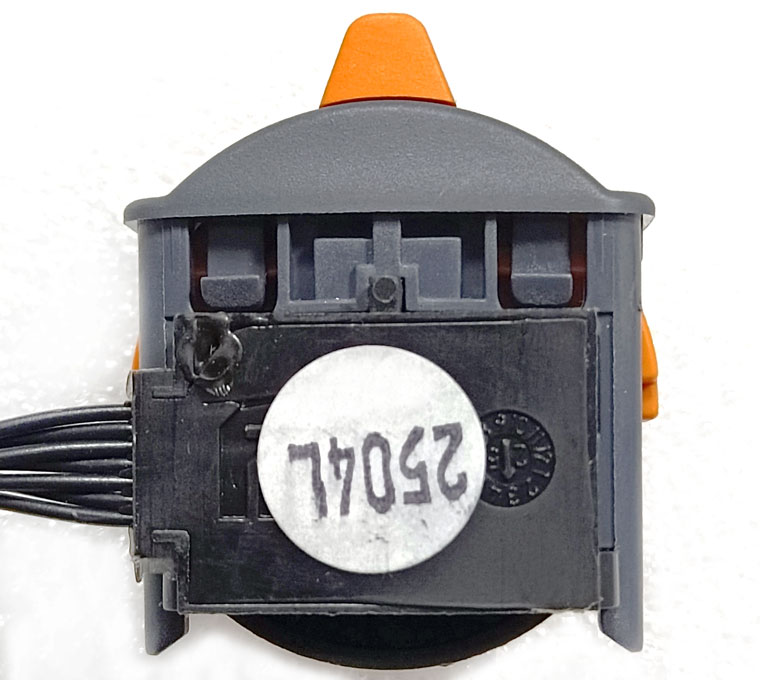

Thumbwheel POLLANA 3203-00098-31 (3205-00323-OV) has two MOLEX Mini-Fit Jr.™ Connectors, one 3-Pin connector and one 4-Pin connector:

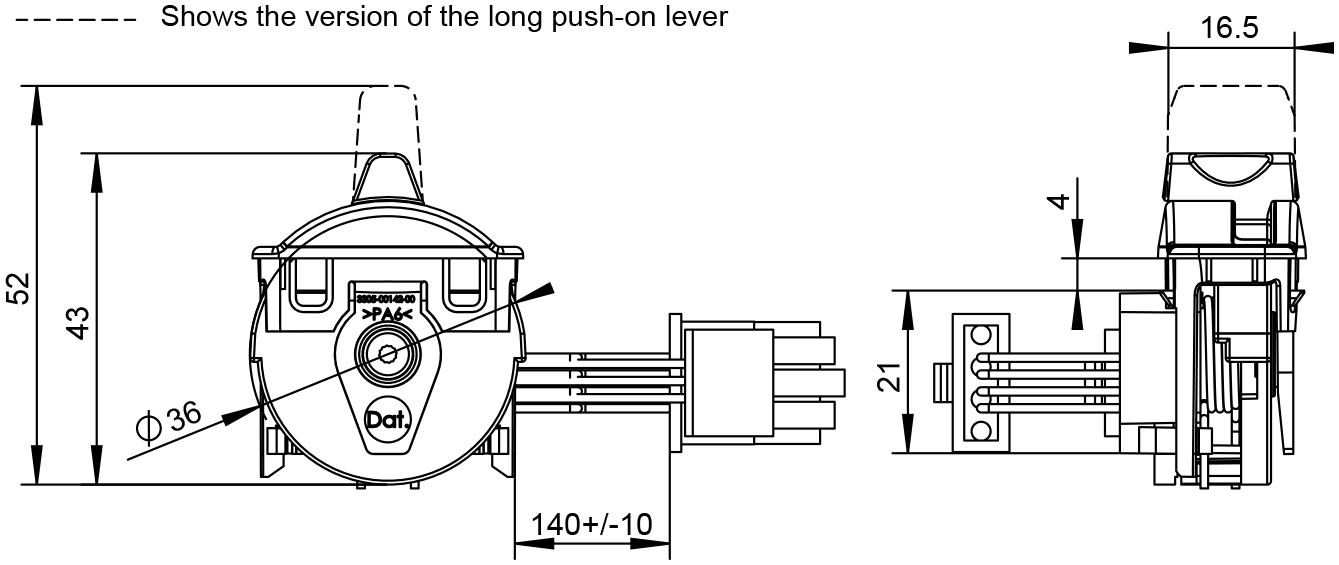

Dimensions (unit: mm):

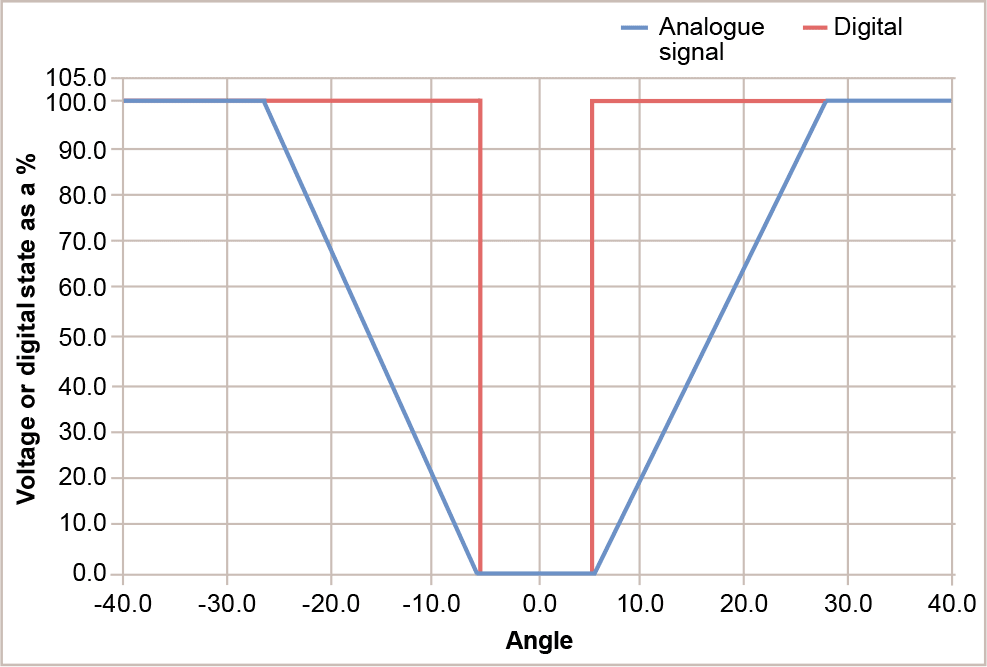

Characteristics curve (single-ended signal):

Technical data:

• Name: FREI Thumbwheel POLLANA, Proportional Button (Slider)
• Sensor: Conductive plastic potentiometer
• Potentiometer supply: Max. 15 VDC
• Resistance: 5 kΩ for wig-wag signal
• Resistance: 2 x 4 kΩ parallel for single-ended signal
• Resistance tolerance: ±20%
• Wiper current: < 0.5 mA
• Transverse current: Max. 4 mA
• Electrical angle: ±28°
• Mechanical angle: ±30°
• Direction signal switching point: ±5.5°
• Direction signal switching current: Max. 1 mA / 60 V
• Single-ended signal slope: ±7°
• Operating temperature: -30°C to +60°C
• Degree of protection according to DIN 40050-9: IP6K5 (except for the connector)
• Storage temperature: -40°C to +85°C
• Service life: 1 million cycles

We supply also:

• FREI 3105F00136-01, potentiometer (single-ended signal), with direction signals
• FREI 3203-30630-A0, 0-5V throttle + forward / reverse switch, TEMO200 / TEMO600 tiller head part
• FREI / CURTIS tiller head knobs NOCO-ETK-03, fit traction switches 3203-30630-A0 and 3105F00136-01
• FREI TEMO 200, Pallet Stacker & Pallet Jack Tiller Head
