Overview

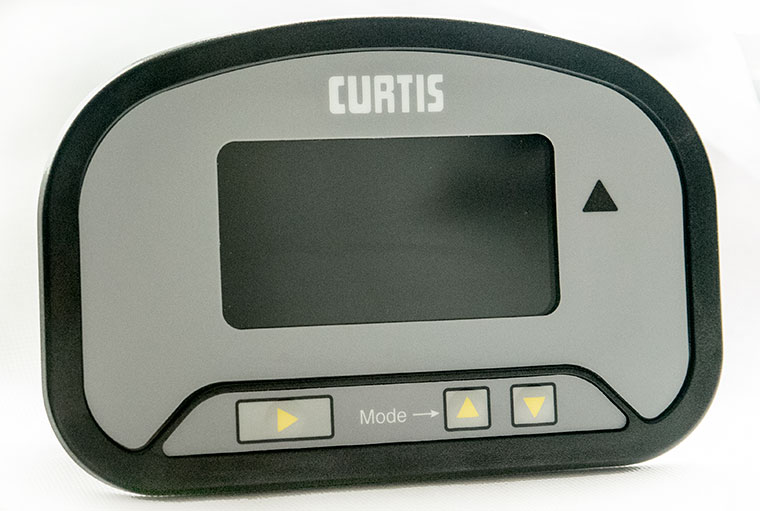

The CURTIS enGage IV instrument panels are widely used as dashboard, for industrial and commercial battery powered motor driving systems, including material handling vehicles, outdoor power and construction equipment, engine driven stationary equipment, commercial cleaning equipment, and light-on-road vehicles.

For more product details, please take a reference with the CURTIS enGage IV Manual and CURTIS enGage IV Datasheet.

Features include:

• Fully customizable instrument. You design your own instrument to your specific applications and needs, with a wide palette of possibilities.
• Analog, digital & CAN functionality in one instrument. All aspects of vehicle management, control and display can be accommodated.
• CAN communication allows seamless interconnectivity with other system components, such as motor controllers.
• Microprocessor based logic eliminates or reduces the need for auxiliary vehicle circuits, such as timing circuits.
• One hardware set can be instantly programmed into a wide range of OEM specified instrumentation for use in a variety of different vehicles.
• Large, easy-to-read dot matrix LCD is backlit for ideal viewing in all lighting conditions.
• Variety of different backlighting choices available – green and white are standard.
• enGage® IV replaces up to 4 gauges. OEMs can view up to 4 traditional gauge functions simultaneously in a variety of styles including numeric, bar or simulated needle.
• Up to 6 switched inputs are available to track status of critical vehicle parameters, such as over-temperature, parking break, low-fuel, etc.
• Displays can include multiple warning icons and an advisory line for hour meters, maintenance monitors and time-of-day clock.
• Provides more information, such as diagnostics to the operator, while eliminating unnecessary wiring.
• Password protected, enabled field-programming of maintenance monitoring, elapsed time and battery discharge profiles matches the panel to the specific user application.
• Visual warnings include flashing LCD icons and bargraph segments, and dual color warning LED.
• Three 1-Amp FETs are used to control OEM specified vehicle functions, such as alarms, lift-lockout, etc.
• For battery powered vehicles, innovative Curtis battery monitoring technology provide reliable state-of-charge information.
• It’s easy for the operator to access and change parameters and display menus with accessible front panel buttons.
• IP65 rated front panel (IP 40 rear) assures performance in the harshest environments.

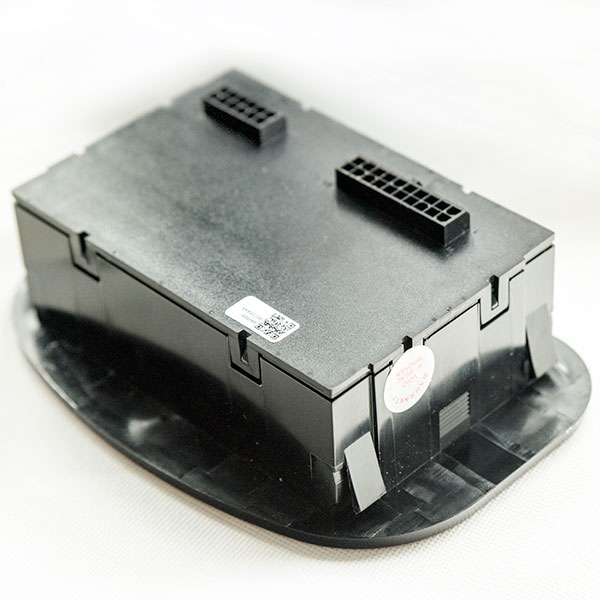

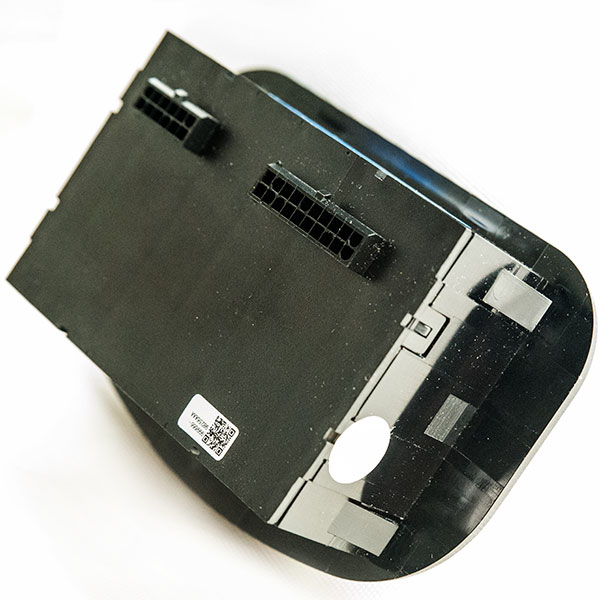

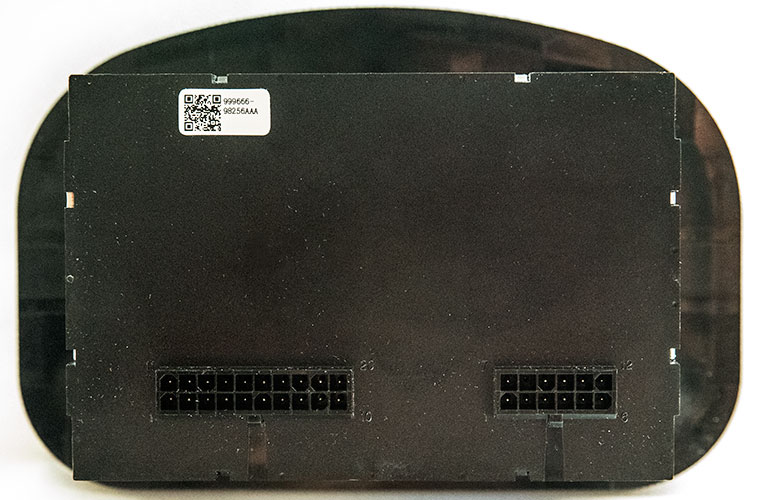

• Easy Snap-Fit design and integrated connector lowers production costs by eliminating traditional mounting hardware kits.
• Reliable solid-state design means no moving parts to wear out.
• Attractive contemporary styling enhances vehicle design and maximizes readability.

Please contact us for payment details: info@noco-evco.com

Free Int'l Expedited Shipping

12-Month warranty

Manual (PDF format)

The Curtis enGage® IV is a microprocessor based instrument panel that can be customized to monitor, display and control numerous vehicle functions in a single integrated package. The panel is fully CANopen compatible. LCD Display: FSTN LCD, 240x128, Dot Matrix, Monochrome CANbus: CANopen, J1939 Housing: Rectangular We can provide the enGage® IV with preset configuration for specified vehicle model. For more details of product setting, please contact us.
