HELI / HANGCHA / JAC / LIUGONG Forklift Throttle

Model: EFP712-2406, output 0-5VDC

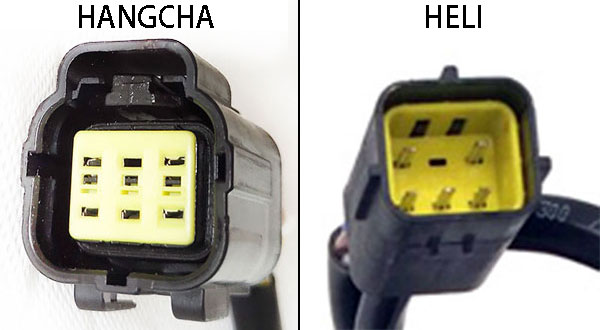

We supply the throttles EFP712-2406 with different connectors, please choose the throttle with correct connector form. We will provide the mating connector for each throttle.

Mating Connector & Installation Kit

Overview:

The foot pedal throttle EFP712-2406 is a 5-Wire 0-5V Accelerator, is widely used in forklifts (HELI, HANGCHA, JAC, LIUGONG), golf cart and other electric mobility vehicles.

Key Features:

• Model: EFP712-2406 (working with CURTIS motor controllers)
• Switch ON / OFF signal: 0V - DC power source voltage
• Operation temperature range: -55°C –120°C
• Storage temperature range: -40°C - 80°C
• Mechnical lifespan: 1,000,000 times

Specifications:

• The foot pedal could be installed at both ends of rotating shaft
• Input voltage: 24-80V DC
• Signal output: 0-5V DC
• 5-Pin waterproof connectors
• Solid metal case, ingress protection: IP55
• Installation kit is included: bolts, nuts and washes
• Mating connector is included
• Net weight: 1.10 kg (with installation kit and mating connector)

Wiring Instruction & Connectors:

Wiring diagram:

Dimensions:

HELI / HANGCHA / JAC / LIUGONG Forklift Throttle

Model: EFP712-2406, output 0-5VDC

We supply the throttles EFP712-2406 with different connectors, please choose the throttle with correct connector form. We will provide the mating connector for each throttle.

Overview:

The foot pedal throttle EFP712-2406 is a 5-wire 0-5V Accelerator, is widely used in forklifts (HELI, HANGCHA, JAC, LIUGONG), golf cart and other electric mobility vehicles.

Key Features:

• Model: EFP712-2406 (working with CURTIS motor controllers)
• Switch ON / OFF signal: 0V - DC power source voltage
• Operation temperature range: -55°C –120°C
• Storage temperature range: -40°C - 80°C
• Mechnical lifespan: 1,000,000 times

Mating Connector & Installation Kit

Specifications:

• The foot pedal could be installed at both ends of rotating shaft
• Input voltage: 24-80V DC
• Signal output: 0-5V DC
• 5-Pin waterproof connectors
• Solid metal case, ingress protection: IP55
• Installation kit is included: bolts, nuts and washes
• Mating connector is included
• Net weight: 1.10 kg (with installation kit and mating connector)

Wiring Instruction & Connectors:

Wiring diagram:

Dimensions:
