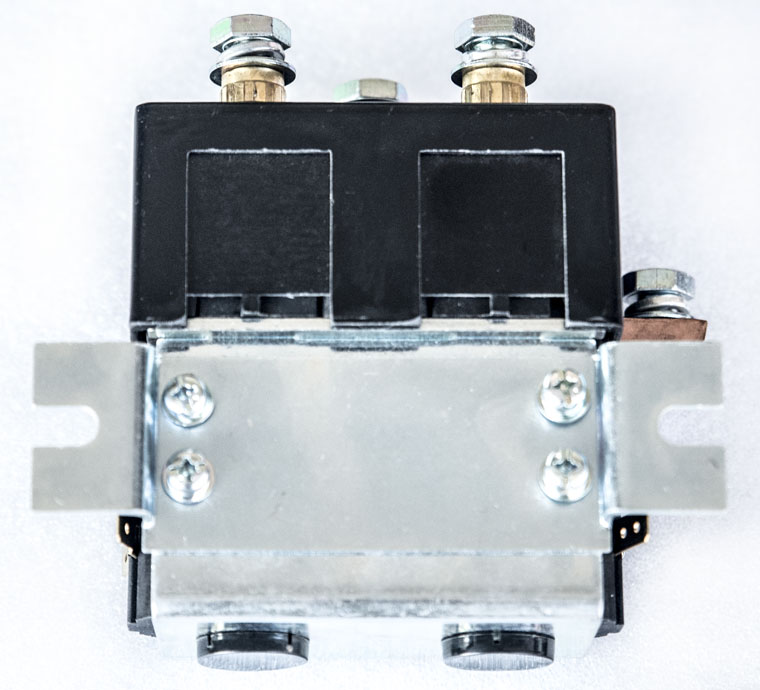

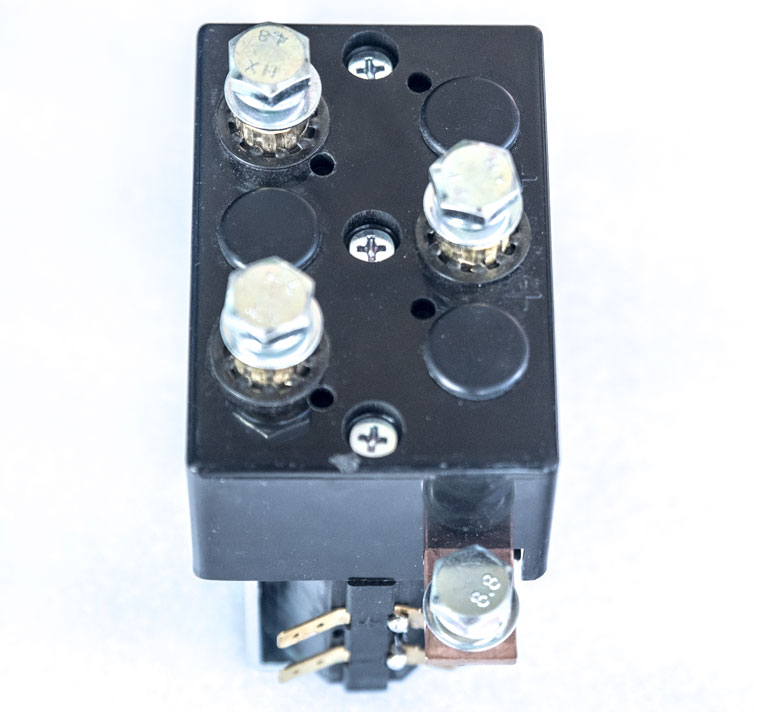

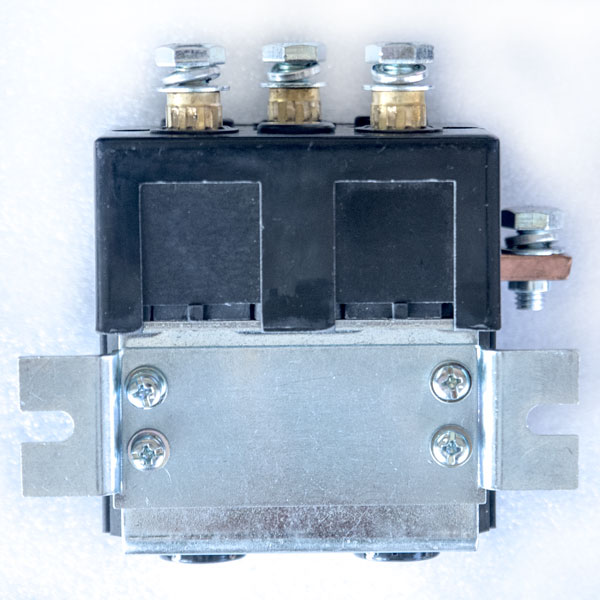

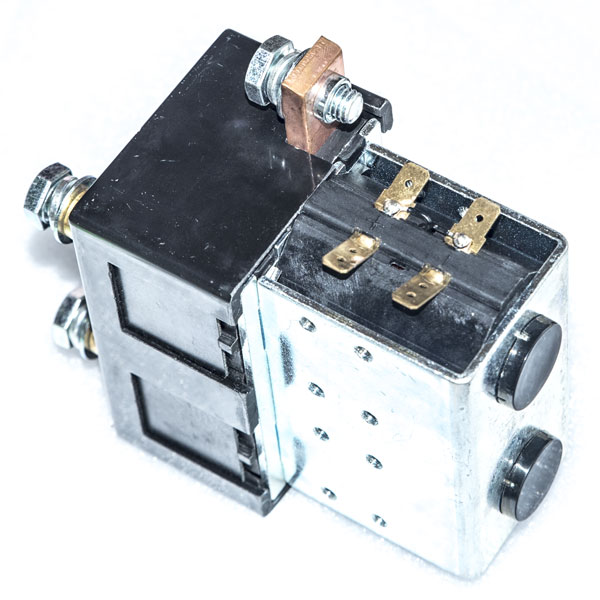

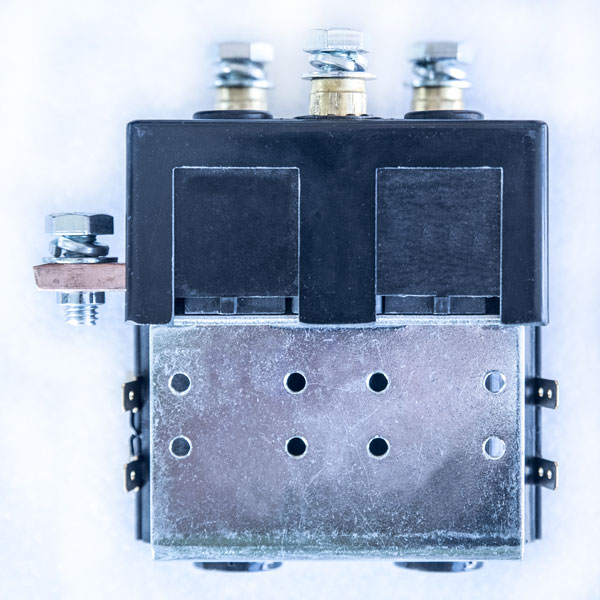

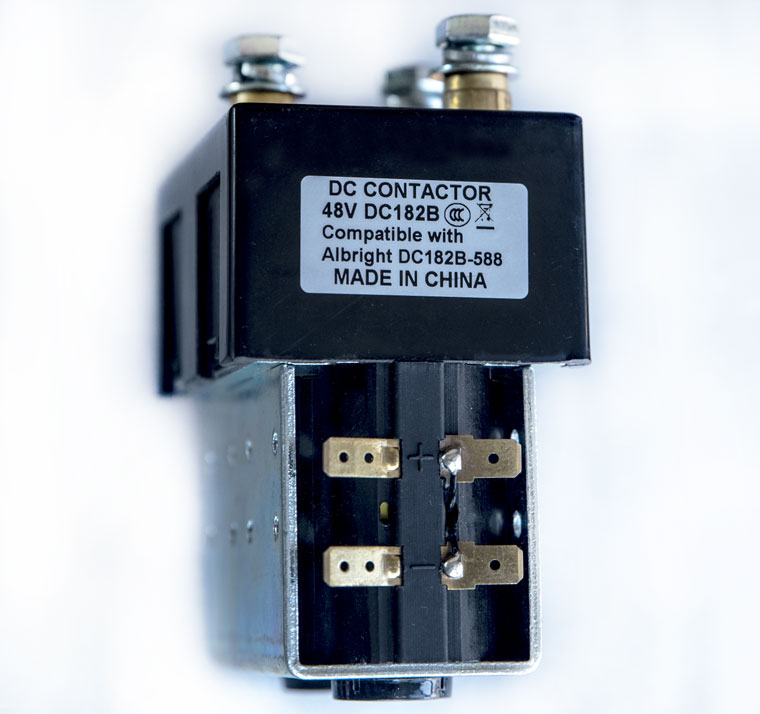

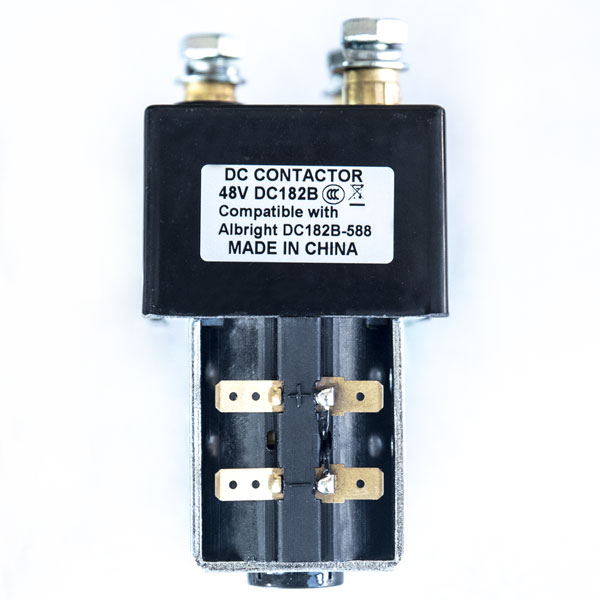

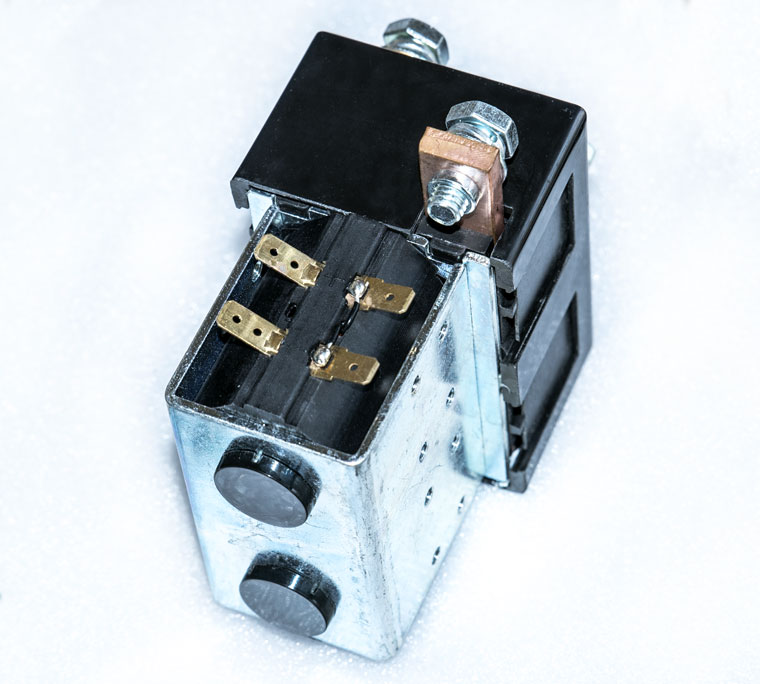

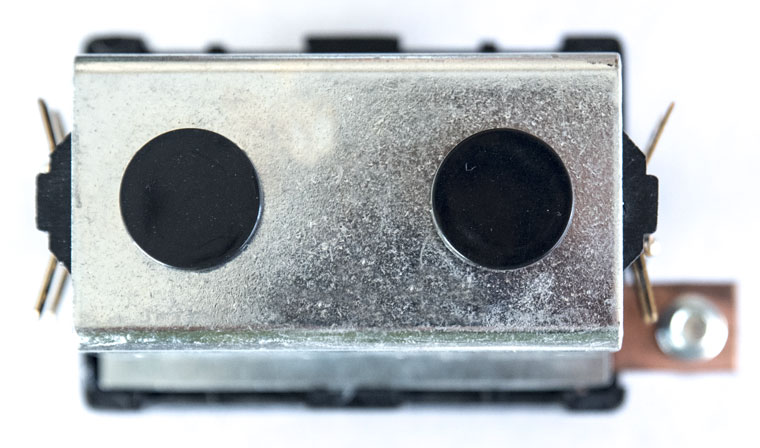

DC182B-588, 48V Monoblock DC Contactor

Compatible with Albright motor reversing contactor DC182B-588, JLG boom lift forward / reverse solenoid

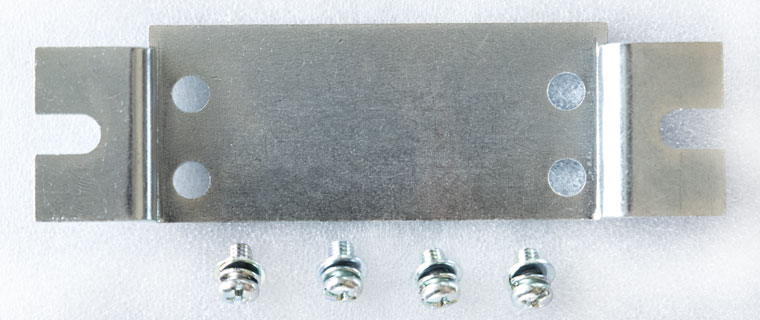

Bracket

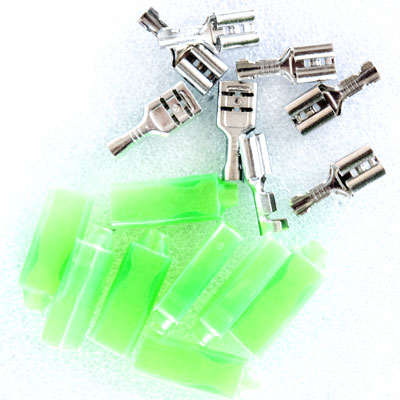

6.3 mm Spade Terminals

Specifications:

• Model: DC182B-588 (compatible with Albright DC182B-588)
• Contactor Type: Monoblock, Single Pole Double Throw (for motor reversing)
• 6.3 mm (0.25" or 1/4") spade terminals for coil connections
• Main Circuit Voltage Rating: 48V DC
• Fitted with permanent magnet blowout
• With bracket, spade terminals, bolts & washers
• Weight: 1.66 kg

Notice: DC182B-588 is magnetic blowout type DC contactor, mainly applied for motor reversing application.

Typical applications:

• Electric boom lift (part number: 7022002):
  • JLG E300A
  • JLG E300AJ
  • JLG E300AJP
  • Etc.
• Electric golf carts
• Electric forklifts
• Etc.

We supply other DC182 / DC182B contactors:

• 24V Albright DC182-3
• 48V Albright DC182B-537T, alternative of DC182B-7
• 80V Albright DC182B-581T

Overview:

DC182 has a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. They comprise two single-pole changeover contactors configured in such a way so that all the necessary links for DC motor reversing applications are contained within the compact housing.

The main terminals can be configured in a variety of ways in order to suit the application layout.

Circuit Diagram:

Dimensions (unit: mm):

DC182B-588, 48V Monoblock DC Contactor

Compatible with Albright motor reversing contactor DC182B-588, JLG boom lift forward / reverse solenoid

Specifications:

• Model: DC182B-588 (compatible with Albright DC182B-588)
• Contactor Type: Monoblock, Single Pole Double Throw (for motor reversing)
• 6.3 mm (0.25" or 1/4") spade terminals for coil connections
• Main Circuit Voltage Rating: 48V DC
• Fitted with permanent magnet blowout
• With bracket, spade terminals, bolts & washers
• Weight: 1.66 kg

Notice: DC182B-588 is magnetic blowout type DC contactor, mainly applied for motor reversing application.

Typical applications:

• Electric boom lift (part number: 7022002):
  • JLG E300A
  • JLG E300AJ
  • JLG E300AJP
  • Etc.
• Electric golf carts
• Electric forklifts
• Etc.

We supply other DC182 / DC182B contactors:

• 24V Albright DC182-3
• 48V Albright DC182B-537T, alternative of DC182B-7
• 80V Albright DC182B-581T

Bracket

6.3 mm Spade Terminals

Overview:

DC182 has a monoblock construction, resulting in a neat compact design which is compatible with modern electronic control systems. They comprise two single-pole changeover contactors configured in such a way so that all the necessary links for DC motor reversing applications are contained within the compact housing.

The main terminals can be configured in a variety of ways in order to suit the application layout.

Circuit Diagram:

Dimensions (unit: mm):
