Hydraulic Pressure Crimping Tool / Press Plier

Hexagon crimping, 10-120 mm²

Full Set Of YQ-120

The crimping tool YQ-120 is a mechanical device consisting of hydraulic cylinder, dies and manual press handle, for squeezing a lug (connector) together with a wire.

A good example of application of crimping tool YQ-120 is the process of affixing a power connector (SB175 or SB350) to the end of a cable.

How to use:

• Select the appropriate die set.
• Insert the upper crimping die and the down crimping die to match the die holder when both die halves are in place.
• Make sure both dies halves are secured beforing operating the tool.
• Fully insert the cable into the barrel of the connector.
• Place the connector between the dies, Pump the handle until reach to the maximum pressure, then spin the screw to release the pressure manually.
• The piston will retract, take out the connector, the tool is ready for its next cycle.

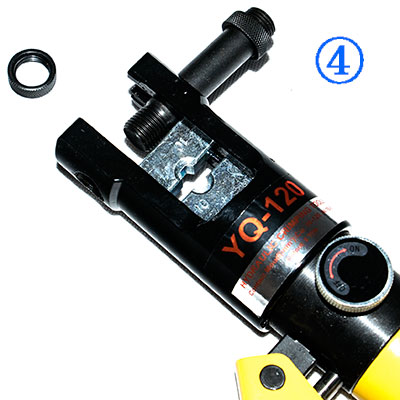

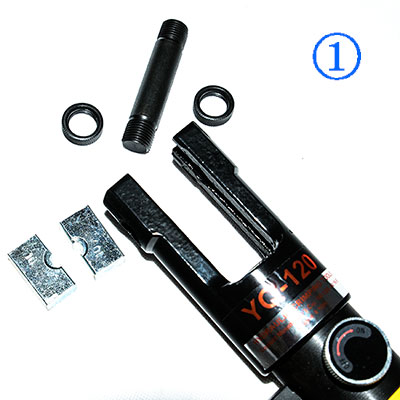

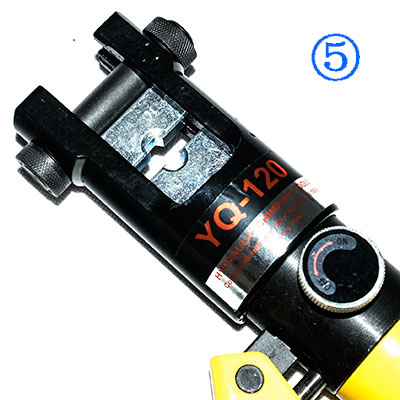

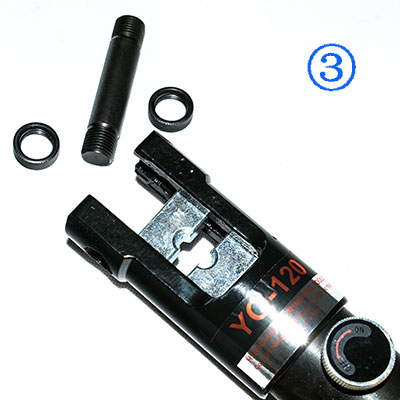

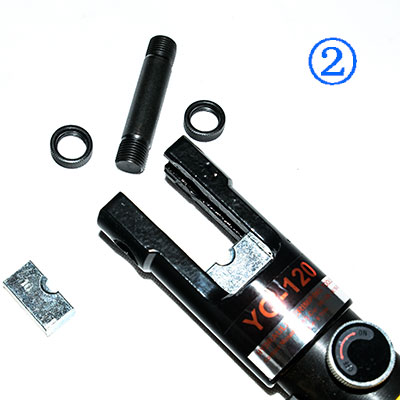

Procedures of mounting dies:

KEY FEATURES

• Model: YQ-120
• Max. hydraulic pressure: 8-ton
• Net weight: 2.8 kg

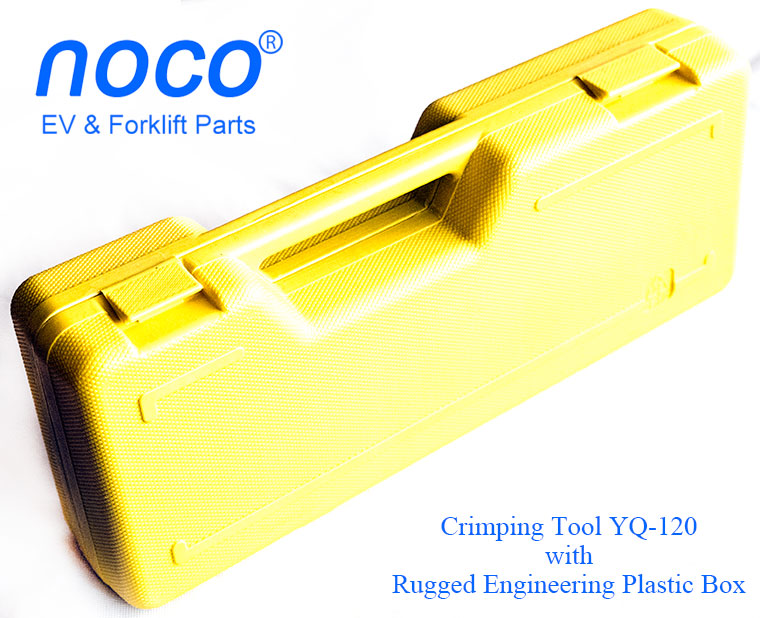

• Package weight: 4.2 kg (with dies and plastic case)

Caution: mounting and (or) disassembling the tool should be performed only by a trained professional.
