CURTIS 1232 / 1234 / 1236 / 1238 AC Motor Controller Programming Cable
AMP 35-Pin Low Power Plug Connector
MOLEX 4-Pin Socket Connector
Lowest Unit Price 12.65 USD
1 / 4
CURTIS 1232 1234, 1236, 1238 And 1239 AC Motor Speed Controller Programming Cable
2 / 4
CURTIS 1232 1234, 1236, 1238 And 1239 AC Motor Speed Controller Programming Cable
3 / 4
CURTIS 1232 1234, 1236, 1238 And 1239 AC Motor Speed Controller Programming Cable
4 / 4
CURTIS 1232 1234, 1236, 1238 And 1239 AC Motor Speed Controller Programming Cable
Quantity Option
Secured Payment of PayPal, VISA, MASTERCARD

Cable links CURTIS AC motor controller and programmer

Works with CURTIS 1307 / 1311 / 1313 handheld programmers and CURTIS 1314 PC station programmer

Description:

This programming cable is designed for diagnosing CURTIS AC motor speed controllers through a CURTIS programmer. It works with different CURTIS AC controller models:

  • 1232 / 1232E / 1232SE controllers:
    • 1232E-2321 / 1232-2301
    • 1232E-2225
    • 1232E-5321
    • 1232SE-2421 / 1232SE-2422
    • 1232-2101 / 1232-2201 / 1232-2202
    • Etc.
  • 1234 / 1234E / 1234SE controllers:
  • 1236 / 1236E / 1236SE controllers:
    • 1236-4402 / 1236-4502 / 1236-5301 / 1236-5401
    • 1236E-6401
    • 1236SE-5621
    • Etc.
  • 1238 / 1238E controllers:
  • 1239 / 1239E controllers

Features:

  • Easy to use, plug-in 35-Pin connector for CURTIS AC controller and 4-Pin connector forCURTIS 1313 handheld programmer or CURTIS 1314 PC station programmer
  • Simple wiring, users need only to provide a low power rate DC source (for example 24V / 50W; maximum voltage = rated voltage of controller), no need to connect to other parts than the controller
  • Quick and clean, can be used in different places, onboar, in a garage or on an office table

By linking an AMP 35-Pin plug connector to a MOLEX 4-Pin socket connector, the cable provides a connecting interface between the CURTIS programmers (1313-4331 Handheld Programmer or 1314 PC Programming Station) and CURTIS 1232 / 1234 / 1236 / 1238 / 1239 AC motor controllers (indcluding the E & SE series).

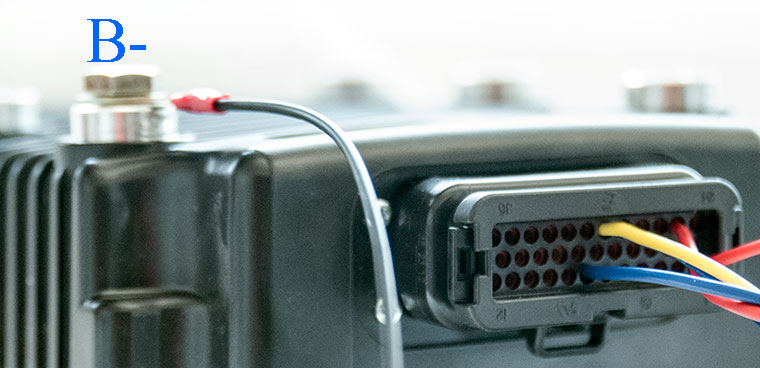

CURTIS 1234, 1236 or 1238 AC Motor Speed Controller Programming Cable, B- Terminal Wiring On Controller

Figure 1 - Example Of Wiring

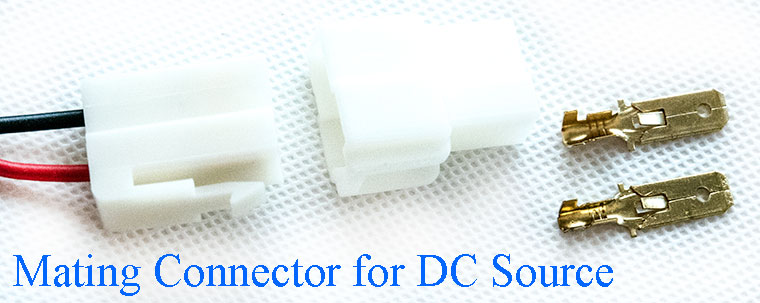

CURTIS 1232, 1234, 1236 or 1238 AC Motor Speed Controller Programming Cable, Connectors CURTIS 1232, 1234, 1236 or 1238 AC Motor Speed Controller Programming Cable, Mating Connector For DC Source

Figure 2 - Wire & Mating Connector

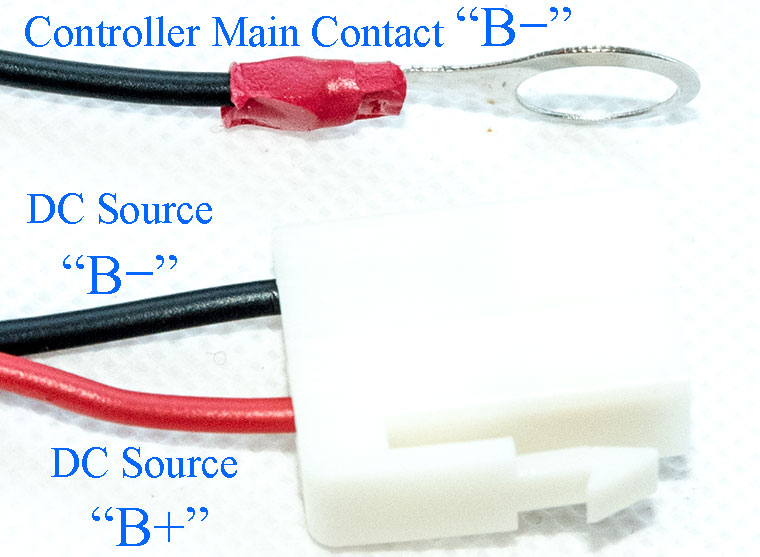

CURTIS 1232 / 1234 / 1236 / 1238 / 1239 AC Motor Speed Controller Programming Cable, Wiring of DC Source

Figure 3 - Wiring Of DC Source

By using this programming cable, for diagnosing and programming a CURTIS AC 1232 / 1234 / 1236 / 1238 controller, you need to connect:

  • the main terminal (busbar) "B-" of controller to the DC power source negative (B-) pole
  • the AMP 35-Pin connector to its mating part on controller
    • the programmer 4-Pin MOLEX connector to its mating part of the programming cable
    • the B+ terminal of 35-Pin connector (extended red wire with 2-Pin connector) to the DC source positive (B+) pole

The 2-Pin connector is used for connecting the DC source, red wire for "B+" and black wire for "B-".

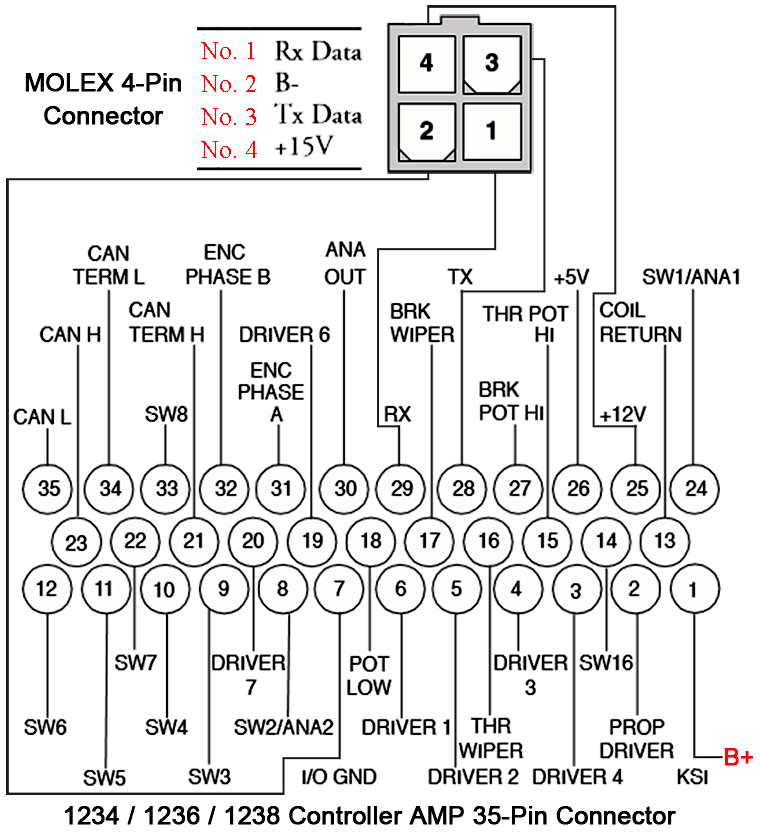

CURTIS 1234, 1236 or 1238 AC Motor Speed Controller Programming Cable Wiring Diagram

Figure 4 - Wiring Diagram
