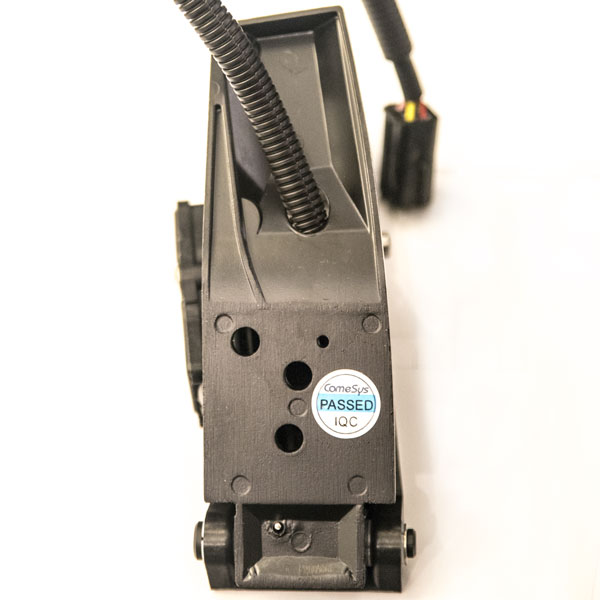

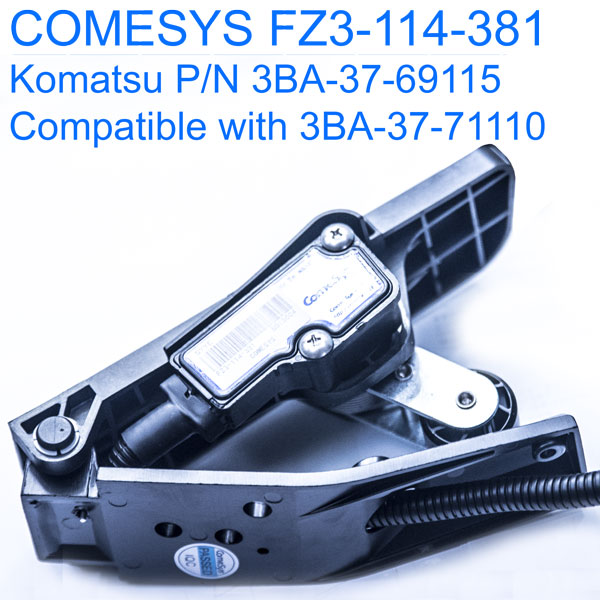

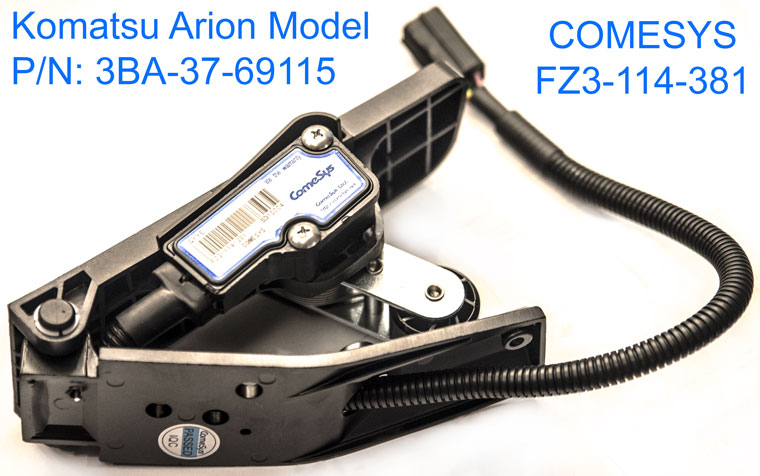

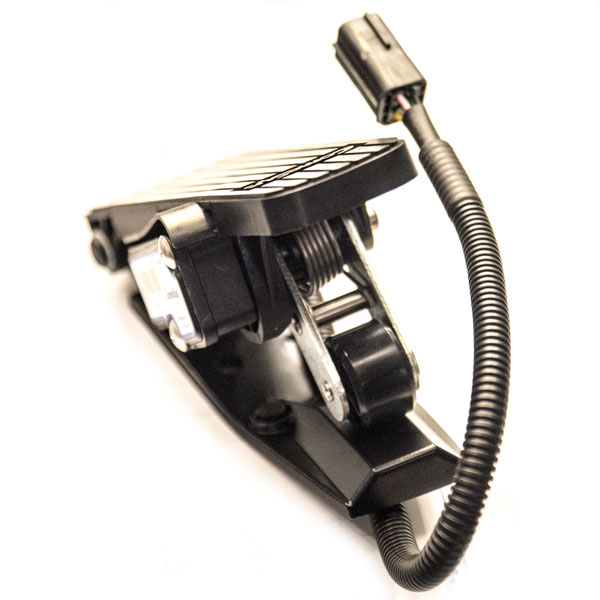

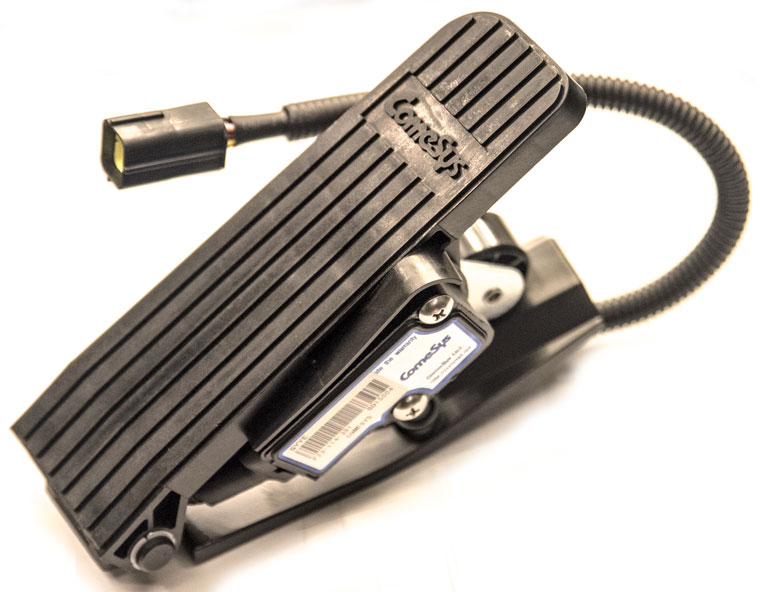

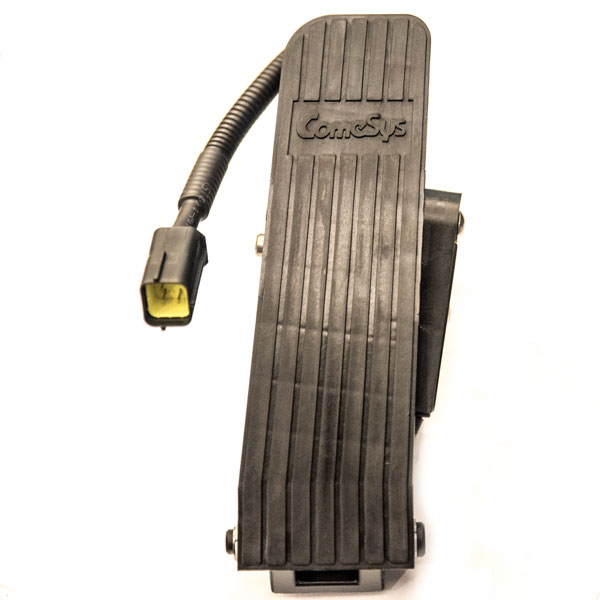

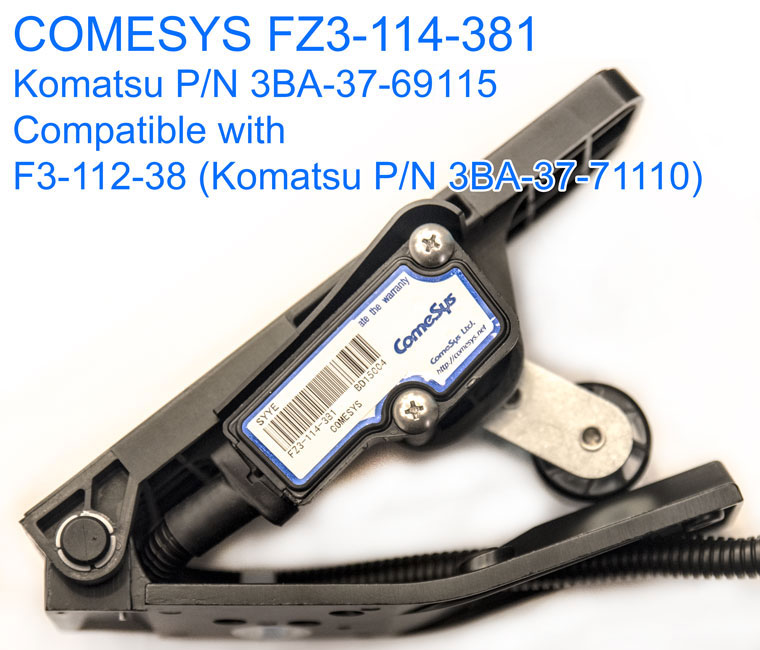

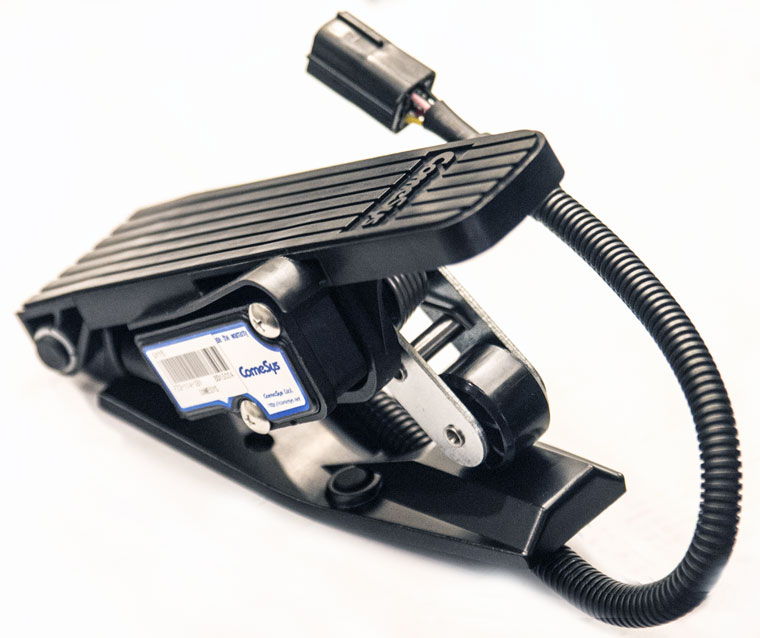

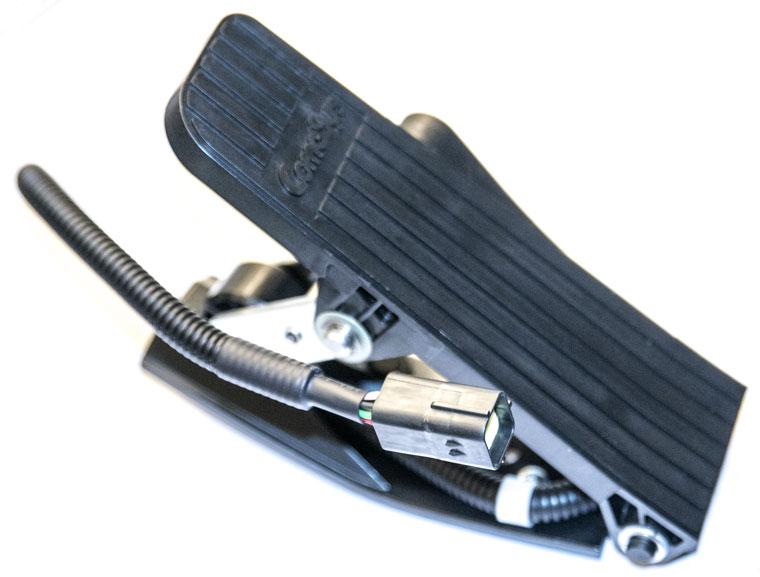

Komatsu Forklift Accelerator FZ3-114-381

COMESYS Foot pedal throttle, with mating connector, Komatsu part number 3BA-37-69115, compatible with 3BA-37-71110 (COMESYS F3-112-38)

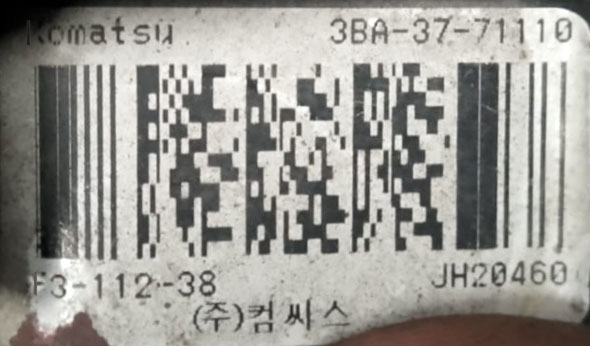

Compatible with F3-112-38

Description:

Installed on the aluminum die-casted bottom plate, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by dual stainless steel return springs, the COMESYS foot pedal throttle model FZ3-114-381 sends voltage throttle signal to motor speed controllers, for driving the traction motors of electric material handling vehicles like forklift and electric truck.

Specifications:

• Komatsu forklift part, accelerator (part number: 3BA-37-69115)

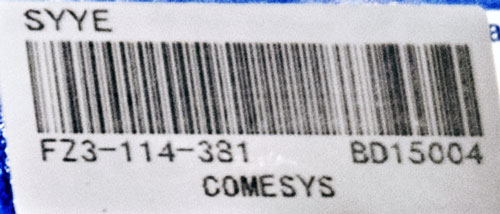

• COMESYS part number: FZ3-114-381, compatible with F3-112-38 (Komatsu part number: 3BA-37-71110)
• Product life : 10,000,000 cycles (full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Installation Kit	Mating Connector	Connector Wiring
Pin Code	Description	Wire Color
A	Vcc, 5V DC	Red
B	Pedal Signal Output	Green
C	Ground	Black
D	Switch, NO	Yellow
E
F	Switch, NO	Pink

Application:

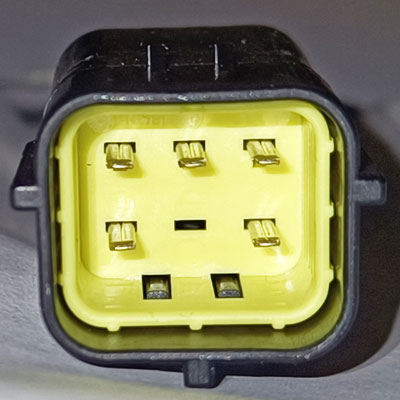

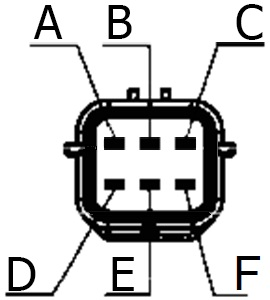

6-Pin Connector

Typically applied as Komatsu forklift part (accelerator), COMESYS foot pedal throttle FZ3-114-381 is ideal for both indoor and outdoor material handling electric vehicles such as forklift, electric truck, golf cart, pallet stacker and tow tractor.

Characteristics:

1. Pedal travel : 17.5 +/- 2deg
2. Pedal resistant force (measured at the point of 150 mm from the pedal pivot axis): initial load: 30N min; full load: 60N max.
3. Working temperature. : -40 - 85 °C
4. Storage temperature. : -40 - 105 °C
5. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis

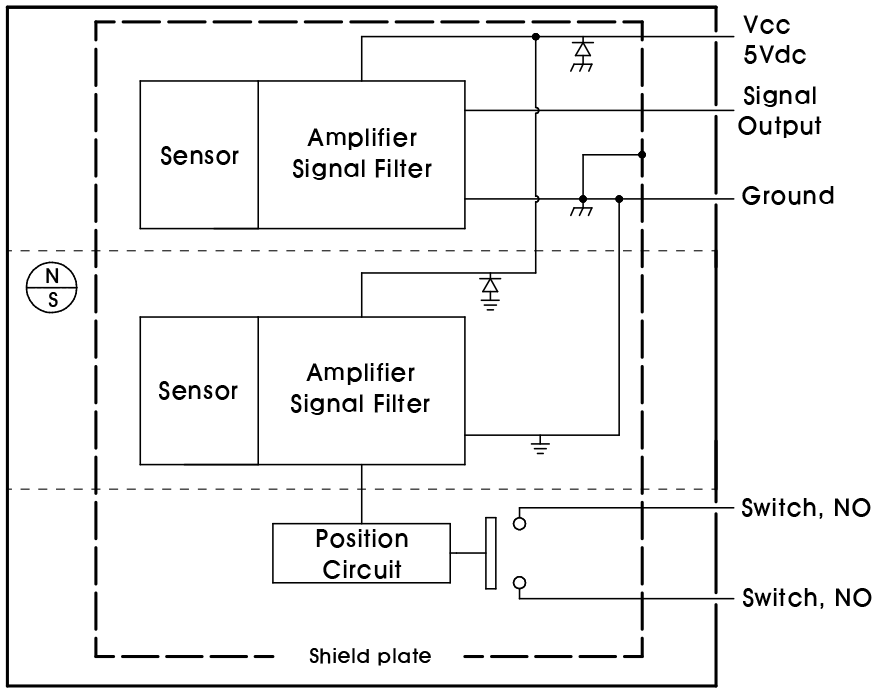

Wiring Diagram:

Komatsu Forklift Accelerator FZ3-114-381

COMESYS Foot pedal throttle, with mating connector, Komatsu part number 3BA-37-69115, compatible with 3BA-37-71110 (COMESYS F3-112-38)

Description:

Installed on the aluminum die-casted bottom plate, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by dual stainless steel return springs, the COMESYS foot pedal throttle model FZ3-114-381 sends voltage throttle signal to motor speed controllers, for driving the traction motors of electric material handling vehicles like forklift and electric truck.

Compatible with F3-112-38

Specifications:

• Komatsu forklift part, accelerator (part number: 3BA-37-69115)
• COMESYS part number: FZ3-114-381, compatible with F3-112-38 (Komatsu part number: 3BA-37-71110)
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Installation Kit	Mating Connector	Connector Wiring
Pin Code	Description	Wire Color
A	Vcc, 5V DC	Red
B	Pedal Signal Output	Green
C	Ground	Black
D	Switch, NO	Yellow
E
F	Switch, NO	Pink

Application:

Typically applied as Komatsu forklift part (accelerator), COMESYS foot pedal throttle FZ3-114-381 is ideal for both indoor and outdoor material handling electric vehicles such as forklift, electric truck, golf cart, pallet stacker and tow tractor.

6-Pin Connector

Characteristics:

1. Pedal travel : 17.5 +/- 2deg
2. Pedal resistant force (measured at the point of 150 mm from the pedal pivot axis): initial load: 30N min; full load: 60N max.
3. Working temperature. : -40 - 85 °C
4. Storage temperature. : -40 - 105 °C
5. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis

Wiring Diagram:
