AIKS ACR01F-F, 4-Pin DC Relay & 5-Pin DC Relay

Working voltage: 12V (14V) / 24V (28V) / 36V / 48V

Working current: 40A Ith

Same as JD2912 series DC relay, derived and developed from Bosch type automotive DC relay, AIKS ACR01F-F relays are widely used in various DC current switching circuits. Main applications include:

• Automotive light & horn
• Engine starter
• Telecommunication remote DC power station
• Photovoltaic energy grid
• Electric vehicle & marine vessel control
• Etc.

KEY FEATURES

• Model: AIKS ACR01F-F
• Some different contact types are available:
  • Code 1Z: 1C type, 5-Pin, one normal open contact, one normal close contact
  • Code 1H: 1A type, 4-Pin, one normal open contact
  • Code 2H: 2A type, 5-Pin, two normal open contacts
  • Code 1D: 1B type, 4-Pin, one normal close contact
• Nominal Current Rating: 40A
• Working Voltage: 12V (14V) / 24V (28V) / 36V / 48V
• Coil Consumption: 1.8W
• Contact Resistance: ≤ 50mΩ
• Isolation Resistance: ≥ 1.0MΩ
• Electric Life: 100,000 times
• Mechanic Life: 10,000,000 times
• Electrical Isolation:
  • Between open contacts: 500VAC
  • Between coil contacts: 500VAC
• Contact: 1/4" (6.3mm) spade terminal
• Working Temperature: -25°C – +100°C
• Product Weight: 34.5g

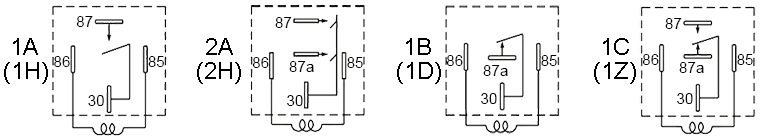

Wiring Diagrams & Relay Types:

Dimensions:

Contacts' Layout:

Same as JD2912 series DC relay, derived and developed from Bosch type automotive DC relay, AIKS ACR01F-F relays are widely used in various DC current switching circuits. Main applications include:

• Automotive light & horn
• Engine starter
• Telecommunication remote DC power station
• Photovoltaic energy grid
• Electric vehicle & marine vessel control
• Etc.

Key features:

• Model: AIKS ACR01F-F
• Some different contact types are available:
  • Code 1Z: 1C type, 5-Pin, one normal open contact, one normal close contact
  • Code 1H: 1A type, 4-Pin, one normal open contact
  • Code 2H: 2A type, 5-Pin, two normal open contacts
  • Code 1D: 1B type, 4-Pin, one normal close contact
• Nominal Current Rating: 40A
• Working Voltage: 12V (14V) / 24V (28V) / 36V / 48V
• Coil Consumption: 1.8W
• Contact Resistance: ≤ 50mΩ
• Isolation Resistance: ≥ 1.0MΩ
• Electric Life: 100,000 times
• Mechanic Life: 10,000,000 times
• Electrical Isolation:
  • Between open contacts: 500VAC
  • Between coil contacts: 500VAC
• Contact: 1/4" (6.3mm) spade terminal
• Working Temperature: -25°C – +100°C
• Product Weight: 34.5g

Wiring Diagrams & Relay Types:

Dimensions:

Contacts' Layout:
