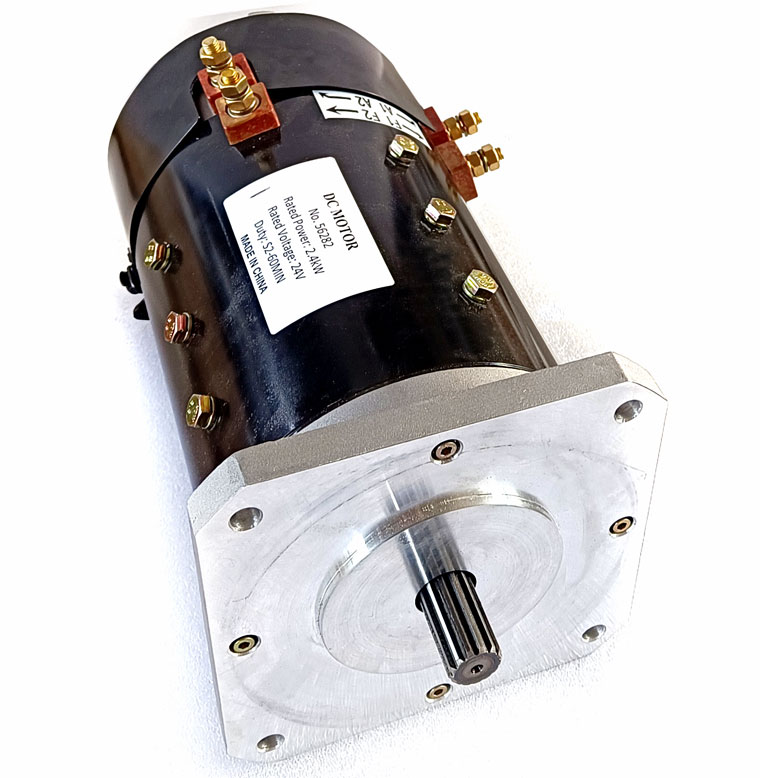

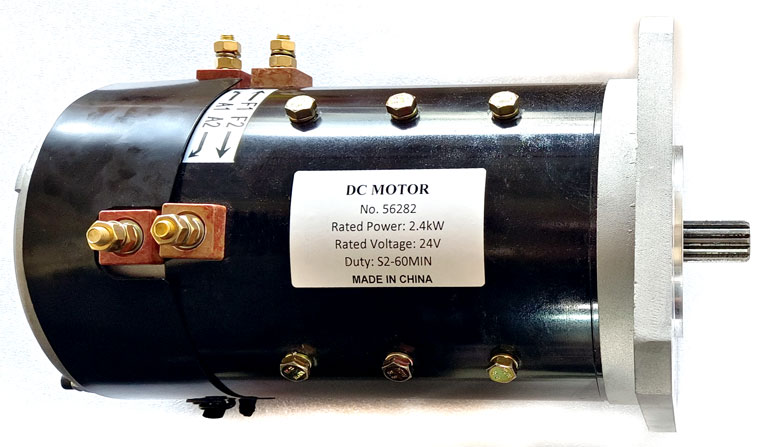

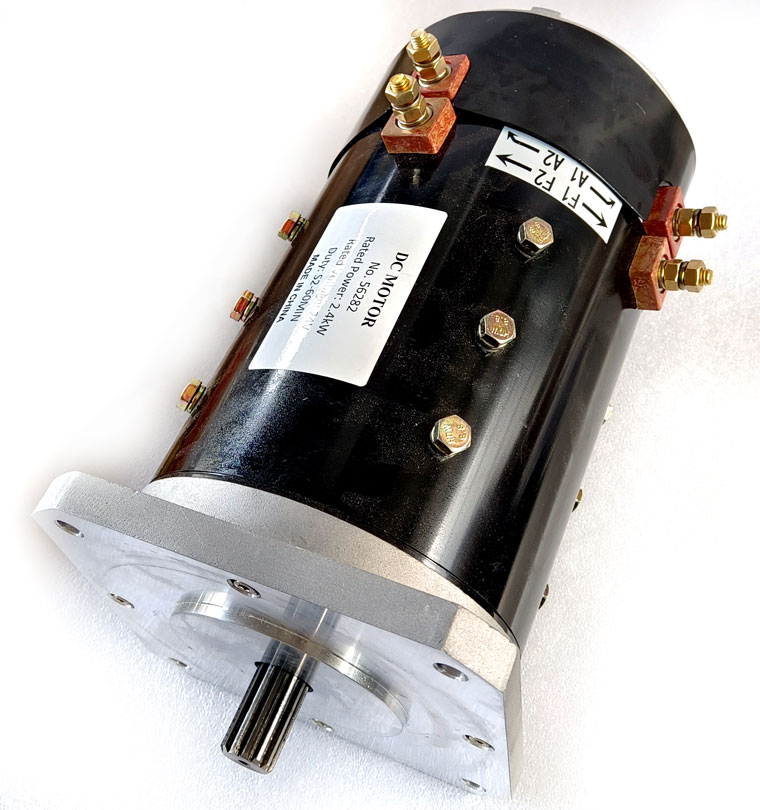

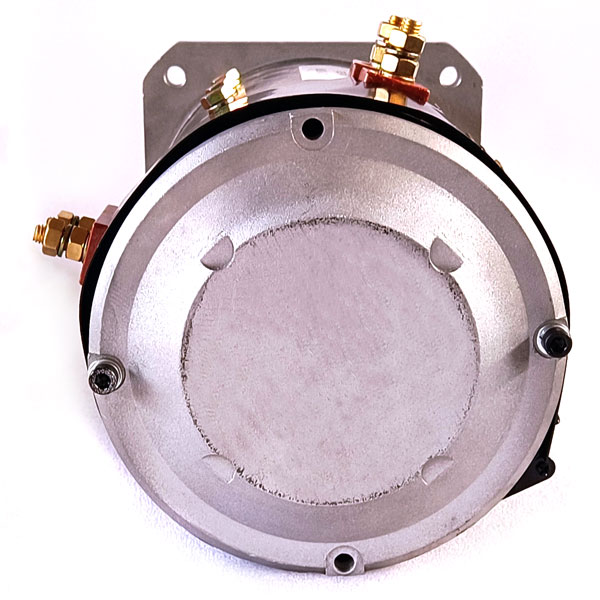

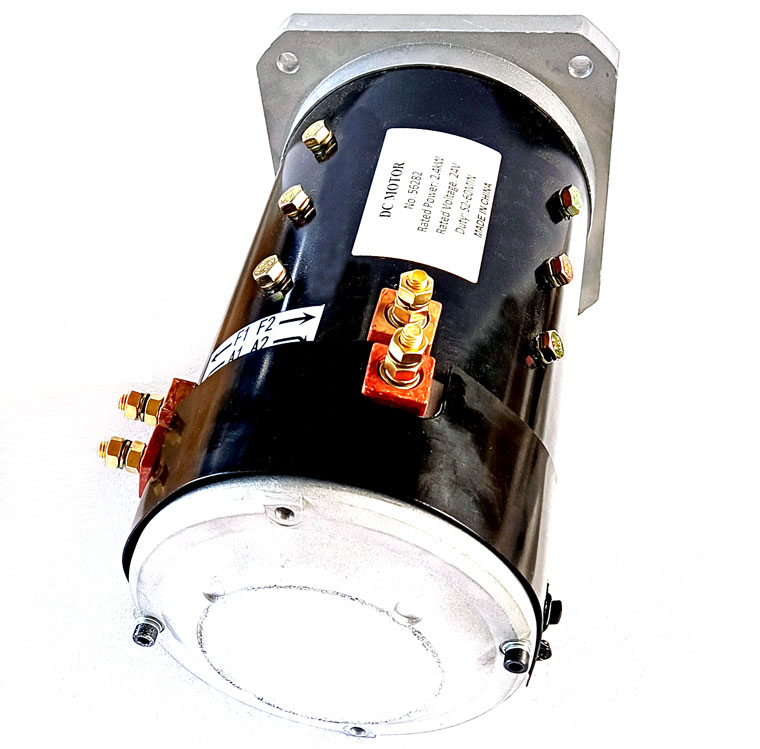

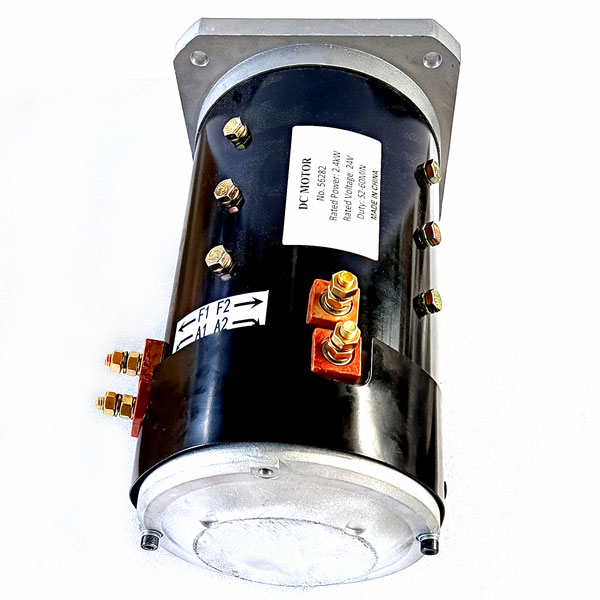

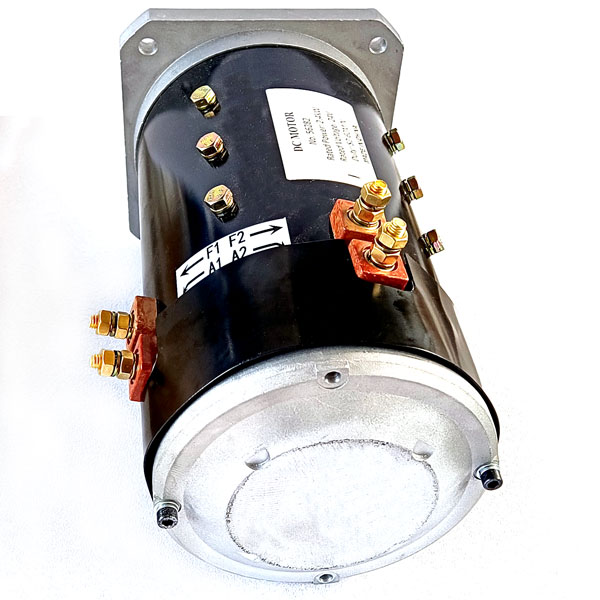

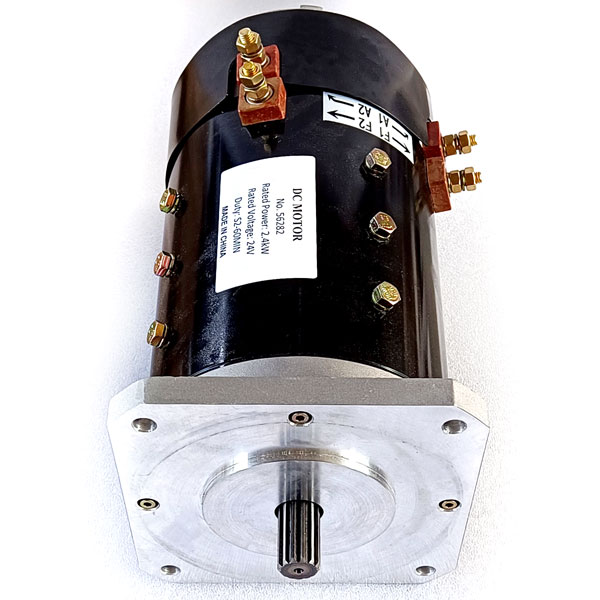

24V / 2.4kW DC SepEx Motor

Compatible with GE 5BC49JB6002

GE Z45 articulated boom lifts drive motor, part number 94197 / 56282 / 1263610

Rated for 24V / 2.4kW, this shunt type motor is the drive motor for GENIE Z45/25 and Z45/25J articulated boom lifts.

Specifications:

• Name: GENIE Z45 articulated boom lifts drive motor, compatible with GE 5BC49JB6002
• GENIE part number: 94197 / 56282 / 1263610
• Nominal power rate: 2.4 kW
• Operating voltage: 24V

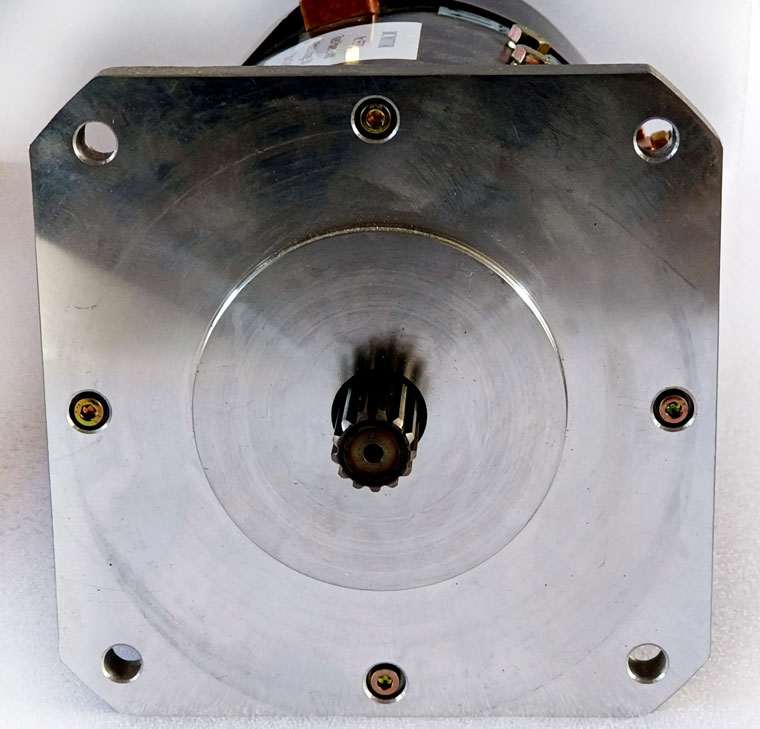

• Spline: 13 teeth
• Insulation: class H
• Net weight: 34.5 kg

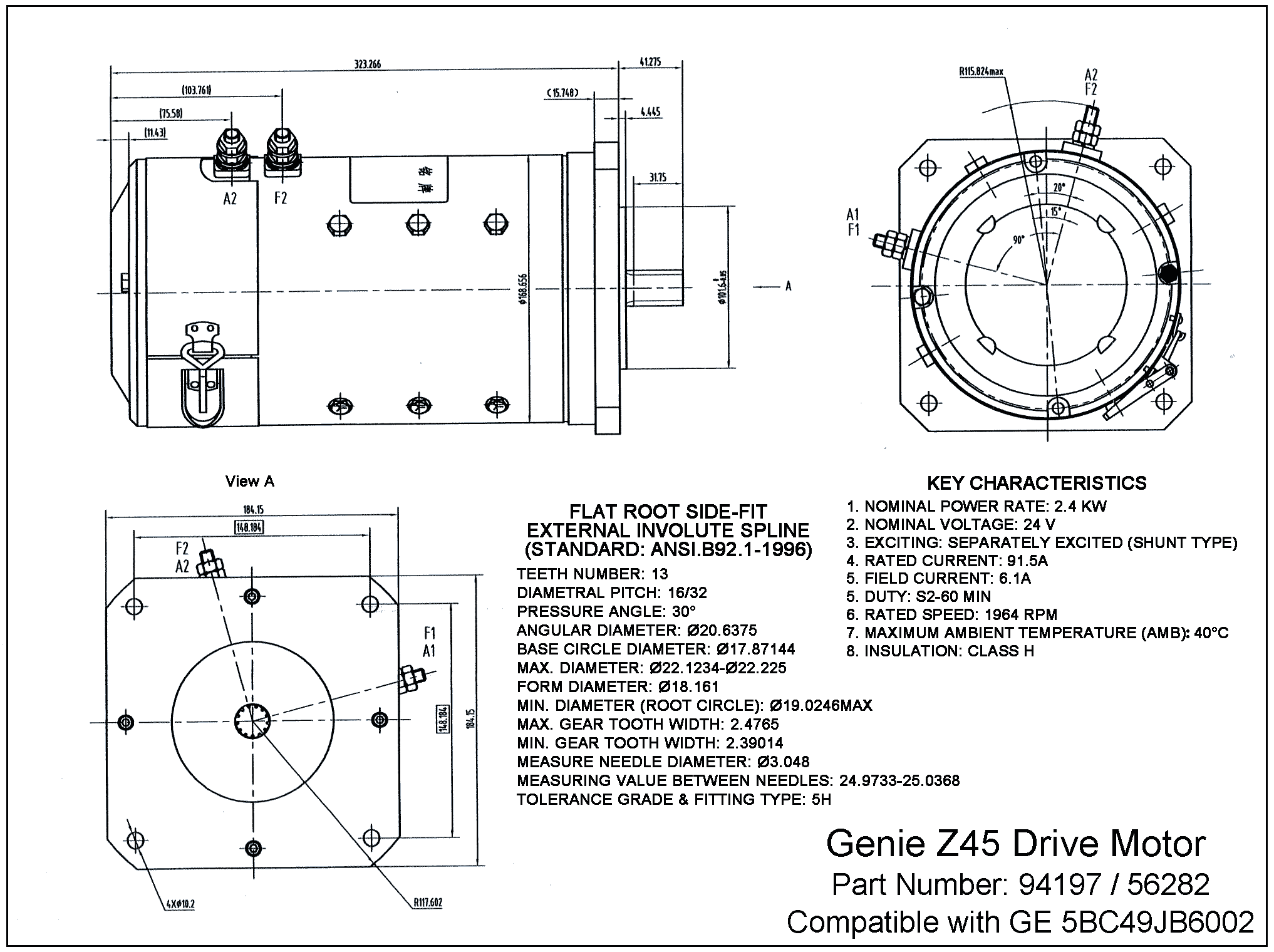

Diagram (unit: mm):
